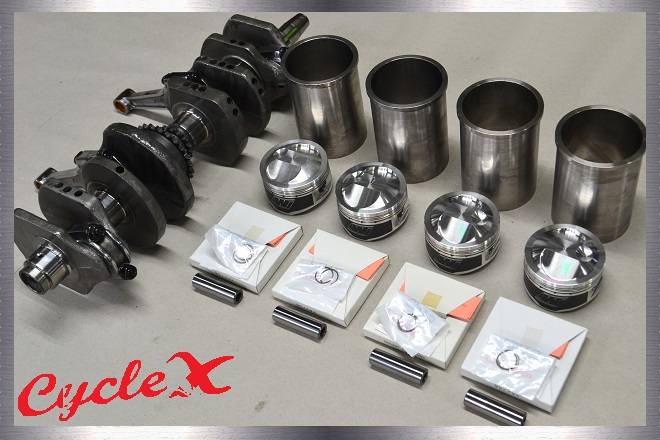

Cycle X 1062cc Stroker Kit

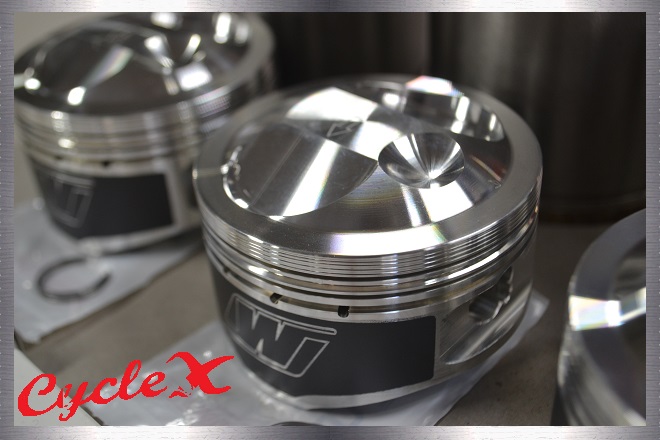

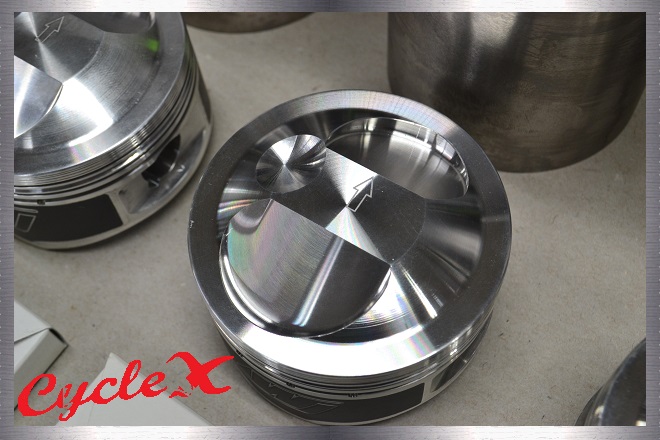

Pistons:
These 70mm diameter stroker piston kits are designed for 69mm or 70mm crankshafts (63mm is stock) and result in a 1060cc plus displacement. We feel the best way to build a big bore stroker motor is to move the wrist pin holes rather than use shorter connecting rods or spacer plates like people used in the 70's era. These world class pistons are 170 grams (bare weight) and feature our race proven Cycle X domes.


Question:
Are these pistons only for race applications only?
Not really. With the proper camshaft selection and combustion chamber modifications, these kits would make the ultimate "hot street" motor.

Cycle X CB750 F/K BB Stroker 2.756"
Clear: 0.00200 (0.051000mm)
Comp. Ht.: 0.8074
Bore: 2.7559
S525 CW15
2756XA

These kits include our Cycle X big bore sleeves which have become the clear favorite with engine builders. The sleeves are super dense and are some of the longest lasting sleeves in the industry. Most skilled machinists can hear the difference when boring and feel the difference when honing.

Cycle X connecting rods:
Our connecting rods are celebrating their 21st birthday and have a cult following world-wide.
Unbreakable ARP bolts included.

Crankshaft:
69mm Stroker crankshaft.
Best in the industry. Balanced and ready to go with connecting rods installed.



ENP-1062     $3,100.00

In stock, call to order (outright sale).

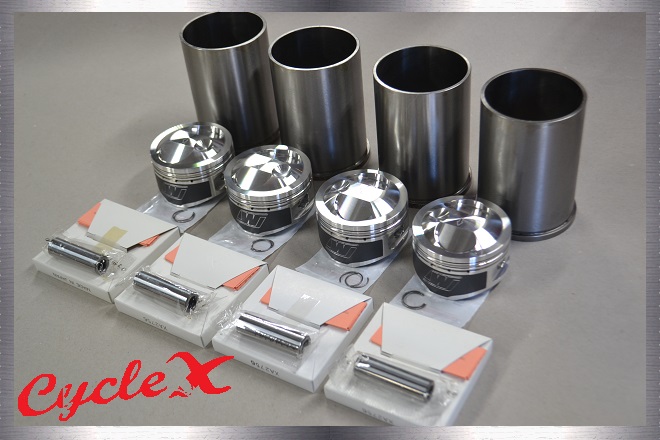

Honda CB750 Stroker Piston Sets

These 70mm diameter stroker piston kits are designed for 69mm or 70mm crankshafts (63mm is stock) and result in a 1060cc plus displacement. We feel the best way to build a big bore stroker motor is to move the wrist pin holes rather than use shorter connecting rods or spacer plates like people used in the 70's era. These world class pistons are 170 grams (bare weight) and feature our race proven Cycle X domes.

Question:
Are these pistons only for race applications only?
Not really. With the proper camshaft selection and combustion chamber modifications, these kits would make the ultimate "hot street" motor.

Cycle X CB750 F/K BB Stroker 2.756"
Clear: 0.00200 (0.051000mm)
Comp. Ht.: 0.8074
Bore: 2.7559
S525 CW15
2756XA

These kits include our Cycle X big bore sleeves which have become the clear favorite with engine builders. The sleeves are super dense and are some of the longest lasting sleeves in the industry. Most skilled machinists can hear the difference when boring and feel the difference when honing.


ENP-SPS     $989.95









If you're in need of tech help, refer to our pistons tech tips page.
