Cush Drives and Balancing



Refurbished Chain Wheel Cush Drives and Balancing

Note: Before we go any further with our explanation of cush drives and rebuilding cush drives, we must mention that Honda has not offered these parts for years. Secondly, most racers and people that are desperate for a fix will use "O" ring material sold in bulk and cut it to size. The trouble with "O" ring material sold in bulk is the fluctuation of the outside diameter and the rubber quality itself.

Note: It is not uncommon for the outside diameter of "O" material to fluctuate .030 or more.
Introducing the Cycle X Nitrile blended molded cush drive rubbers with 85 +/- Durometer hardness.



This addition to our refurbished Honda CB750 section is something that many people are aware of, but sometimes ignore. Meaning, the cush drive rubbers on the inside of the hub that are disintegrated about 50% of the time. Call it father time or they just lead a hard life.

So here is what we do...

We disassemble the cush drive and glass bead for inspection. The inner portion of the hub is drilled and tapped for screws to replace the long rivets installed by Honda to hold the drive together.

Before installing the new cush drive rubbers, we measure the amount of deflection or wobble the two sprockets have. Most hubs have different measurements. But, they generally deflect or wobble over 2mm measured by the outer tooth area, relying on the cush rubbers to keep things somewhat stable.

With that said, we surface the outer plates and machine the inner portion to reduce this deflection and wobble.

Before we install the specific length and material cush drive rubbers, we remove and install (2) new needle bearings on the inside.
The cush drive is now assembled and ready to go.

By the way...
Like crankshafts and alternator rotors, the cush drives and outer steel clutch hubs are not balanced.

As an option, we are also offering balancing the cush drive and outer steel clutch hub as a unit.

Because real life story's are sometimes better than written words. Our Honda cb750 vintage heavyweight super-bike road-racer had this same cush drive process done to it in 2012 and the motor is still together and running strong after all these years. The bike was sold and is still racing in Ireland.


Exchange basis:
Send your cush drive chain wheel (estimated time for repair is 24 to 48 hrs)
Parts and labor
Balancing cush drive and outer steel clutch hub.

Exchange basis only - Call to order (for labor to rebuild or for balancing)

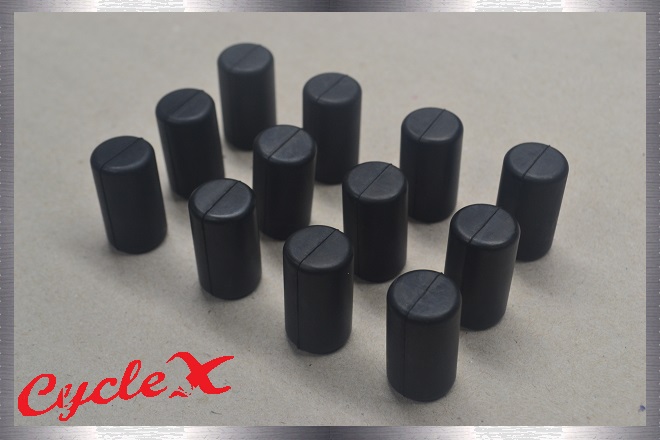

Cycle X Race Proven Chain Wheel Rubbers

You need these replacement cush drive "chain wheel" rubbers.

85+/- durometer, nitrile blended drive rubbers.



CD-001     $99.95

















Do-It-Yourself Chain Wheel Rebuild Kit

Parts include: Cycle X cush rubbers, screws and (2) inner cush drive bearings.



CD-002     $129.95

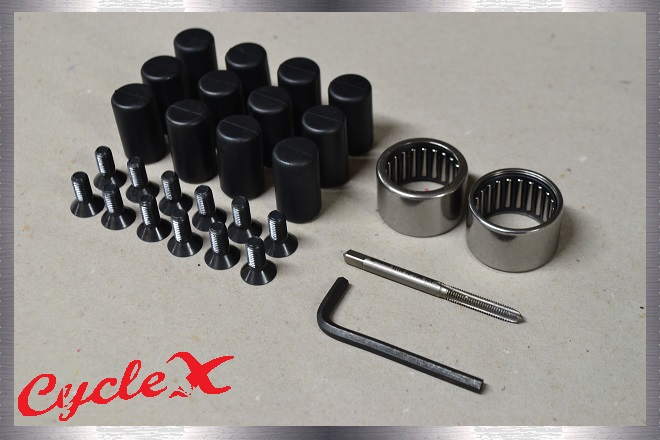

Do-it-Yourself Chain Wheel Kit

(Tap & wrench included)

The reason we are offering this kit with an American tap and wrench is because tapping the old rivet holes with a 6mm tap will not have enough thread depth.



CD-003     $139.95

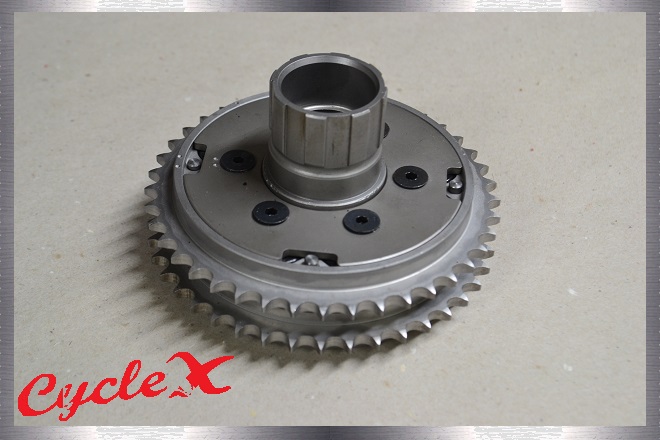

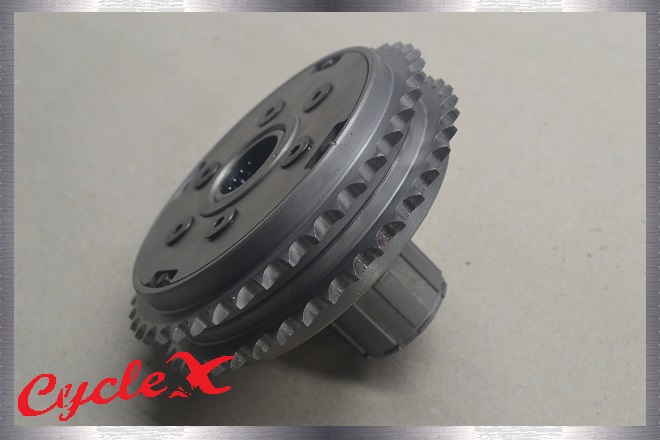

Refurbished Chain Wheel

We disassembled the cush drive and glass bead for inspection. The inner portion of the hub is drilled and tapped for screws to replace the long rivets installed by Honda to hold the drive together.

Before installing the new cush drive rubbers, we measure the amount of deflection or wobble the two sprockets have. Most hubs have different measurements. But, they generally deflect or wobble over 2mm measured by the outer tooth area, relying on the cush rubbers to keep things somewhat stable.
With that said, we surface the outer plates and machine the inner portion to reduce this deflection and wobble.

Before we install the specific length and material cush drive rubbers, we remove and install (2) new needle bearings on the inside.
The cush drive is now assembled and ready to go.

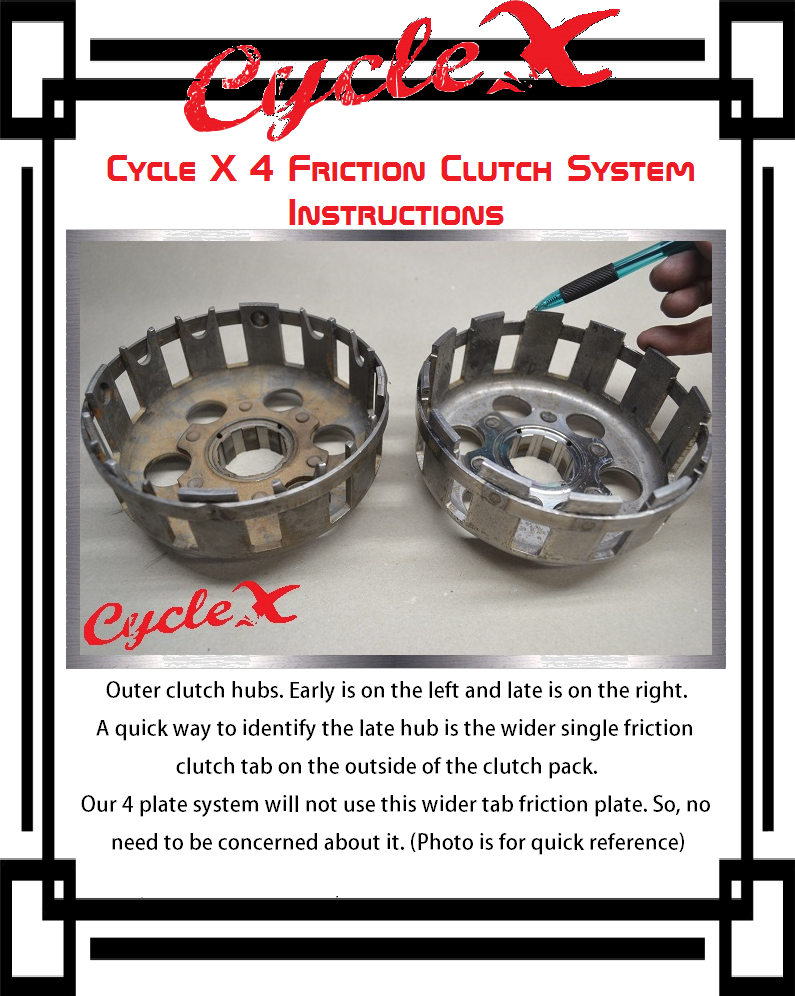

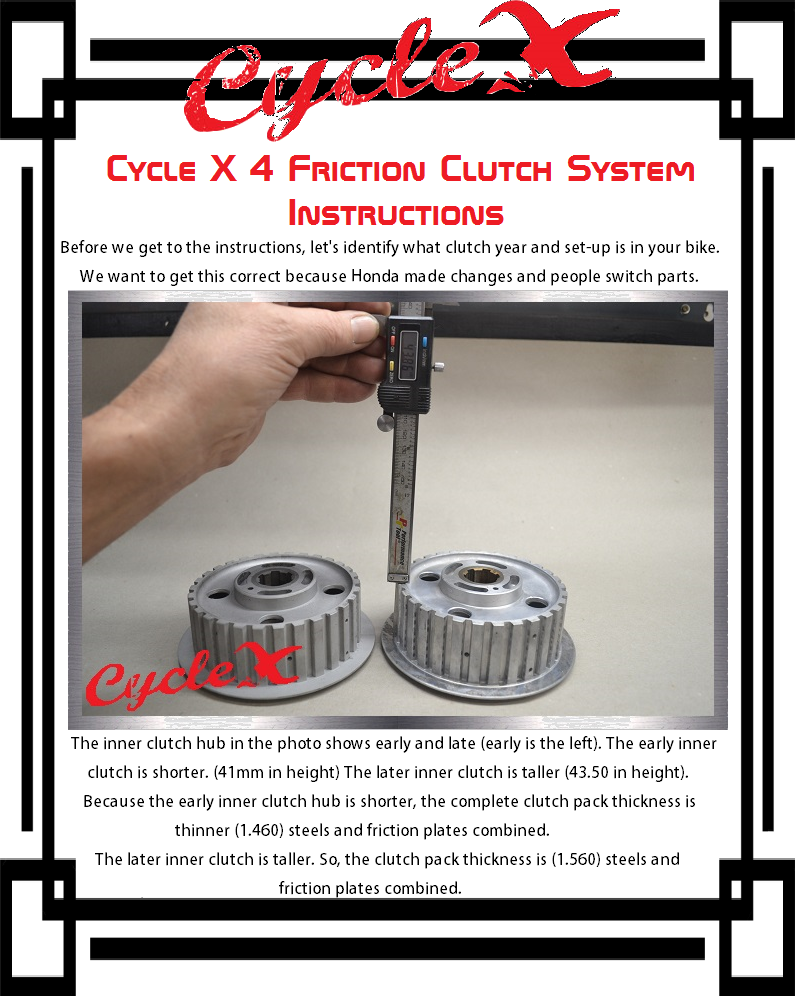

These instruction sheets will help you identify if you have an early or late.

Early is 1.460 clutch pack thickness. Late is 1.560 clutch pack thickness. (Steels and frictions combined thickness.)

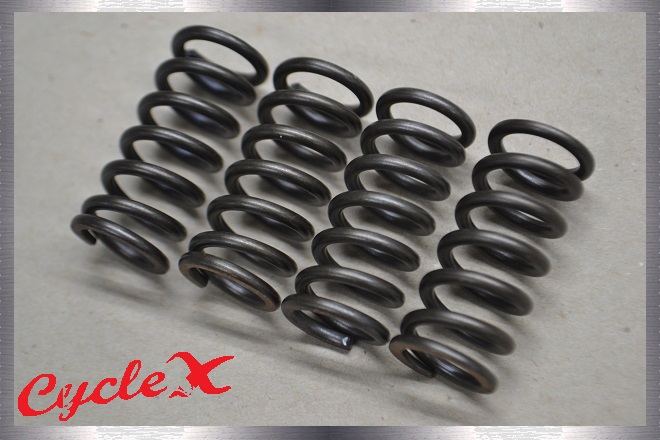

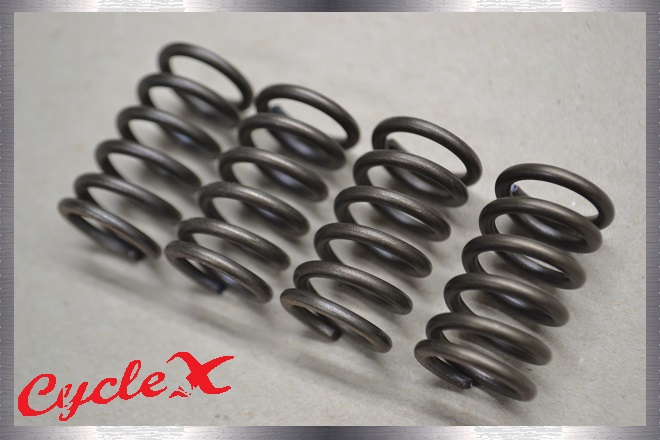

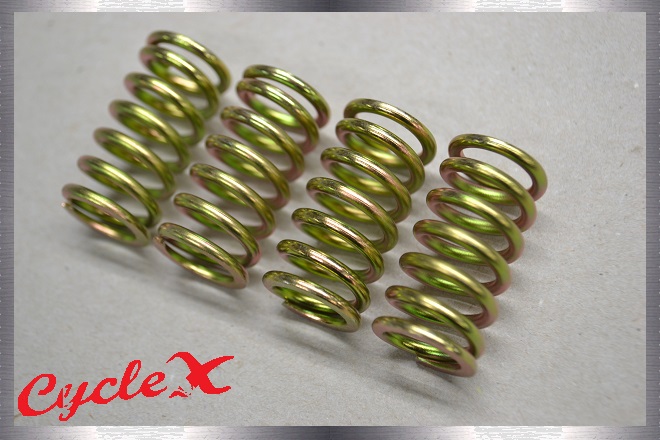

For more info on our springs pictured here, check out our clutch page.
(ENL-027, ENL-028, & ENL-029)

CD-004

$195.00 parts and labor. (Exchange)
$215.00 parts and labor. (No exchange. Specify early or late)

Call for exchange.


Early or late? (No exchange.)

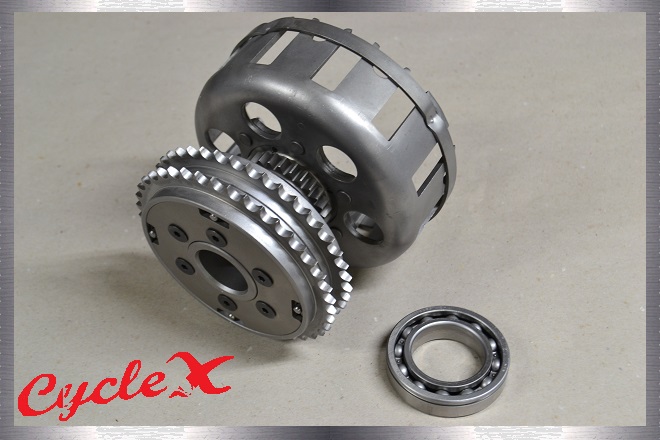

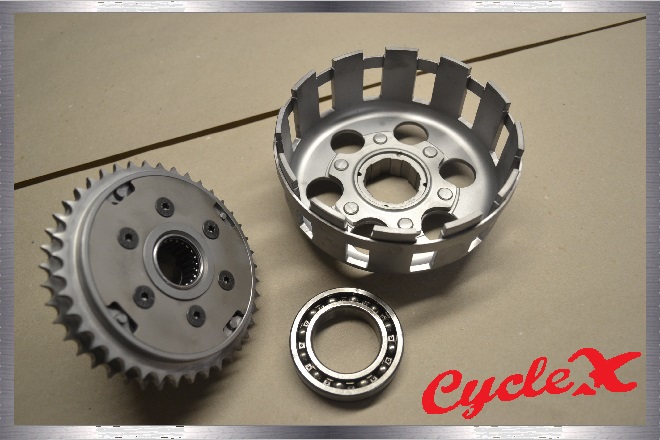

Rebuilt and Balanced Clutch/Chain Wheel Assembly

These clutch and chain wheel assemblies ready to bolt in. They include all the above mentioned parts and labor functions. They have been balanced to perfection. (The best)

These instruction sheets will help you identify if you have an early or late.

Early is 1.460 clutch pack thickness. Late is 1.560 clutch pack thickness. (Steels and frictions combined thickness.)




For more info on our springs pictured here, check out our clutch page.
(ENL-027, ENL-028, & ENL-029)

CD-005

$289.00 (Exchange)
$353.95 (No exchange. Specify early or late)

Note:
Large clutch hub "nick" bearing is an extra $44.95 if your exchange bearing is not usable.

Call for exchange.

Early or late?
(No exchange.)

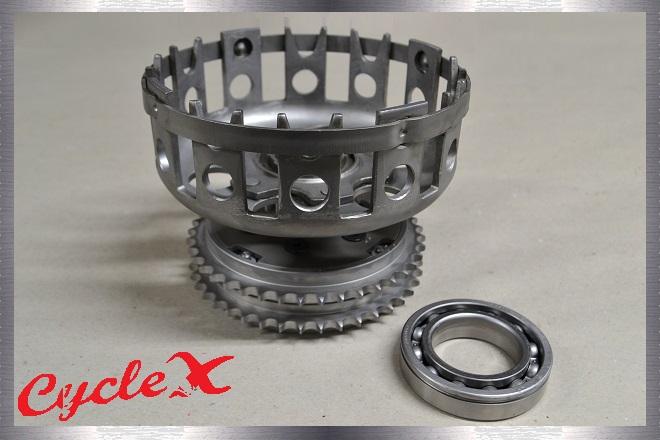

Rebuilt, Drilled and Balanced Clutch/Chain Wheel Assembly

These instruction sheets will help you identify if you have an early or late.

Early is 1.460 clutch pack thickness. Late is 1.560 clutch pack thickness. (Steels and frictions combined thickness.)




For more info on our springs pictured here, check out our clutch page.
(ENL-027, ENL-028, & ENL-029)

CD-006

$329.00 (Exchange)
$393.95 (No exchange. Specify early or late.)

Note:
Large clutch hub "nick" bearing is an extra $44.95 if your exchange bearing is not usable.

Call for exchange.

Early or late?
(No exchange.)

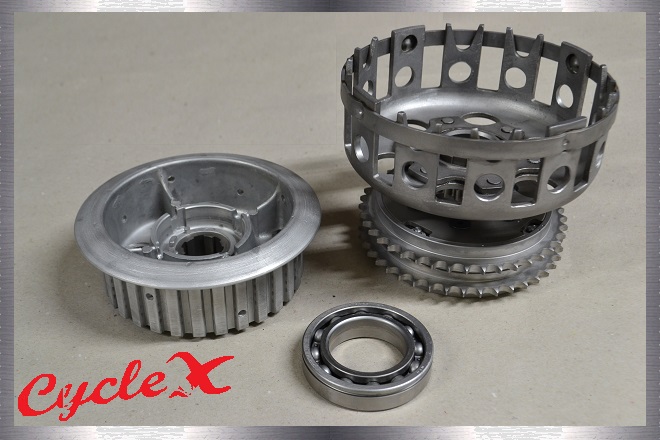

Rebuilt, Drilled and Balanced Clutch/Chain
Wheel Assembly with Drilled Inner Hub

Very complete refurbished clutch assembly with the best parts and upgrades.
Complete as shown.

These instruction sheets will help you identify if you have an early or late.

Early is 1.460 clutch pack thickness. Late is 1.560 clutch pack thickness. (Steels and frictions combined thickness.)




For more info on our springs pictured here, check out our clutch page.
(ENL-027, ENL-028, & ENL-029)

CD-007

$339.00 (Exchange)
$403.95 (No exchange. Specify early or late.)

Note:
Large clutch hub "nick" bearing is an extra $44.95 if your exchange bearing is not usable.

Call for exchange.

Early or late?
(No exchange.)

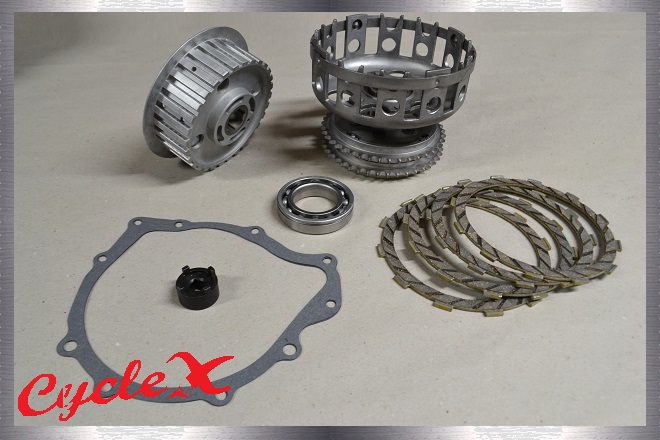

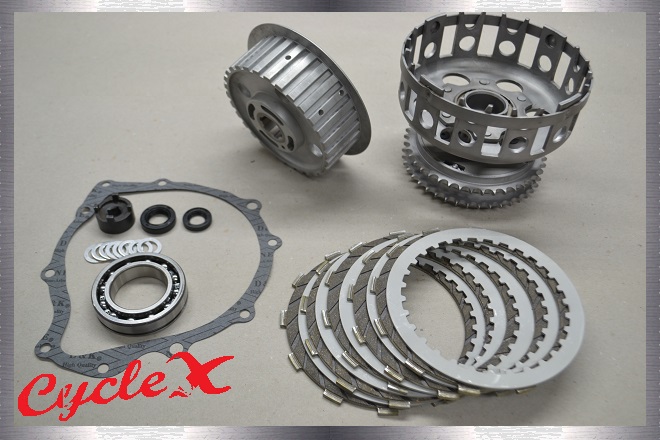

This Balanced Clutch Assembly, Refurbished Chain Wheel, Drilled Inner and Outer Hubs for added oiling is our most popular offering.

As shown in photo. Great stuff and race proven.

These instruction sheets will help you identify if you have an early or late.

Early is 1.460 clutch pack thickness. Late is 1.560 clutch pack thickness. (Steels and frictions combined thickness.)




For more info on our springs pictured here, check out our clutch page.
(ENL-027, ENL-028, & ENL-029)

CD-008

$379.00 (Exchange)
$443.95 (No exchange. Specify early or late.)

Note:
Large clutch hub "nick" bearing is an extra $44.95 if your exchange bearing is not usable.

Call for exchange.

Early or late?
(No exchange.)
































This very complete set is the best combo that money can buy.

Same as above, but with the innovative 2 or 4 plate system.

These instruction sheets will help you identify if you have an early or late.

Early is 1.460 clutch pack thickness. Late is 1.560 clutch pack thickness. (Steels and frictions combined thickness.)




For more info on our springs pictured here, check out our clutch page.
(ENL-027, ENL-028, & ENL-029)

CD-009

$479.00 (Exchange)
$543.95 (No exchange. Specify early or late, 2 plate or 4 plate.)

Note:
Large clutch hub "nick" bearing is an extra $44.95 if your exchange bearing is not usable.

Call for exchange.

2 plate or 4 plate?
Early or late?








































Highest Horsepower Clutch Combination.
This Balanced Clutch Assembly, Refurbished Chain Wheel, Drilled Inner and Outer Hubs for added oiling is our most popular offering.

This is the same combo that was used on our Vintage Heavyweight Super bike.


These instruction sheets will help you identify if you have an early or late.

Early is 1.460 clutch pack thickness. Late is 1.560 clutch pack thickness. (Steels and frictions combined thickness.)




For more info on our springs pictured here, check out our clutch page.
(ENL-027, ENL-028, & ENL-029)

CD-010

$440.00 (Exchange)
$504.95 (No exchange. Specify early or late.)

Note:
Large clutch hub "nick" bearing is an extra $44.95 if your exchange bearing is not usable. Call to order.

Call for exchange.

2 plate or 4 plate?
Early or late?

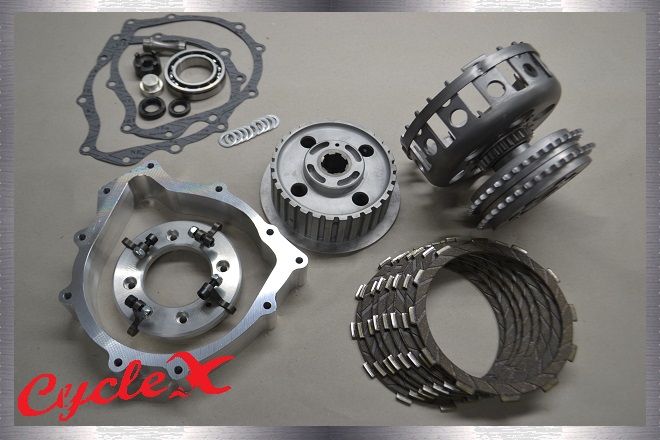

The Highest Level Horsepower Lock-Up Clutch, Rebuilt Wheel, Drilled Inner and Outer Clutch Hubs, Balanced to Perfection and Friction Discs

Our lock up clutch will increase pressure with RPM (Guaranteed not to slip).
Our refurbished parts and techniques are race proven and are the best money can buy.


Highest level clutch kit includes:
Billet spacer plate
Clutch plates
(2) Oil seals
Lock-up Pressure Plate (33% lighter)
(2) Gaskets
(2) Dowell pins
Extended clutch adjustor
Refurbished chain wheel.
Drilled inner and outer clutch hubs
Balanced to perfection
New "nick bearing" and misc shims, oil seals, tool, etc.

Oh yeah, and looks cool.

CD-011     $799.00

















The Ultimate High Horsepower Lock-Up Clutch

 Some high horsepower Honda's have a tendency to have clutch slippage in high gear. Most people will install heavy duty springs to overcome this problem, but creating a stiff feel at the lever. Heavy springs can make your clutch lose its nice, easy operation when leaving the stop and go light.

Our lock up clutch will increase pressure with RPM (Guaranteed not to slip)

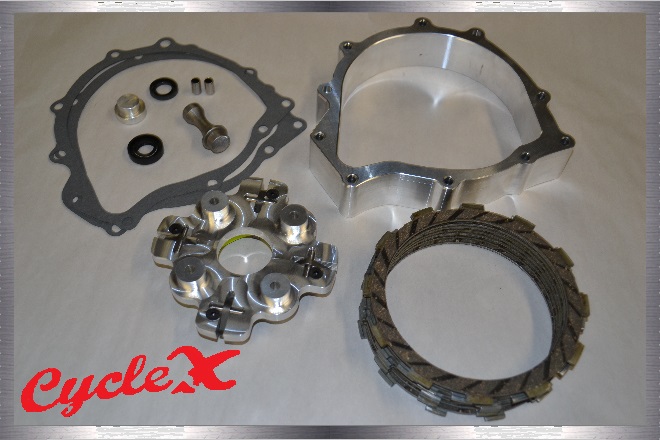

Lock up clutch kit includes:
Billet spacer plate
Clutch plates
(2) Oil seals
Lock-up Pressure Plate (33% lighter)
(2) Gaskets
(2) Dowell pins
Extended clutch adjustor
Oh yeah, and looks cool.

ENL-013     $449.00
