Honda CB750 Git Kits

Cycle X Git Kits were designed to help you with your high performance project at a reduced cost.
 Obviously, you may need other tidbits upon tear-down and evaluation.
If you need help with machine work, we can help. (Head work, boring, honing, crankshaft lightening and balancing, etc.)



10.5 to 1 JE 65mm 836cc Performance
Price Buster Kit #1

Price buster?

Yes. There was a piston price increase last month and another price increase is happening in July. Camshafts have been unavailable for months and months.

Guess what?

Cycle X is almost fully stocked with go fast goodies and have temporarily reduced the pricing in a kit form.

More good news! These kits offer the highest horsepower potential in the 65mm (836cc) world. Proven performance with some full race machines easily over 102 horsepower.

Is the kit street able and reliable? Yes, these are very high quality parts, much better than the olden days. The 10.5:1 kit is the most street friendly and has been used reliably for years. Oh yeah, they include a MLS head gasket and no leak valve cover gasket.

Bore - 2.559
Stroke - 2.342
Rod length - Stock
Comp height - .940
Piston weight - 167
Top ring - 1.0mm
2nd ring - 1.2mm
Oil ring - 2.8mm
Pins - 591-2050-10-52C
Locks - 591-040-MW
Rings - XC6500

INSTALLATION INFORMATION

ENGINE:  Honda CB750

GRIND # 518/519



INTAKE

EXHAUST

VALVE LASH (INCH):

.005"

.005"

VALVE LIFT (INCH):

0.385

0.330

DURATION: 290 300

DURATION @ .0.050":

264

272

LOBE CENTER:

107

110



INTAKE OPENS     25     BEFORE TDC

EXHAUST OPENS     66     BEFORE BDC

INTAKE CLOSES     59     AFTER BDC

EXHAUST CLOSES     26     AFTER TDC

VALVE TIMING IS CHECKED WITH ZERO VALVE LASH @ 0.050 INCHES OF VALVE LIFT.



$879.00      ENG-PB1

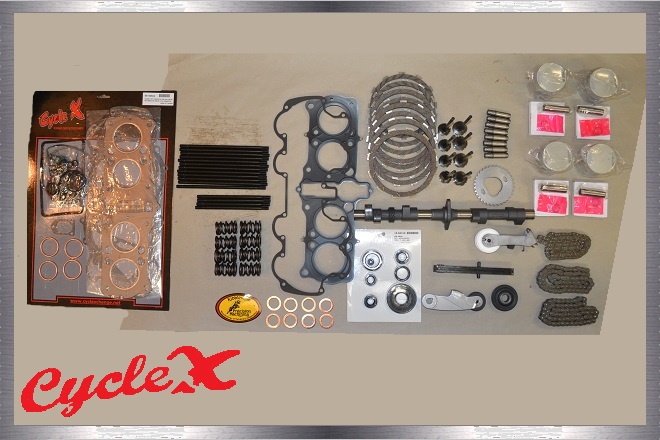

12.5 to 1 JE 65mm 836cc Performance
Price Buster Kit #2

This #2 kit is truly the highest level horsepower 65mm kit available with headwork, good carburetion, good ignition, exhaust and proper tuning. We have seen some "full race" machines approaching 114 horse power with great reliability.

Great products.

MLS head gasket and no leak valve cover gasket included.

Bore - 2.559
Stroke - 2.342
Rod length - Stock
Comp height - .940
Piston weight - 151
Top ring - 1.0mm
2nd ring - 1.2mm
Oil ring - 2.8mm
Pins - 591-2050-11-51C
Locks - 591-040-MW
Rings - XC6500

INSTALLATION INFORMATION

ENGINE:  Honda CB750

GRIND # 518/519



INTAKE

EXHAUST

VALVE LASH (INCH):

.005"

.005"

VALVE LIFT (INCH):

0.385

0.330

DURATION: 290 300

DURATION @ .0.050":

264

272

LOBE CENTER:

107

110



INTAKE OPENS     25     BEFORE TDC

EXHAUST OPENS     66     BEFORE BDC

INTAKE CLOSES     59     AFTER BDC

EXHAUST CLOSES     26     AFTER TDC

VALVE TIMING IS CHECKED WITH ZERO VALVE LASH @ 0.050 INCHES OF VALVE LIFT.



$899.00      ENG-PB2

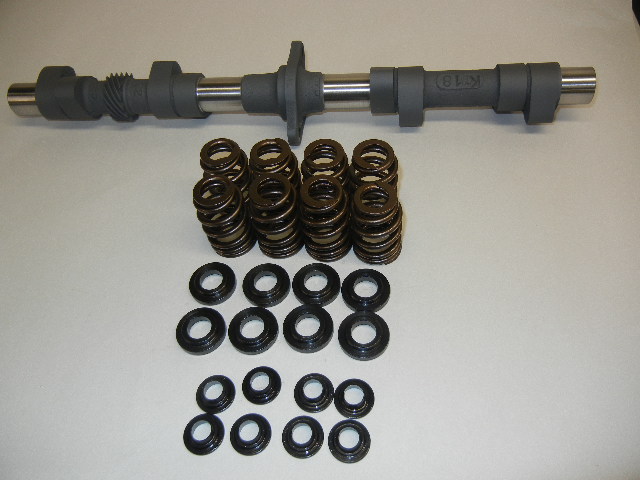

Honda CB750 Rev-Kit #1

Perfect kit for top ends that are in good condition.

Add these innovative new products for even more power.

- Cycle X Webcam CX-1 cam shaft.
- Cycle X bee-hive spring kit. (Super light, high RPM)

Retail   $518.95
Rev Kit
$468.95 (save $)     RK-001

Call to order.

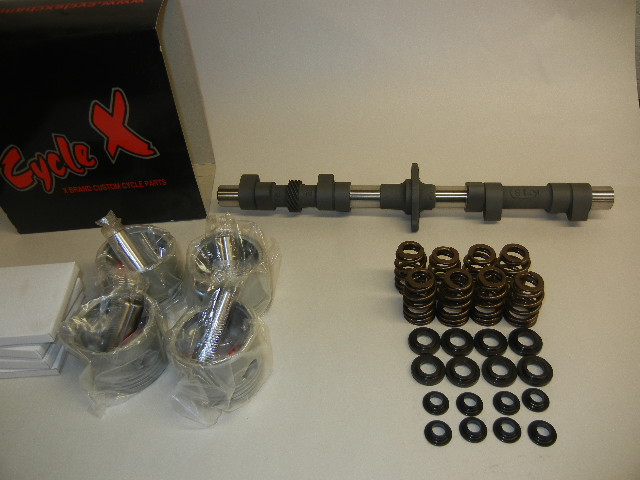

Honda CB750 Rev-Kit #2

Once again, the latest performance spring kit and cam.
But, with coated .50 over piston kit to freshen up your Honda project.

- Cycle X Webcam CX-1 cam shaft.
- Cycle X bee-hive spring kit (Rev to the moon)
- Cycle X coated .50 piston kit

Retail  $678.90
Rev Kit
$628.90 (save $)     RK-002

Upgrades:

Rev-Kit #2 with dome coated pistons - $668.90

Rev-Kit #2 with dome coated pistons and armor glide skirt coating - $728.90

Call to order.

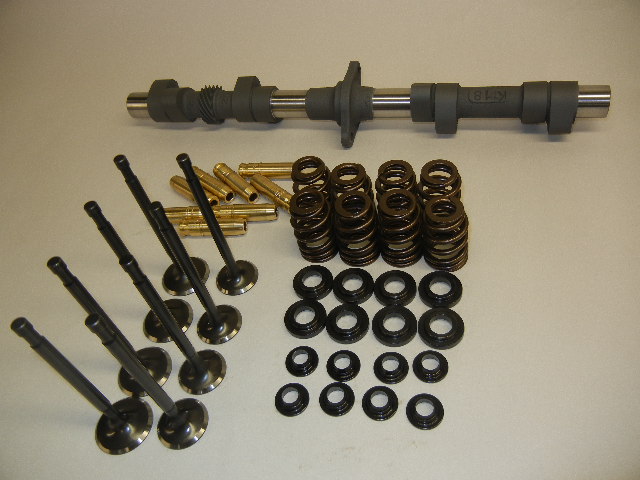

Honda CB750 Rev-Kit #3

Freshen up your go-fast project with new parts and new performance modifications.

- Cycle X Super flow valves.
- Cycle X valve guides (cast iron).
- Cycle X Webcam CX-1 camshaft.
- Cycle X Bee-hive performance spring kit.

Retail  $796.95
Rev Kit
$746.95 (save $)     RK-003

Call to order.

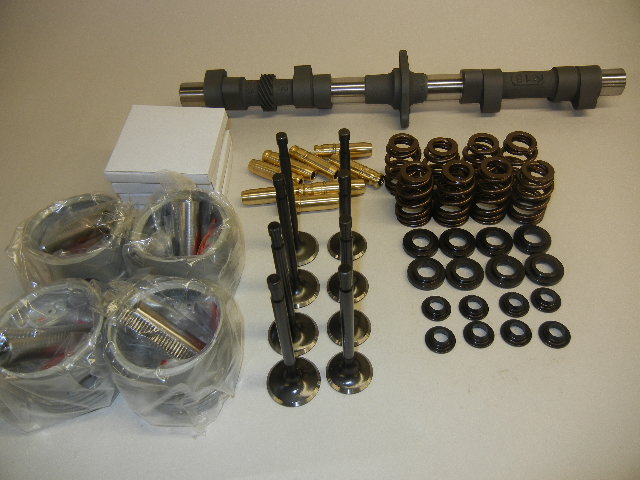

Honda CB750 Rev-Kit #4

All the good stuff in one kit!

- Cycle X super flow valve set.
- Cycle X valve guides (the best)
- Cycle X Webcam CX-1 camshaft.
- Cycle X Bee-hive performance spring kit.
- Cycle X coated .50 or piston kit.


Retail $956.90
Rev Kit
$906.90 (save $)     RK-004

Upgrades:

Rev-Kit #4 with dome coated pistons - $946.90

Rev-Kit #4 with dome coated pistons and armor glide skirt coating - $1,028.90

Call to order.





Honda CB750 "Budget" Rev-Kit #1

Perfect kit for top ends that are in good condition.

Add these innovative new products for even more power.

- Cycle X Webcam CX-1 cam shaft.
- Cycle X / Kibblewhite performance springs.

$320.00     RK-001B

Call to order.









Honda CB750 "Budget" Rev-Kit #2

Once again, the latest performance spring kit and cam.
But, with coated .50 over piston kit to freshen up your Honda project.

- Cycle X Webcam CX-1 cam shaft.
- Cycle X / Kibblewhite performance springs.
- Cycle X coated .50 piston kit

$459.85     RK-002B

Upgrades:

Rev-Kit #2 with dome coated pistons - $499.85

Rev-Kit #2 with dome coated pistons and armor glide skirt coating - $559.85

Call to order.



Honda CB750 "Budget" Rev-Kit #3

Freshen up your go-fast project with new parts and new performance modifications.

- Cycle X Super flow valves.
- Cycle X valve guides (cast iron).
- Cycle X Webcam CX-1 camshaft.
- Cycle X / Kibblewhite performance springs.

$577.70     RK-003B

Call to order.










Honda CB750 "Budget" Rev-Kit #4

All the good stuff in one kit!

- Cycle X super flow valve set.
- Cycle X valve guides (the best)
- Cycle X Webcam CX-1 camshaft.
- Cycle X / Kibblewhite performance springs.
- Cycle X coated .50 piston kit.


$737.85     RK-004B

Upgrades:

Rev-Kit #4 with dome coated pistons - $777.85

Rev-Kit #4 with dome coated pistons and armor glide skirt coating - $837.85

Call to order.

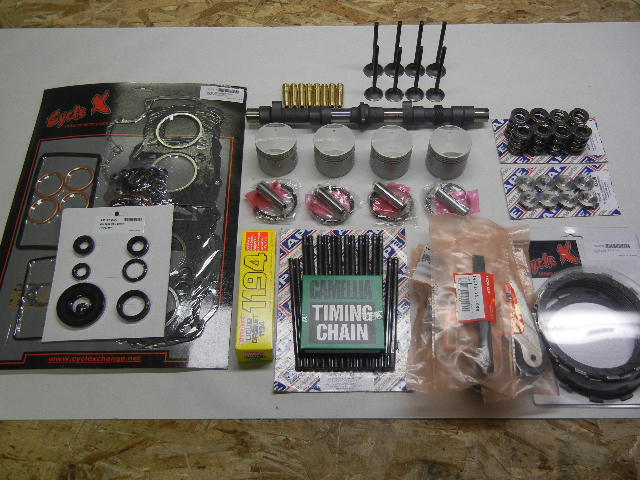

Cycle X Honda CB750 1st Over Piston Git Kit #1

Product Description:

This Honda CB750 Git Kit includes: (69'-78')

-0.50 Pistons ........... OEM style with piston coating. (Hardener and friction)
-Clutch Plates ........ Many racers around the world prefer our friction plates.
-Heavy Duty Springs ..... Kibblewhite performance springs.
-Cryo Treated Cam Chain ................... Wearable item that needs replacement.
-Heavy Duty Cylinder Studs ....... The best in the industry. (Check tech page)
-Camshaft CX1 ..............Drop-in performance cam. (Big difference from stock)
-Valve Set  ..................... Stainless with nitride coating.
-Valve Guides ................ Kibblewhite cast iron guides. (The best)
-Gasket Set .................... Complete gasket set with upgrades mentioned below.
- MLS Head Gasket and No Leak Valve Cover Gasket Upgrade. (See gasket tech page)
-Oil Seal Set  .................. You need these.
-Cryo Treated Primary Chains ............... Another wearable item that needs to be replaced.
-Primary Chain Tensioner .... Discontinued from Honda. (Our version is better anyway)
-Cam Chain Slider ...................... Wearable item.
-Cam Chain Roller ...................... Wearable item.
-Cam Chain Roller Assembly ...... Wearable item.
-Adjustable Cam Chain Sprocket ... Chains stretch. You can readjust your cam timing back to the previous setting after X amount of miles.

Note:
This Git Kit package is the same items we use when rebuilding mild / hot street motors. With racing carbs, good ignition and good exhaust systems, we have seen about 70 horsepower with this kit. By the way, Honda CB750's average about 50 horse power. (Not 65 like advertized)


Note:
Our Honda CB750 F2 connecting rod bolts would be a good idea. ($64.00)
Balanced crankshaft and alternator rotor (Way out of balance from the factory) (Machine shop page)
Under-cut transmission ... No possibility of jumping gear.  (transmission page)






Retail Value = $1,604.45
ENG-GIT1  =  $1,370.95

Call for ordering/availability.

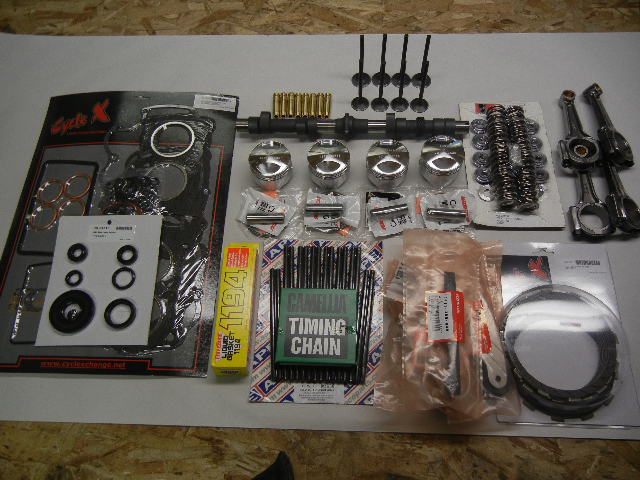

Cycle X Honda CB750 836 Piston Git Kit #2

Product Description:

This Honda CB750 Git Kit includes: (69'-78')

-Wiseco 836cc Piston Kit .... Forged 10.25 compression ratio.
-Cycle X Super Rods ........  With free ARP bolts!
-Clutch Plates ........ Many racers around the world prefer our friction plates.
-Heavy Duty Springs ..... Kibblewhite performance springs.
-Cryo Treated Cam Chain ................... Wearable item that needs replacement.
-Heavy Duty Cylinder Studs ....... The best in the industry. (Check tech page)
-Camshaft CX1, CX2, CX3, KHD CX1 ..............Drop-in performance cams.
-Valve Set  ..................... Stainless with nitride coating.
-Valve Guides ................ Kibblewhite cast iron guides. (The best)
-Gasket Set .................... Complete gasket set with upgrades mentioned below.
- MLS Head gasket and No Leak Valve Cover Gasket Upgrade. (See gasket tech page)
-Oil Seal Set  .................. You need these.
-Cryo Treated Primary Chains ............... Another wearable item that needs to be replaced.
-Primary Chain Tensioner .... Discontinued from Honda. (Our version is better anyway)
-Cam Chain Slider ...................... Wearable item.
-Cam Chain Roller ...................... Wearable item.
-Cam Chain Roller Assembly ...... Wearable item.
-Adjustable Cam Chain Sprocket ... Chains stretch. You can readjust your cam timing back to the previous setting after X amount of miles.


Retail value = $2,594.40
ENG-GIT2 = $2,360.95

Upgrades:
Upgraded substitutes at additional costs:

Heavy Duty Cylinder Stud Nuts ........................... $55.95.

Heavy Duty Primary Chains ................................ $149.00.
Heavy Duty Cryo Primary Chains ........................ $170.00
Heavy Duty Cam Chains ...................................... $100.00.
Heavy Duty Cryo Cam Chains ............................. $120.00.

Note:
Bigger cam shaft profiles will need higher compression ratio piston kits.

Upgrades:
Wiseco 12 1/2 Compression Ratio Piston Kit ....................... $119.00.
CX3, CX4, CX7 Camshafts choices will be great for the 12 1/2 Piston Kits.

Bee-Hive Valve Springs (Perfect for larger cam profile) ....... $239.00

Balanced crankshaft and alternator rotor (Way out of balance from the factory) (Machine shop page)
Undercut transmission ... No possibility of jumping gear. (Transmission page)



Call for ordering/availability.

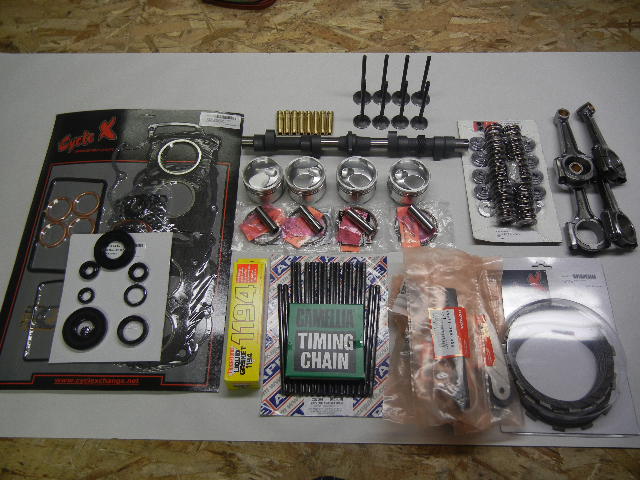

Cycle X Honda CB750 915cc Piston Git Kit #3

Product Description:

This Honda CB750 Git Kit includes: (69'-78')

-Wiseco 915cc Piston Kit and Sleeve Kit .... Forged 10.25 compression ratio.
-Cycle X Super Rods ........ ARP bolts included for racing.
-Clutch Plates ........ Many racers around the world prefer our friction plates.
-Heavy Duty Springs ..... Kibblewhite performance springs.
-Cryo Treated Cam Chain ................ Wearable item that needs replacement.
-Heavy Duty Cylinder Studs ....... The best in the industry. (Check tech page)
-Camshaft CX1, CX2, CX3, KHD CX1, CX7 ..............Drop-in performance cam.
-Valve Set  ..................... Stainless with nitride coating.
-Valve Guides ................ Kibblewhite cast iron guides. (The best)
-Gasket Set .................... Complete gasket set with upgrades mentioned below.
- MLS Head Gasket and No Leak Valve Cover Gasket Upgrade. (See gasket tech page)
-Oil Seal Set  .................. You need these.
-Cryo Treated Primary Chains ............... Another wearable item that needs to be replaced.
-Primary Chain Tensioner .... Discontinued from Honda (Our version is better anyway)
-Cam Chain Slider ...................... Wearable item.
-Cam Chain Roller ...................... Wearable item.
-Cam Chain Roller Assembly ...... Wearable item.
-Adjustable Cam Chain Sprocket ... Chains stretch. You can readjust your cam timing back to the previous setting after X amount of miles.

Upgrades:
Upgraded substitutes at additional costs:

Heavy Duty Cylinder Stud Nuts ........................... $55.95.
Heavy Duty Primary Chains ................................ $149.00.
Heavy Duty Cryo Primary Chains ........................ $170.00
Heavy Duty Cam Chains ...................................... $100.00.
Heavy Duty Cryo Cam Chains ............................. $120.00.

Note:
Bigger cam shaft profiles will need higher compression ratio piston kits.

Upgrades:
Wiseco 12 1/2 915cc Compression Ratio Piston Kit ....................... $119.00.
CX3, CX4, CX7 Camshafts choices will be great for the 12 1/2 Piston Kits.

Bee-Hive Valve Springs (Perfect for larger cam profile) ....... $239.00

Lightened or balanced crankshaft and alternator rotor (Way out of balance from the factory) (Machine shop page)
Undercut transmission. No possibility of jumping gear. (Transmission page)



Retail Value = $2,843.45
ENG-GIT3 = $2,610.95



Call for ordering/availability.

Cycle X Honda CB750 915cc Piston Git Kit #4
"Super Kit"

NOTE: Picture not fully accurate of kit contents. Will be revised soon.

Product Description:

This Honda CB750 Git Kit includes: (69'-78')

-Wiseco 915cc Piston Kit and Sleeve Kit .... Forged 10.25 compression ratio with the best sleeves on the market.
-Cycle X ARP Super Rods ........ ARP bolts included for racing.
-Clutch Plates with Shims ........ Many racers around the world prefer our friction plates.
-Heavy Duty Bee-Hive Valve Springs ..... Kibblewhite performance springs with the benefits of the lightest spring combo in the industry.
-Titanium Valve Adjuster Jam Nuts .... Light weight valve trains are a must for performance applications.
-Cam Chain (Heavy Duty Cryo Treated) ............ The best cam chains. Period!
-Heavy Duty Cylinder Studs and Nut Combo ....... The best in the industry. (Check tech page)
-Camshaft CX1, CX2, CX3, KHD CX1, CX7 ............. Performance cams. Your choice.
-Valve Set  ..................... Stainless with nitride coating.
-Valve Guides ................ Kibblewhite cast iron guides. (The best)
-Gasket Set "Super Gaskets" .................... Complete "super" gasket set. Worlds best kit. (See gasket tech page)
-Oil Seal Set  .................. You need these.
-Primary Chains (Heavy Duty Cryo Treated Chains) .......... Able to handle the most aggressive riding styles and horsepower figures.
-Primary Chain Tensioner .... Discontinued from Honda (Our version is better anyway)
-Cam Chain Slider ...................... Wearable item.
-Cam Chain Roller ...................... Wearable item.
-Cam Chain Roller Assembly ...... Wearable item.
-Adjustable Cam Chain Sprocket ... Chains stretch. You can readjust your cam timing back to the previous setting after X amount of miles.


Note:
Bigger cam shaft profiles will need higher compression ratio piston kits.

Upgrades:
Wiseco 12 1/2 915cc Compression Ratio Piston Kit ....................... $119.00.
CX3, CX4, CX7 Camshafts choices will be great for the 12 1/2 Piston Kits.



Lightened or balanced crankshaft and alternator rotor (Way out of balance from the factory) (Machine shop page)
Undercut transmission. No possibility of jumping gear. (Transmission page)



Retail Value = $3,154.50
ENG-GIT4 = $2,920.95



Call for ordering/availability.



Honda CB750 "Bee Hive" 5mm Conversion Kit

This is the same 5mm conversion kit that has been used by top race teams but has been upgraded with "bee hive" valve springs for even more valve train weight reduction.

Kit includes:
Light weight intake valves (34mm oversize) - Light weight exhaust valves (STD size) - Intake guides and seals
-Exhaust guides and seals - Keepers and lash caps - Bee hive retainers
-Bee hive silicon springs - H.T. steel base washers and extra shims - Instructions

$949.95     ENV-BEEHIVE

Call for ordering/availability.







Honda CB750 5mm Conversion Kit

This complete 5mm racing conversion kit has been used by many of the top race teams for years.

Kit includes:
Light weight intake valves - Light weight exhaust valves - Intake guides and seals
-Exhaust guides and seals - Keepers and lash caps - Titanium retainers
-Chrome silicon springs - H.T. steel base washers and extra shims - Instructions

This kit retails for $1,199.95

ENV-018     Your Cycle X Price: $949.95      Cycle X Race Team Approved

Call for ordering/availability.









HOME

Refurbished

Machine Work & Services

Close Out

Honda Hot Rod Motors

Pistons

Gaskets

Git Kits

Cush Drives & Chain Wheels

Crankshafts & Connecting Rods

Valve Train

Transmissions

Camshafts

Honda CB750 F2 Parts

Engine Chains

Clutches

Cylinder Studs

Carb Systems

Wheels & Accessories

Polishing, Chroming, & Black Chroming

Miscellaneous Parts

Rocker Arms

Tech Tips

Apparel & Accessories

Cam Chain / Primary Chain Tensioner

A 3.99% customer service charge is applied to all phone orders.

If ordering via phone, please also provide the part # of any products you are interested in for faster and more accurate service.

If you encounter a (rare) broken button as you're trying to add parts to your cart (going to PayPal summary instead of your cart or not opening PayPal at all) or anything else of concern, please call us to report it. We'll try to have it fixed for your convenience within the next 5-10 minutes. Afterwards, refresh the page and try again.

NOTE: As of July 1st, 2018, an extended goods and services tax (GST) has been applied to all Australian consumers buying overseas, charging an extra 10% in taxes to us with each purchase. To ensure that you can continue to purchase from us in Australia and we can provide our parts at our usual lower cost, please contact us at the email below if interested in any particular parts so that we can make a special shipping arrangement for you.



It is the sole and exclusive responsibility of the purchaser to determine the suitability of any part, product or work for his or her use.
The purchaser shall assume all legal, personal injury risk and liability and all other obligations, duties and risks therewith.
There is no warranty on High Performance products.

Click to go back to Engine Parts page

Cycle X Global Headquarters

6246 US Hwy 51 South

Hazelhurst, WI 54531

Phone: 715-356-7346

Email: hotrodcyclex@gmail.com



Hit Counter
