Rather than call this a tech page, lets call this a useful "tid-bits" page.
We do not see any reason to talk about Hondas timelines and changes they made unless its useful.
We do not see any reason to copy and paste a bunch of tech articles about theories that do not pertain to the Honda cb750 engine.

Under heavy construction.
More to come



Testing, testing, and more testing.

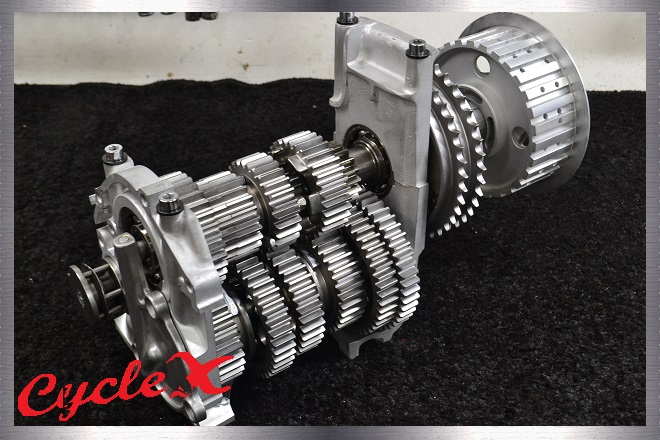

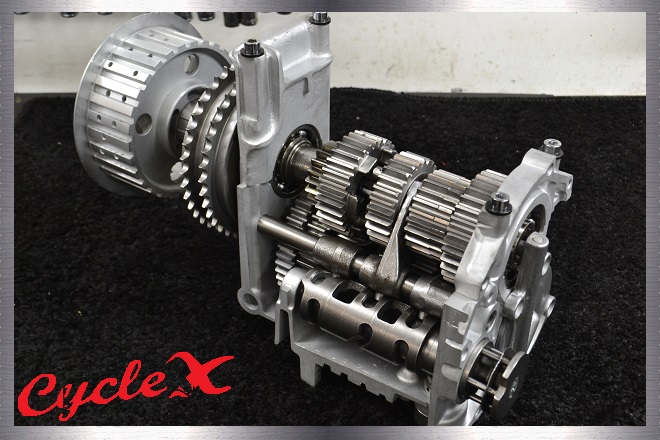

The above photo shows our transmission cut-a-way test stand for checking gear lash, different ratios and basic product development.
Thought you might like to see the test rig.





Transmissions

In order to have a good operating transmission, you will need a good operating clutch.
There should be no debate on the benefits of a under-cut transmission.
Statements like "It's harder to shift or get the transmission out of gear when shifting" only makes sense if the gears are under-cut with severe angles or the clutch is not operating correctly.



2nd Gear





4th Gear






3rd Gear









Honda CB750 Transmissions for Outright Sale (No Exchange)

These transmissions are refurbished with tender care. They are reconditioned with our pro-cut gear clusters and ready to go without an exchange.
The transmissions are assembled with 2nd, 3rd and 4th gear pro-cuts (1st gear undercuts are generally not needed for hot street life)
The "No-Exchange" transmissions listed have the mainshaft "nick" bearings included at no extra cost.



EARLY     $425.00     ENL-012EARLY
"Outright sale"

Call for availability.





LATE     $435.00     ENL-012LATE
"Outright sale"

Call for availability.












Cycle X Race Transmissions

Includes:
* Glass bead gear assemblies for inspection. (Also, makes them purdy)
* Magnaflux gears (Generally an additional cost elsewhere, not here)
* Undercut gears (A must for Hot-rod Honda SOHC's)

Note:
Send us your transmission. We will inspect it and send you back one of these race prepared transmissions.
If your transmission is bad, don't worry.
We have race transmissions in stock, ready to go.

Note:
The 2 mainshaft "nick" bearings can be installed at no extra cost, but the bearings have a additional cost of $39.99 per pair.


$385.00            ENL-011-PRO (Pro cut)
"Your transmission redone on exchange"

CALL TO ORDER



ENL-NICK     $39.99


(Nick bearings)

Cycle X Race Team Approved









Cycle X Race Cut Transmission Gear Clusters



OK...now there is no reason not to update your anciently designed Honda CB750 transmission with our Cycle X race cut transmission gear clusters.

These 2nd, 3rd and forth race-cut gear clusters are in stock and ready for assembly by the customer. (1st and 5th gears do not need race cutting) If you are uneasy with the assembly procedure, we will do it for you.

Note: Honda transmissions can be interchanged from year to year. So, send us your old gears for identification purposes and we will send you the race proven, race cut transmission clusters. Or see identification information below.

On Exchange Basis


Call To Order

ENL-RCTG-PRO     $289.00 (Pro cut)

** Click For Gear Identification **







2ND

$139.00 (Pro cut)

3RD

$139.00 (Pro cut)

4TH

$139.00 (Pro cut)

Cycle X Individual Race Gears

* Individual gear clusters
* Glass bead gear assemblies for inspection.
* Magnaflux gears
* Undercut gears
* Send yours for exchange





Note:

2nd and 3rd gear clusters are the non-dropout bushing style. Bushing is part of the female gear.

During the production years, Honda changed the tooth count on the 2nd and 4th gears.

Click on GEAR IDENTIFICATION to see if yours is an early or late 2nd and/or 4th gears.

On Exchange Basis

** Click For Gear Identification **






Final Drive #1

Used on high performance 1976 & under engine cases.
This is the preferred final drive shaft because the chain oiler hole has been eliminated from the factory. But, more importantly, the shaft is solid and will not break under extreme horsepower conditions. Inspected, blasted and new bearings have been installed.

ENL-FD1     $55.00

Final Drive #2

Used on 1976 & under engine cases.
Inspected, blasted and new bearings have been installed. The chain oiler has our alloy plug to eliminate the messy oiler.

ENL-FD2     $55.00



Final Drive #3

Used on 77-78 engine cases.
Inspected, blasted and new bearings have been installed.

ENL-FD3     $55.00














Cryogenically Treated Transmissions

These transmissions include Cryogenically treated main shaft, counter shaft and gears.
Our CycleX Pro-cut, Cryo treated and super finished transmissions are used by many top racers and considered to be the best available.

$129.00

Call to order.





Cryogenically Treated Kick Starter Shafts

The stock (OEM) kick starter shafts have been known to twist when kick starting high compression motors. Many customers have great results using these treated kick shafts.

$39.00

Exchange basis only. Call to order.







Super Finished Transmission Gears and
Misc. Engine Parts

Our tumbling and super-finishing technique have been used in our shop for decades.
Many other engine parts can benefit from super finishing.

Most parts can be super-finished in about 1 hour.
$129.00 per hour to complete the process.

Call to order.








Coated Transmissions

Slick shifting, super smooth anti-friction coated transmissions.
These transmissions are for you people that want every advantage in acceleration over the competition.
Kit includes:
Shift shaft
Shift drum
Shift forks
Main shaft
Counter shaft
All the gears as shown

Exchange basis
Call for more information and to order!

$295.00










The Highest Level!

These are the most complete motor drive train assemblies ever offered.
Not only are they completely refurbished, they are greatly improved with all the procedures and products mentioned below.

Transmission:

These transmissions are refurbished with tender care. They are reconditioned with our pro-cut gear clusters and ready to go.

Includes:
* Glass bead gear assemblies for inspection. (Also, makes them purdy)
* Magnaflux gears (Generally an additional cost elsewhere, not here)
* Pro-cut undercut gears (A must for Hot-rod Honda SOHC's)
Race proven.



Final drive #1:

Used on high performance 1976 & under engine cases.
This is the preferred final drive shaft because the chain oiler hole has been eliminated from the factory. But, more importantly, the shaft is solid and will not break under extreme horsepower conditions. Inspected, blasted and new bearings have been installed.



Transmission bearing set:

These 7 transmission bearings are Japanese steel bearings .
Note: Notice the larger output bearing (lower right) this bearing is used on later years and preferred by high-performance folks.



World class refurbished chain wheel and balanced clutch hub:

Note: Before we go any further with our explanation of cush drives and rebuilding cush drives, we must mention that Honda has not offered these parts for years. Secondly, most racers and people that are desperate for a fix will use "O" ring material sold in bulk and cut it to size. The trouble with "O" ring material sold in bulk is the fluctuation of the outside diameter and the rubber quality itself.

Note: It is not uncommon for the outside diameter of "O" material to fluctuate .030 or more.
Introducing the Cycle X Nitrile blended molded cush drive rubbers with 85 +/- Durometer hardness.



This addition to our refurbished Honda CB750 section is something that many people are aware of, but sometimes ignore. Meaning, the cush drive rubbers on the inside of the hub that are disintegrated about 50% of the time. Call it father time or they just lead a hard life.

So here is what we do...

We disassemble the cush drive and glass bead for inspection. The inner portion of the hub is drilled and tapped for screws to replace the long rivets installed by Honda to hold the drive together.

Before installing the new cush drive rubbers, we measure the amount of deflection or wobble the two sprockets have. Most hubs have different measurements. But, they generally deflect or wobble over 2mm measured by the outer tooth area, relying on the cush rubbers to keep things somewhat stable.

With that said, we surface the outer plates and machine the inner portion to reduce this deflection and wobble.

Before we install the specific length and material cush drive rubbers, we remove and install (2) new needle bearings on the inside.
The cush drive is now assembled and ready to go.

By the way...
Like crankshafts and alternator rotors, the cush drives and outer steel clutch hubs are not balanced.

As an option, we are also offering balancing the cush drive and outer steel clutch hub as a unit.

Because real life story's are sometimes better than written words. Our Honda cb750 vintage heavyweight super-bike road-racer had this same cush drive process done to it in 2012 and the motor is still together and running strong after all these years. The bike was sold and is still racing in Ireland.


$799.00

In stock, call to order.







If you're in need of tech help, refer to our transmission tech tips page.





Transmission Bearings



Transmission Bearing Set

These 7 transmission bearings are Japanese steel bearings .
Note: Notice the larger output bearing (lower right) this bearing is used on later years and preferred by high-performance folks.

ENL-SET1     $240.80






To be continued.
