Rack of 4 Carbs





Cody from Buffalo, NY (Instagram: @cfagan85) built his '79 Super Sport equipped with the DOHC version of these carbs (found on our DOHC page) plus richer needles and our DOHC 3 phase charging system. More pictures of Cody's Super Sport can be found on our customer page.

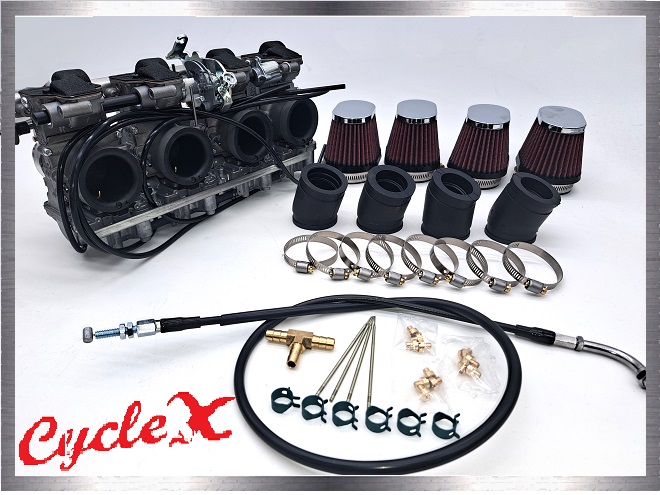

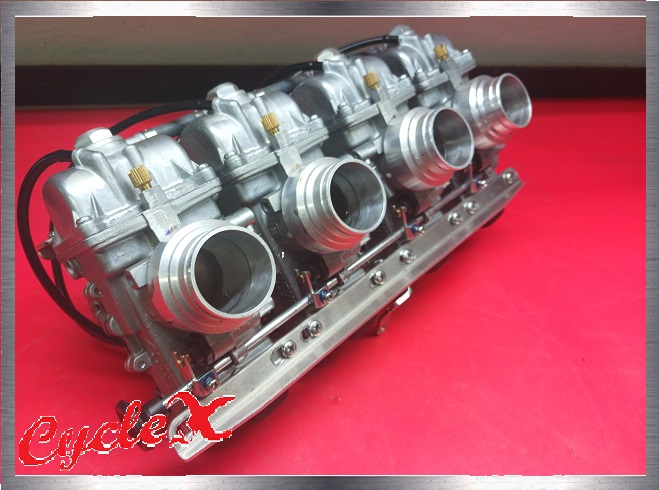

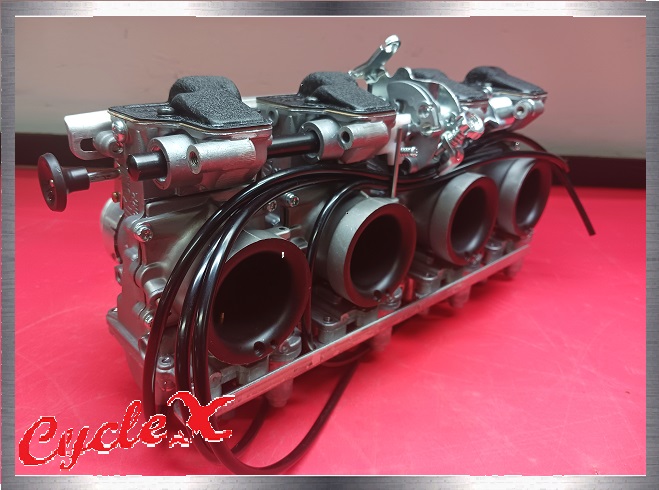

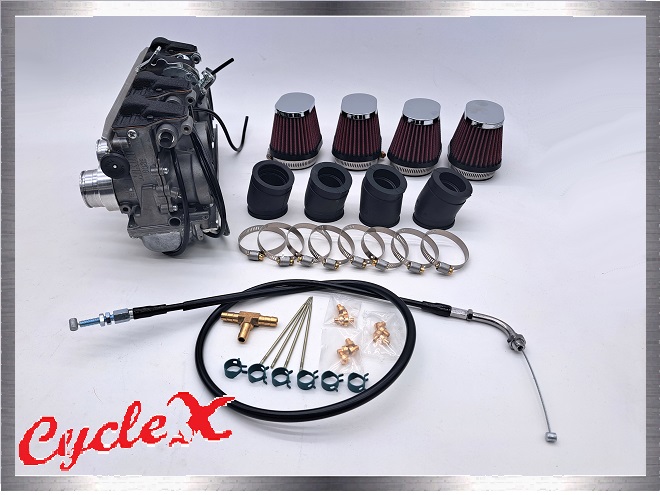

Cycle X Mikuni RS Carburetor Systems for Hot-Rod Honda's
These RS carburetors are spaced correctly to fit your Honda go-fast project.
These 34mm Mikuni's are what we use on big-bore, free breathing motors to "shock the world"

Designed for in-line four cylinder performance motorcycles, the Mikuni RS Series Radial Flat Slide Carburetors offer superior horsepower gains with their maximum flowing smoothbore induction tract and radial flat slide design. An Adjustable accelerator pump system helps to provide instant throttle response, particularly in the lower RPM range. The RS Series Carburetors feature a compact design which is 25% lighter than other performance Carburetors and uses readily available Mikuni jets.

Features of the RS Series Carburetors

-Adjustable Pump Adjust Screws. Sets ON and OFF operation of accelerator pump in relations to the throttle slide position.

-Throttle Return Spring. A choice of positioning pegs allow adjustment of spring tension.

-Idle Adjustment Screw. Controls engine idle speed.

-Adjustment Accelerator Pump. Squirts fuel into carburetor Venturi when throttle is opened to improve engine response.

-Starter System. Provides fuel enrichment for cold engine starting.

-Adjustable Pump Spray Nozzle. Shoots fuel directly into the intake tract for immediate engine response.

-Jet Needle Clip. Easy adjustment feature for quick adjustment.

-Flat Throttle Valve Design. Provides the strongest signal for precise and instantaneous throttle response.

-Float Bowl Vent. Allows atmospheric pressure into float bowl for fuel flow.

-Smooth Throttle Bore/Venturi. Produces the optimum air and fuel mixture flow at all RPM's.

-Genuine Mikuni Jets and Tuning Components. Provides for precise fuel metering.

-Pilot Air Jet. Use in conjunction with the Pilot Fuel Screw for tuning of mixture at idle to 1/4 throttle.

CA-000   $725.00     Call for more details and for fitments!




RS 34mm Mikuni 3/16 to 5/16 fuel filters.

Installing larger carburetors with 5/16 fuel spigots can be a great upgrade ... But most OEM fuel petcock spigots are 3/16 or 1/4 inch.

These 1/4 in and 5/16 out fuel filters should do the trick. Each filter comes with 3 feet of fuel line  (1 1/2 feet of 1/4" line and 1 1/2  feet of 5/16" line)

$29.00 per filter and fuel line. # RS-Line

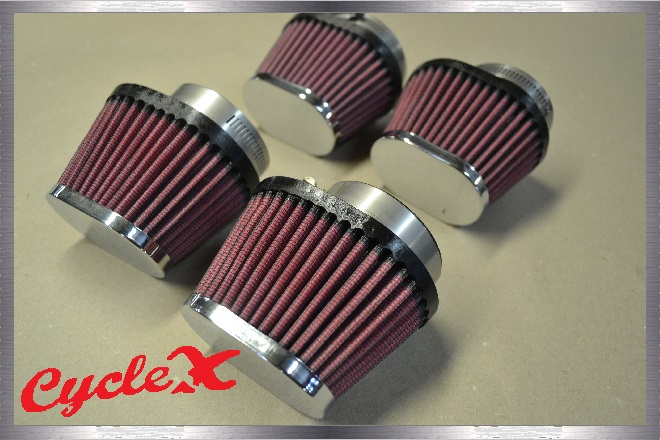

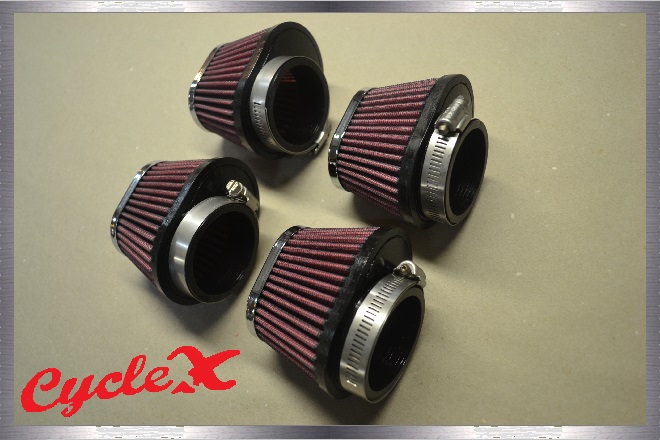

Mikuni RS 34mm Air Filters

Fit the Mikuni carbs above.







Throttle Cable Assembly for Mikuni RS Carbs

Fit the Mikuni carbs above.

CA-TCA     $54.74

Call for availability.





Cycle X Rebuilt Carb Program

NOTE: Currently not accepting rebuild requests at this time. Sorry for the inconvenience.

Basic Rebuild
 Disassemble to inspect. Ultrasonic cleaned. Reassemble using new float components and gaskets.
 Bench sync'd
Early (69-76) $250.00
 Late (77-78) $285.00


Rebuild with Jetting Modifications
Many folks are using modified air boxes, free flowing individual air filters and such. Due to the fact that jet kits are unavailable for these bikes, we
 needed to develop our own modifications to make these bikes run well. Simply, tell us motor mods, air cleaner selection, exhaust choice and
 we will adjust your carburetors accordingly. Disassemble to inspect. Ultrasonic cleaned. Reassemble using new float
 components and gaskets. Bench sync'd and jetting modifications.
 Early (69-76)  $280.00
 Late (77-78) $295.00

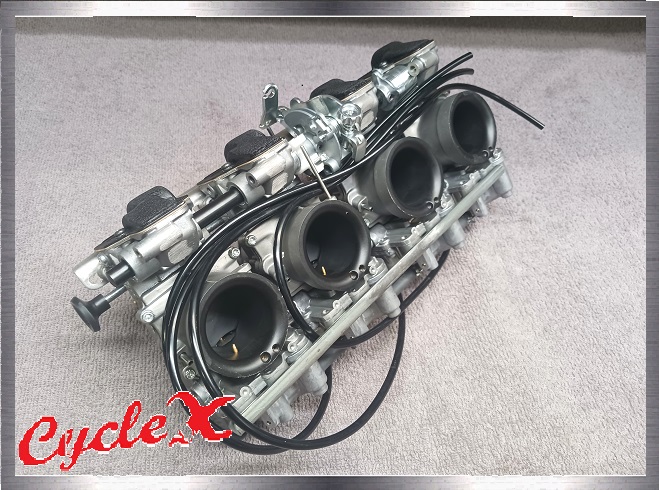

DOHC Carbs
Starting at $300.00, Call for estimate.

In some cases it could be very difficult to jet or modify carbs for spot-on performance when alterations are made, other than stock.
(Turning screws, raising or lowering needle clip positions or possible jet changes might be needed)

DOHC Carbs
Call for Pricing
Air cut out valves are $20.00 Each.


500/550 Carbs

Ultra Sonic Cleaning, New Gaskets, Replace Float Needle.

Basic Rebuild - $260

Rebuild w/ Jetting Modifications - $275





Machine Work & Services

Close Out

Honda Hot Rod Motors



Git Kits

Cush Drives & Chain Wheels

Crankshafts & Connecting Rods

Valve Train



Honda CB750 F2 Parts

Engine Chains


Cylinder Studs

Carb Systems

Wheels & Accessories

Polishing, Chroming, & Black Chroming

Miscellaneous Parts

Rocker Arms

Tech Tips

Apparel & Accessories

Cam Chain / Primary Chain Tensioner

A 3.99% customer service charge is applied to all phone orders.

If ordering via phone, please also provide the part # of any products you are interested in for faster and more accurate service.

If you encounter a (rare) broken button as you're trying to add parts to your cart (going to PayPal summary instead of your cart or not opening PayPal at all) or anything else of concern, please call us to report it. We'll try to have it fixed for your convenience within the next 5-10 minutes. Afterwards, refresh the page and try again.

NOTE: As of July 1st, 2018, an extended goods and services tax (GST) has been applied to all Australian consumers buying overseas, charging an extra 10% in taxes to us with each purchase. To ensure that you can continue to purchase from us in Australia and we can provide our parts at our usual lower cost, please contact us at the email below if interested in any particular parts so that we can make a special shipping arrangement for you.


It is the sole and exclusive responsibility of the purchaser to determine the suitability of any part, product or work for his or her use.
The purchaser shall assume all legal, personal injury risk and liability and all other obligations, duties and risks therewith.
There is no warranty on High Performance products.
