 V-Twin Products By Cycle X





1980harleysportster       1980harleysportster       1980harleysportster
1980harleysportster
   1980harleysportster

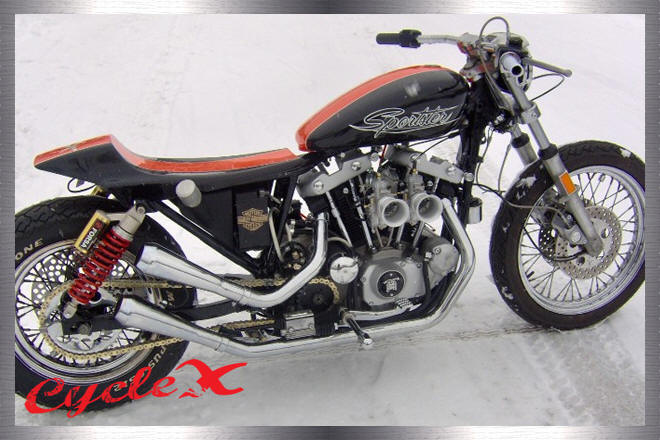

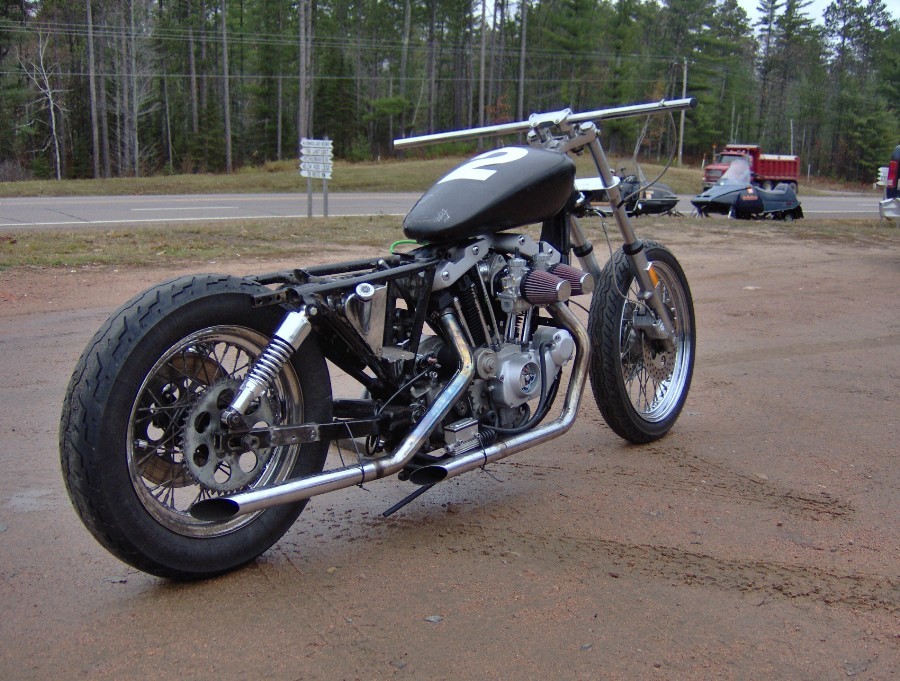

From tragic to magic

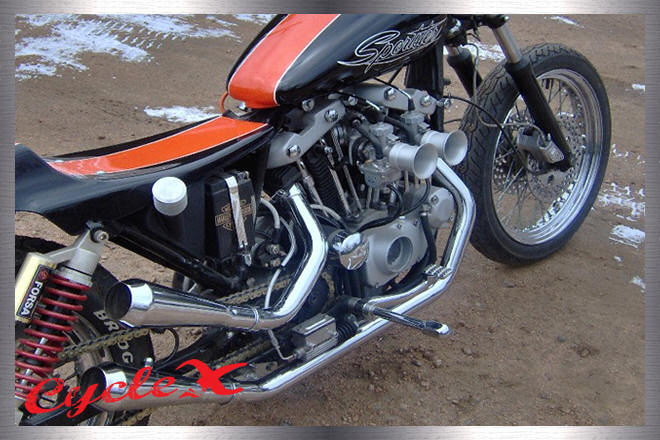

This 1980
Sportster was one of the ugliest bikes we have ever seen. ( when we bought it )
Here is the finished version.
4 inch extended swing arm.
Suzuki intruder gas tank.
Flat tracker tail piece.
Modified hard tail exhaust with reverse mega phone slip-ons.
Cycle X carburetor system.

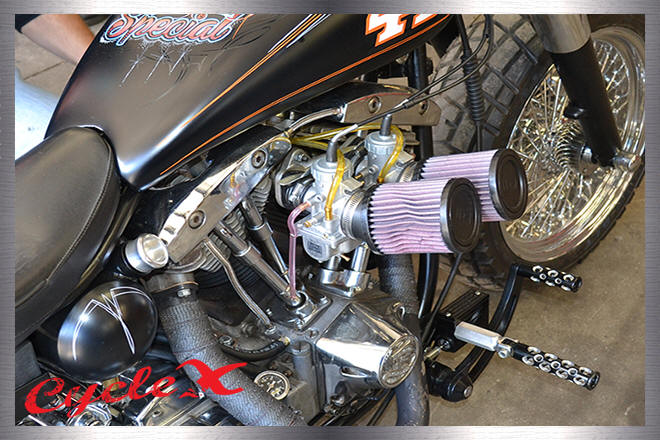

                                    Shovelhead (my bike )

1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead
                                                                        1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead1975harleyshovelhead

This bike was not built for show, but for some reason it wins shows ( coolness must beat refinement )

1975 Shovel
74ci
10 to 1 comp
Andrews BH grind
Jims power glide lifters
Crane pushrods
S&S heads
S&S cone cover
MSD ignition
Innovate tuning system
CycleX twin mikuni's
Baker 6 speed ( kicker)
Primo belt drive
Hydraulic clutch
FLT ( 1982) front end
3 1/2 by 17 inch front sun rim
5 1/4 by 17 inch rear rim  ( gold anodized )
Sport bike tires ( Pirelli speed demons )
520 chain
Vintage Alphabet exhaust

We would like to install a bigger motor, so if anyone would like to purchase this motor ( give a call someday)
800 miles on it

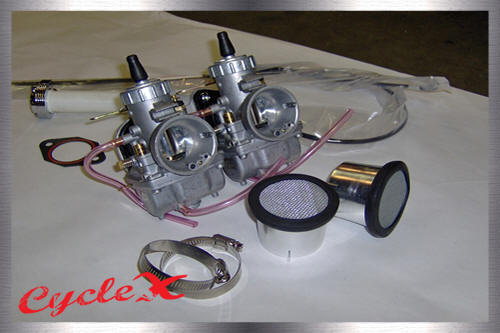

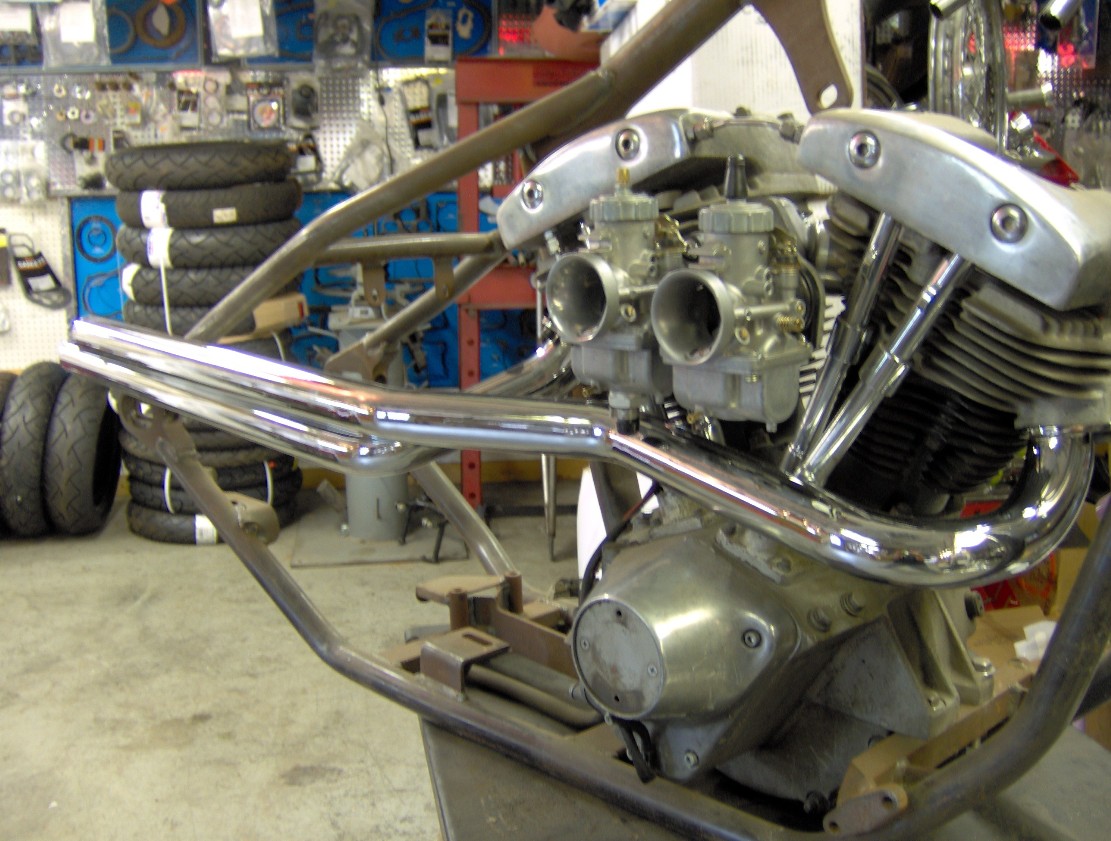

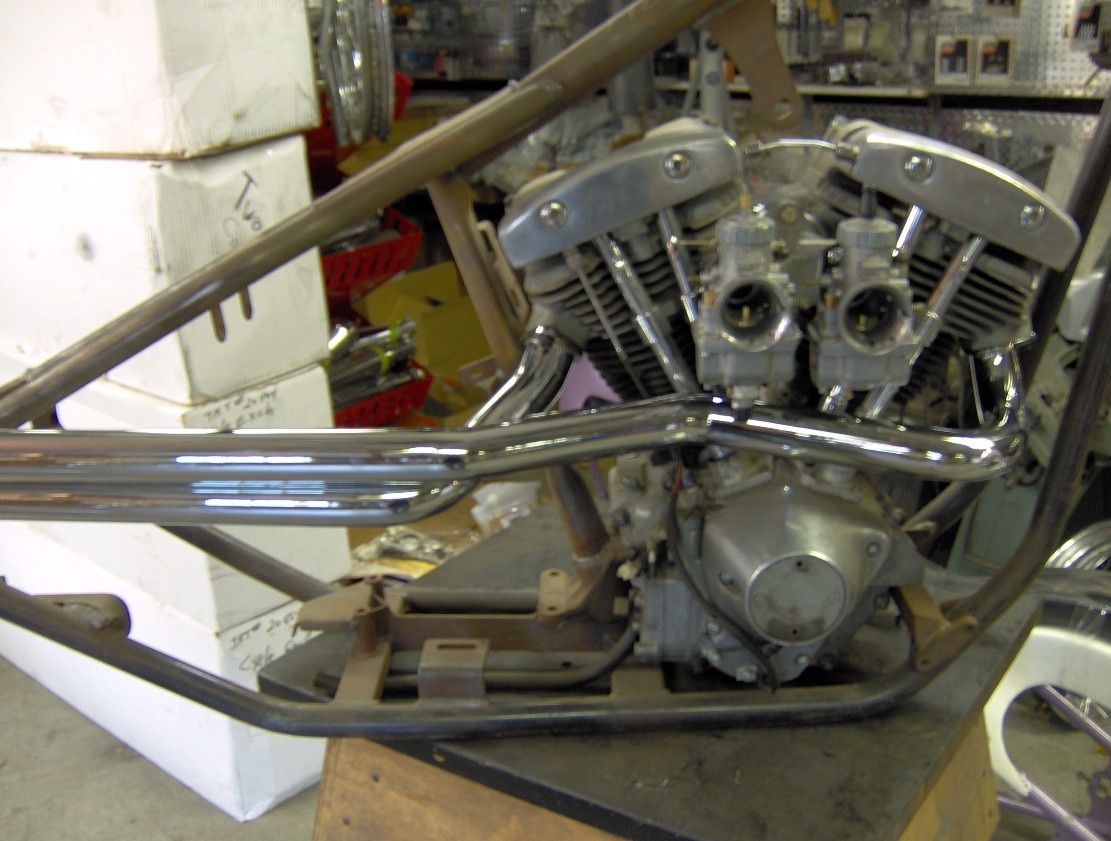

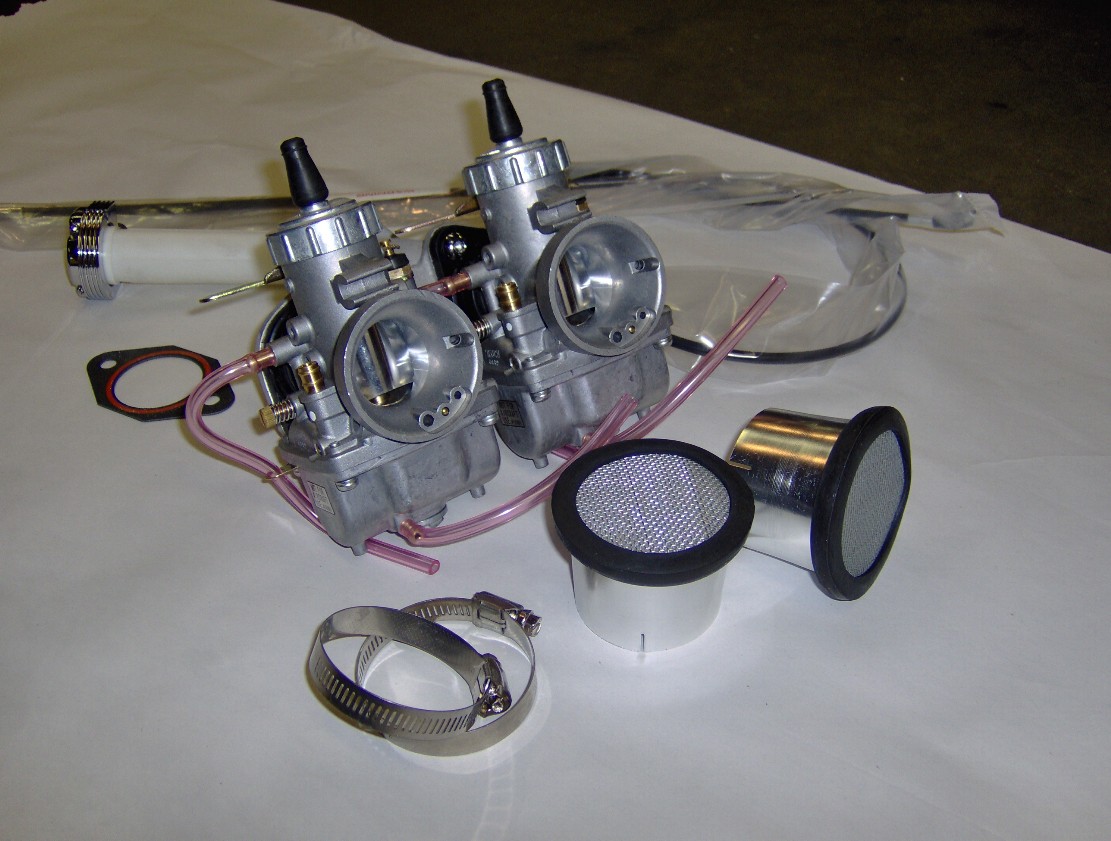

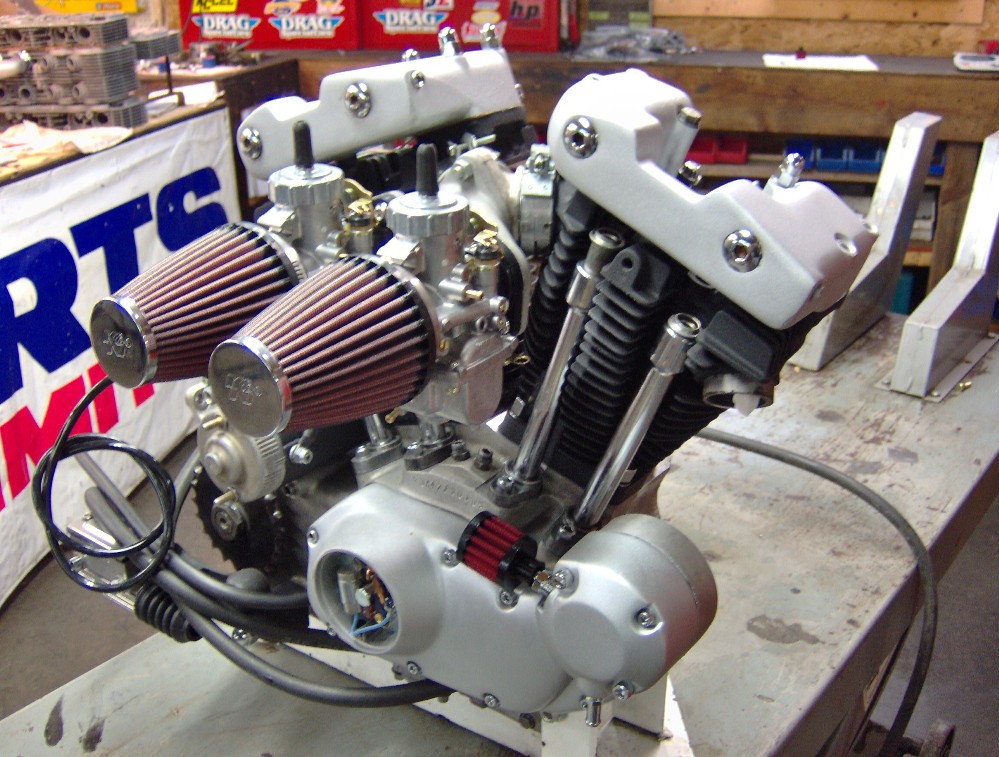

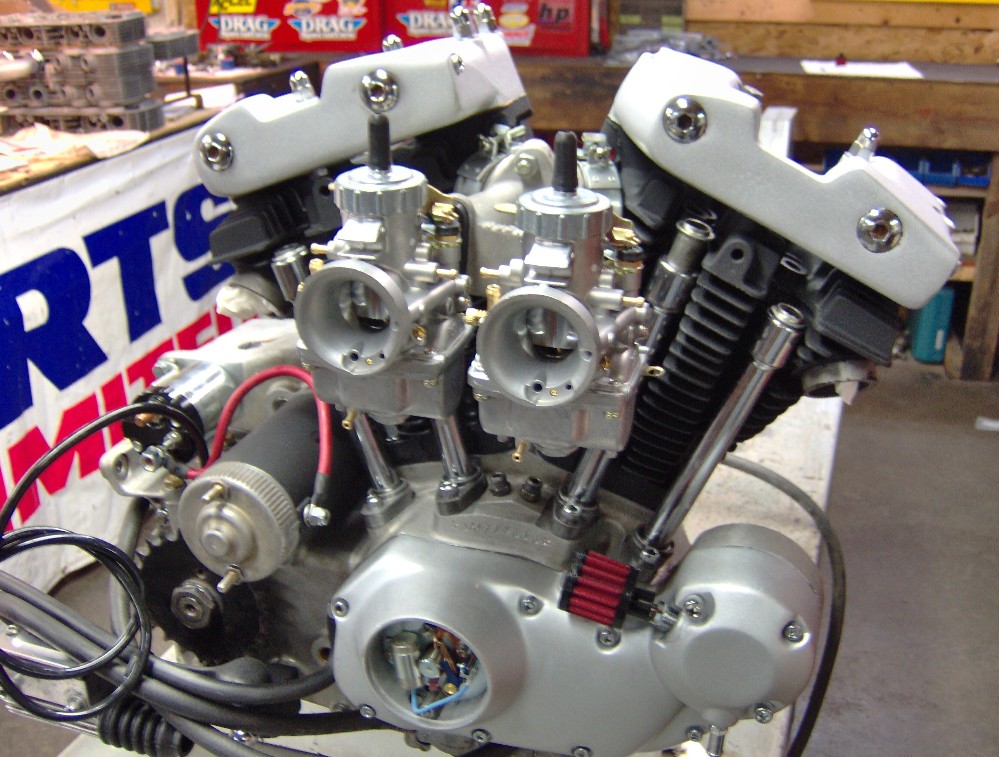

   Cycle X  Harley Carb Kit





  harleytwincarbs           harleytwincarbs

harleytwincarbs        harleytwincarbs        harleytwincarbs      harleytwincarbs        harleytwincarbs       harleytwincarbs       harleytwincarbs

                                                        Retro + Petro Cool


harleytwincarbs

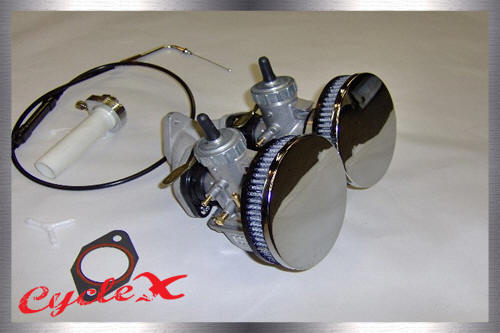

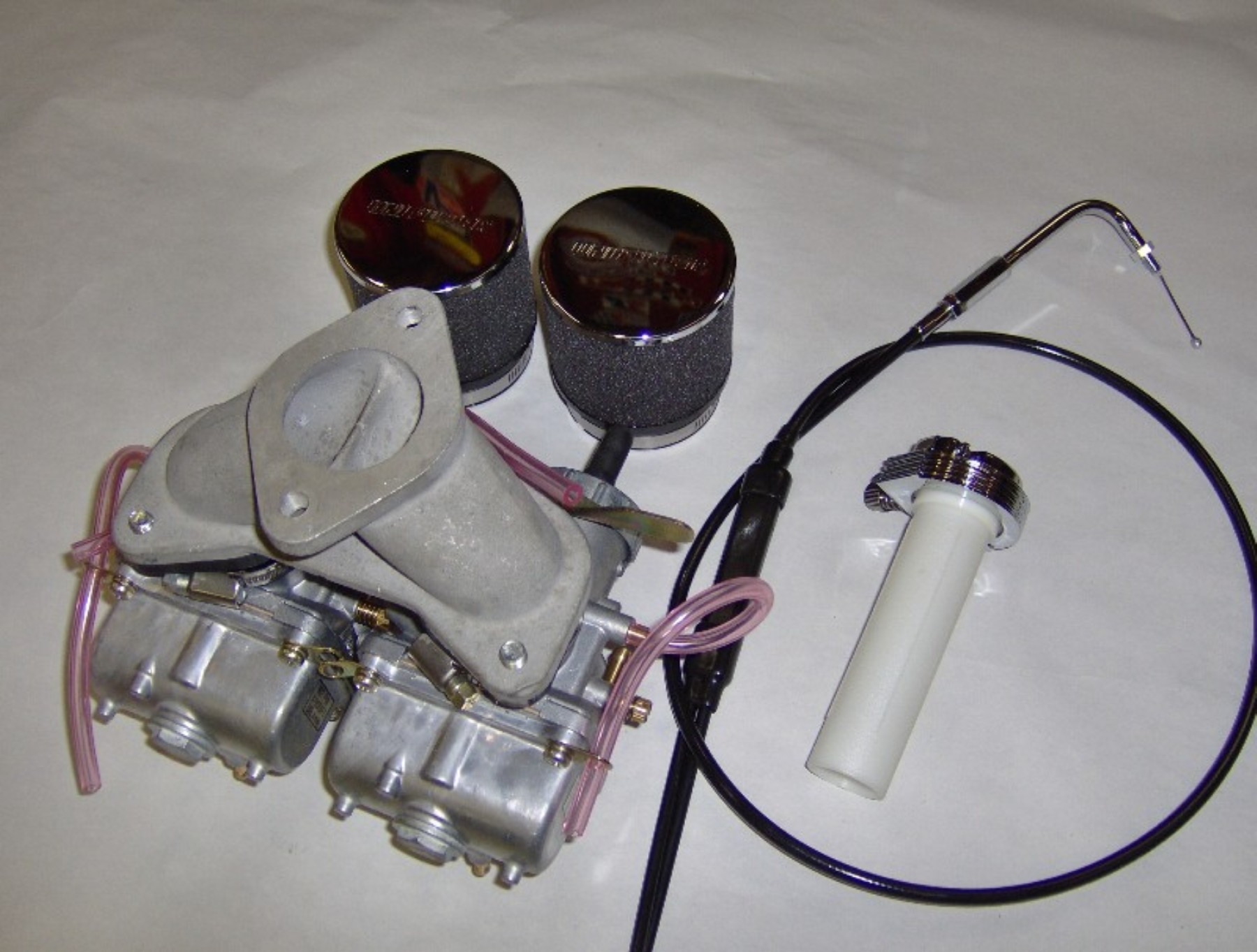

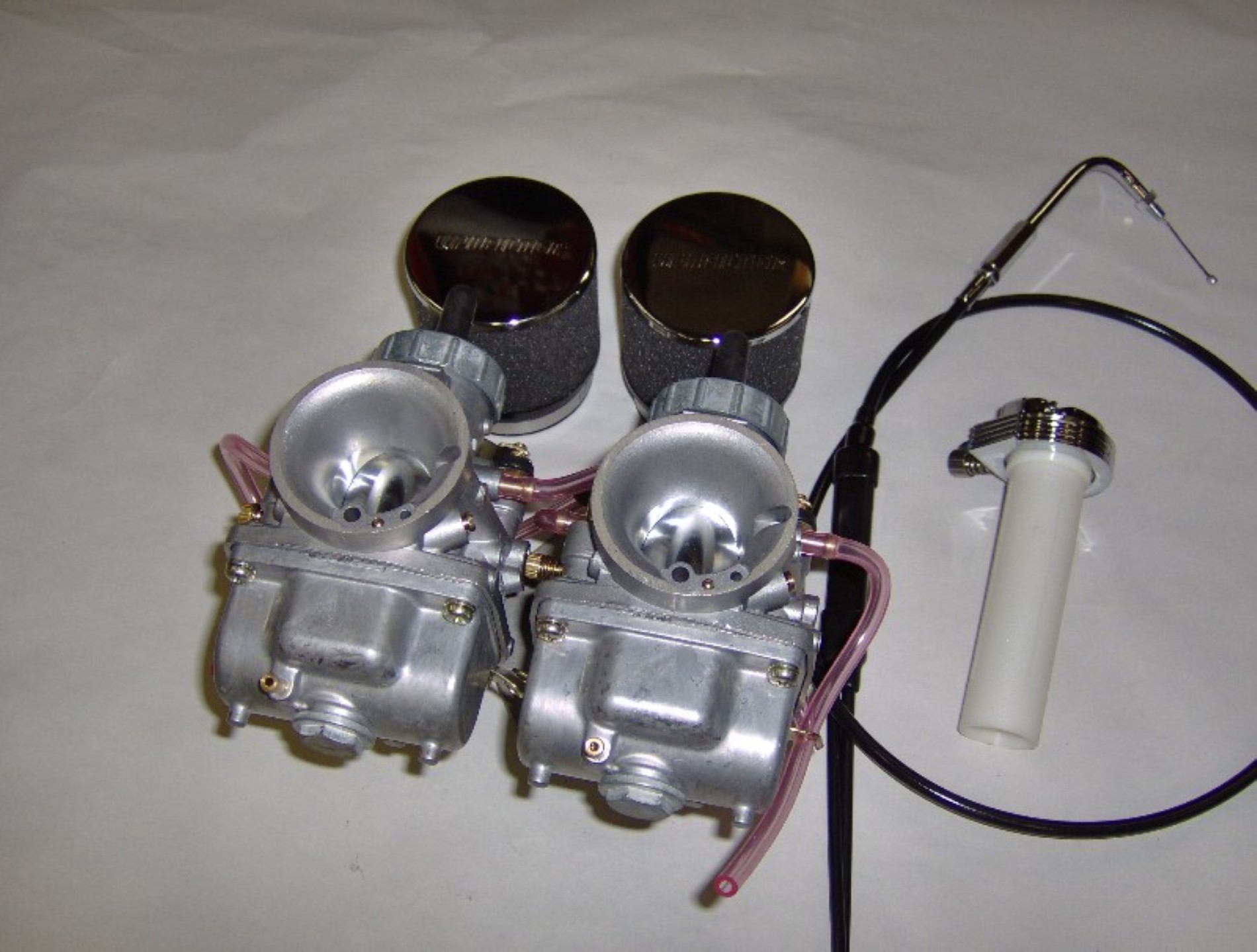

  Kit # 1

            Kit Includes:
                     (2) 30mm Mikuni carburetors ( pre jetted )
                     (2) K&N air filters
                     Motion pro throttle cable ( 47 inches long )
                     Chrome 1 inch throttle assembly
                     Gasket
                    Fuel line "T" fitting
                    Special alloy manifold, mounting rubbers and chrome mounting bolts
                     $ 499.00                  # HDC-101



harleytwincarbs Kit #  2

                   Kit #2 is the same as above but has flat retro air filters.
                   These super cool air filters will allow clearance for your legs if forward controls are used.
                    $ 499.00                     # HDC-202

 harleytwincarbs Kit # 3

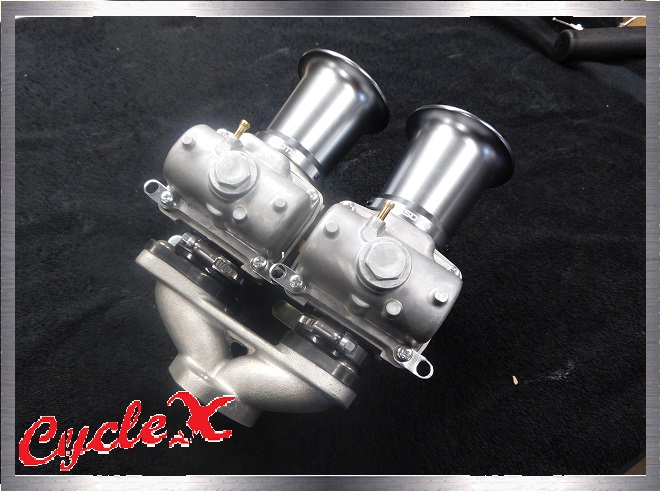

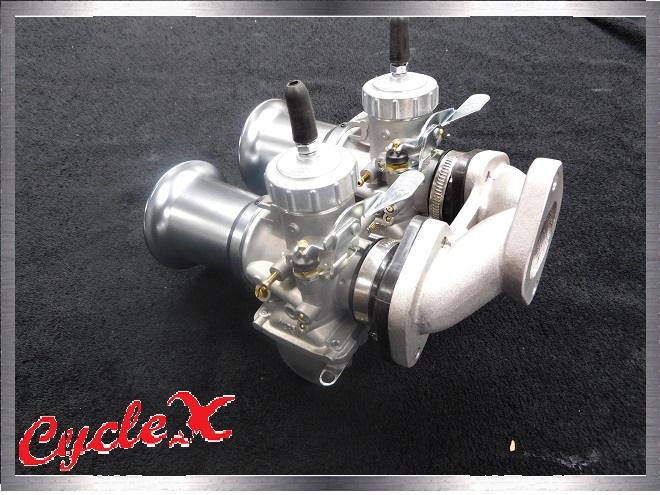

Kit # 3 is the same as above with V stacks instead of air filters. This kit will save you money and some
                    creative people like to make their own air filter arrangements.
                    $ 429.00                       # HDC-303


Description Of Components:
Mikuni carburetors:
Mikuni carburetors have infinite adjustability. We have been able to zero in on the amount of fuel delivery in all the circuits.
They also allow us to regulate the amount of incoming air to be mixed with the fuel. With this type of adjustability, fuel mileage and performance are things that some carburetor kits lack. Some carburetor kits simply have an intermediate jet, main jet and an idle mixture screw which limits adjustability when transitioning from low to higher speeds. Oh yeah, no more sucking air around worn throttle shafts.

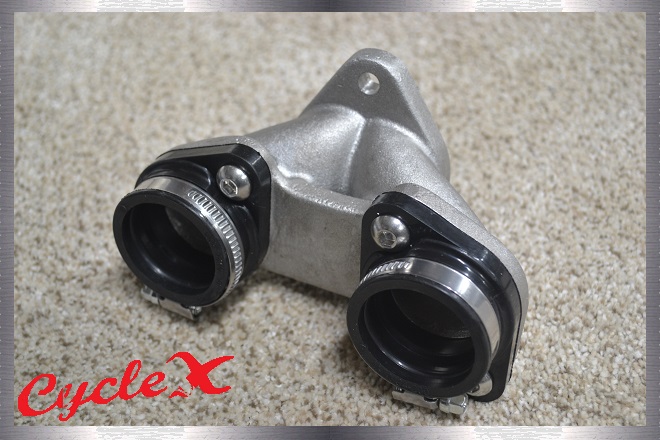

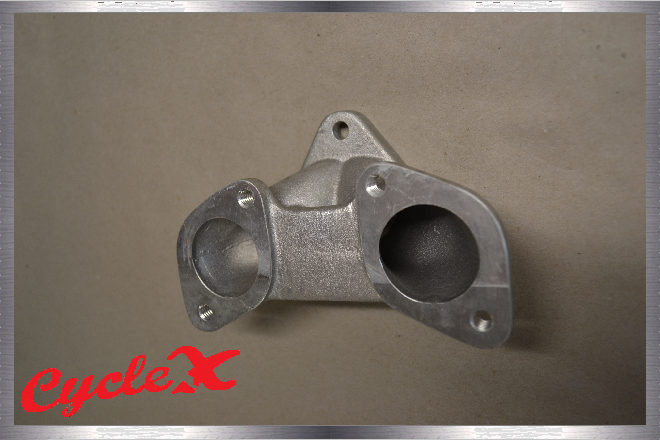

Special Alloy Manifolds:
We cannot take credit for designing these alloy manifolds. The flow characteristics and design have been traced back to the Jerry Branch neck of the woods.
The alloy manifolds are the same design used by many bike builders back in the day. This design has been used by Arlen Ness and others .

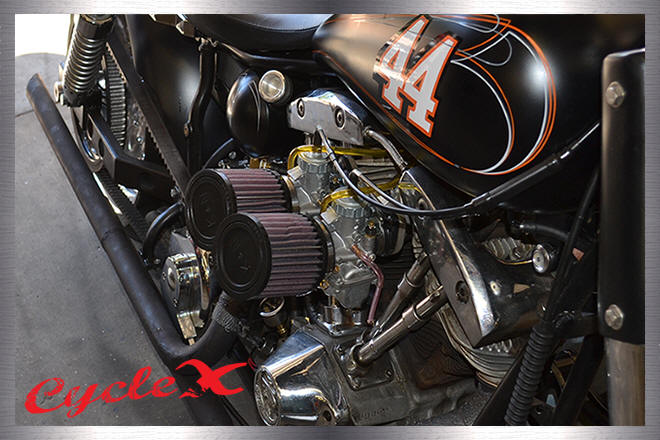

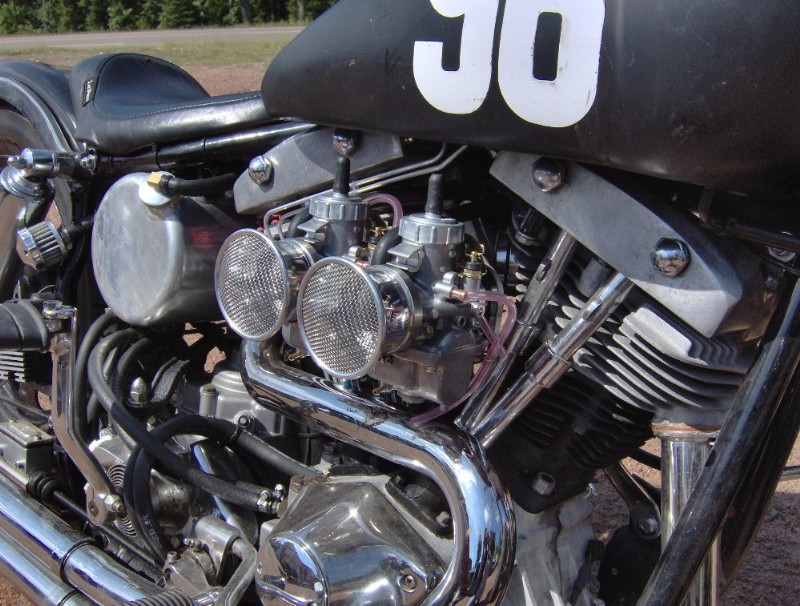

 Dan Casey has our carburetor system on his 1966 shovelhead and said, Quote:

" Being around HD's my whole life, I have used almost every carburetor offered. After installing The Cycle X  carburetor system, I do not want to get off my bike.
My shovelhead is stock and have racing and beating bikes that I really shouldn't. This bike pulls from down low and never stops. "

Dan realizes that there will be skeptics, because he was a skeptic himself and has offered his phone number to any one .

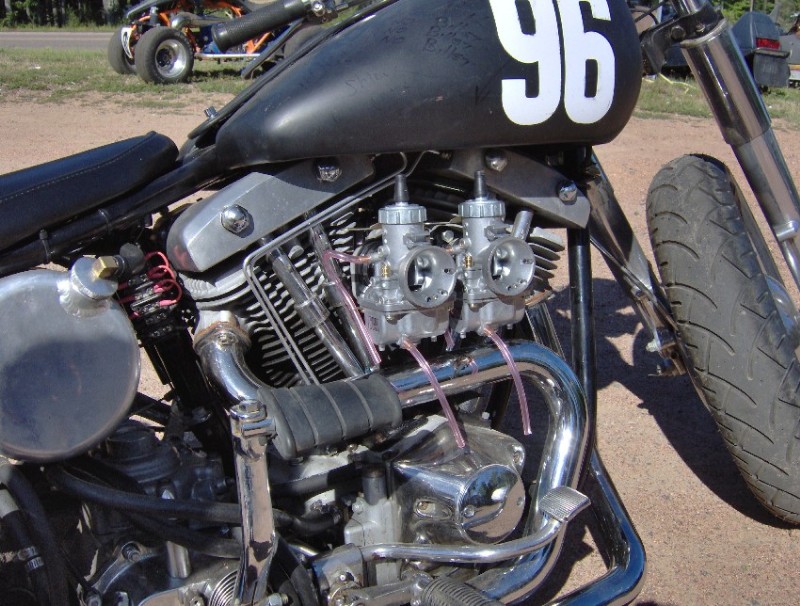

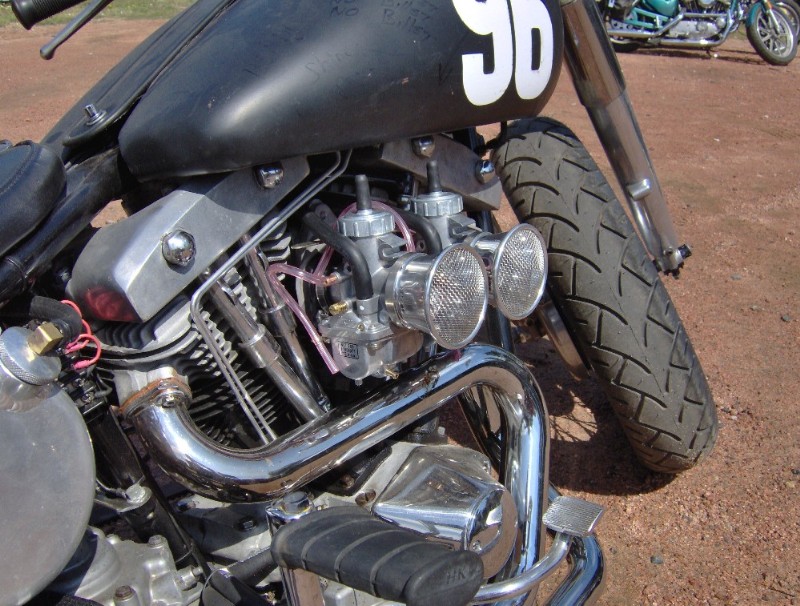

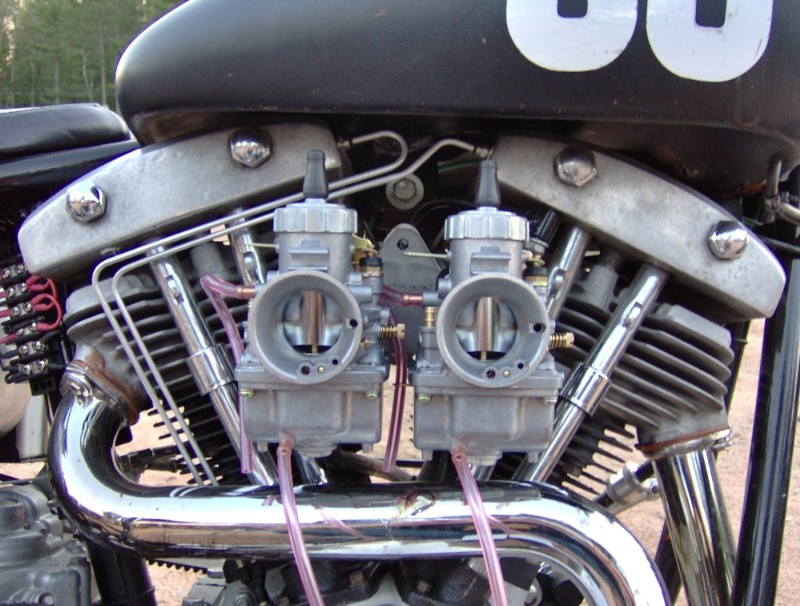

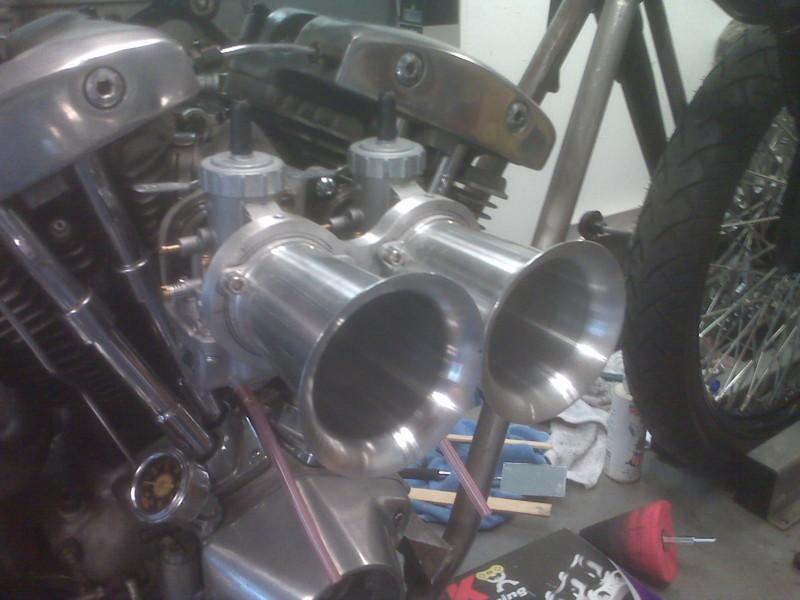

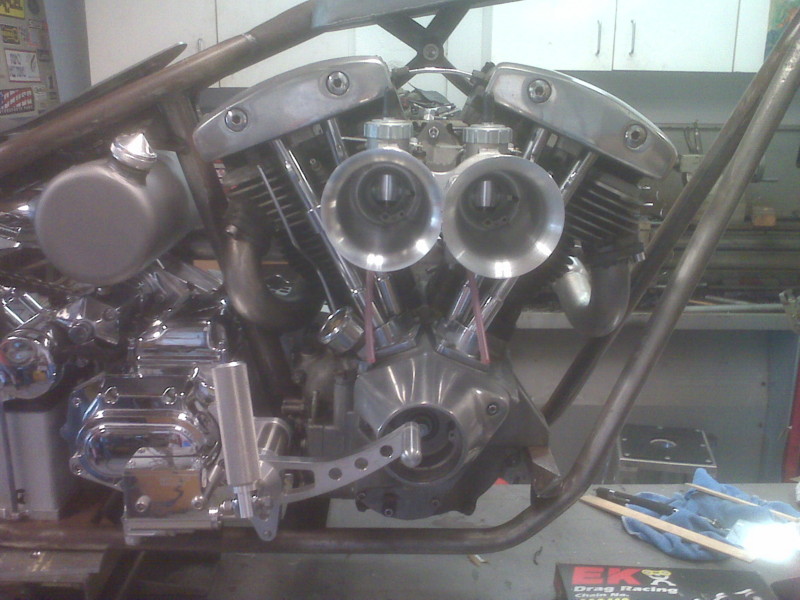

Our friend Mike Mays wanted to show what he has done with his carbs.  He grafted a set of S&S long velocity stacks to the dual carb set up.   Nice job Mike!!


All the way from Sweden.  Inje commented on the carbs he had just bought from us "It runs great, just like you said it would!"


       vintageshovelheadshotgunexhaustsystem           vintageshovelheadshotgunexhaustsystem             vintageshovelheadshotgunexhaustsystem

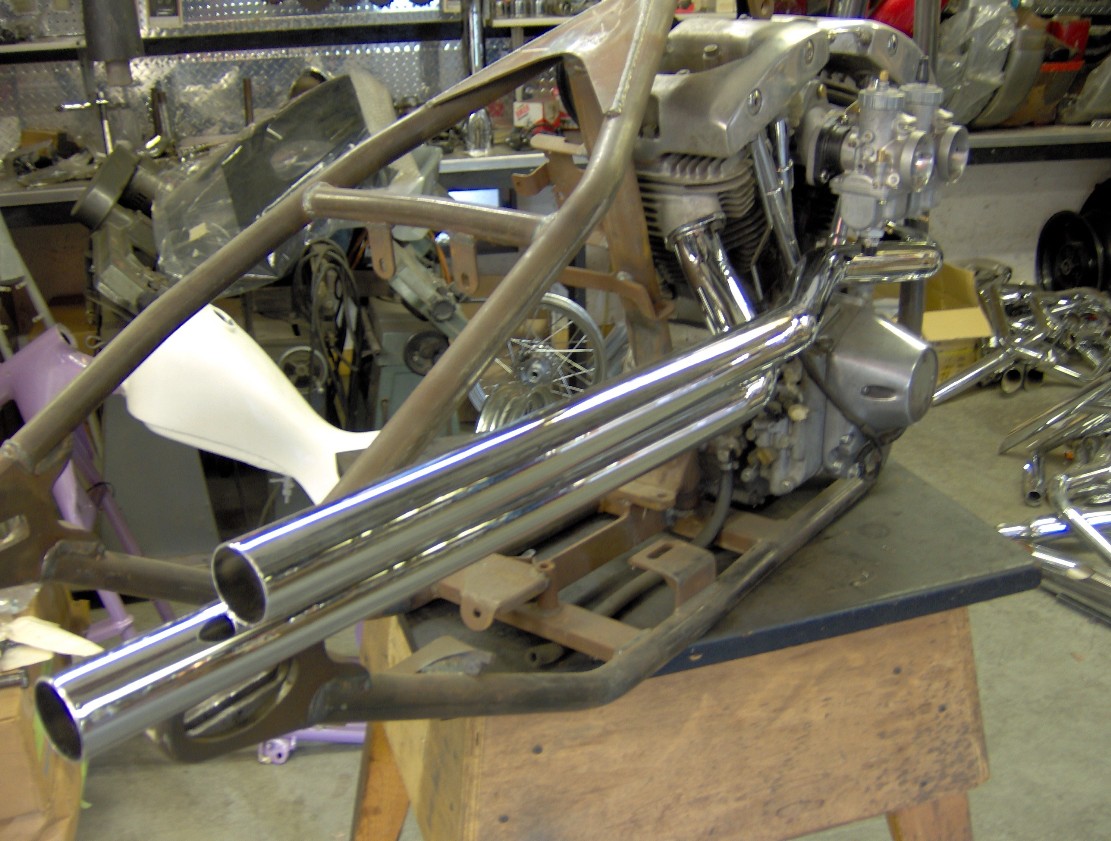

    Vintage Shovelhead Shotgun Exhaust System:
NEW
Shovelhead shot-gun exhaust system from the old days ( USA made)

Check out the cool bends on this exhaust system. We have not seen this kind of exhaust for years.
Purchased in a shop buy-out ( limited supply)
Comes with brackets.

$ 279.00   # HDX-909

                                           Jetting on the fly !!!!!!!!!
                                                                                       hondacb750extragascircuit     MCArb5.jpg (243312 bytes)     MCarb4.jpg (268060 bytes)

This extra gas circuit has many benefits.

Completely adjustable external jetting system.
Delivers pre-atomized ( vaporized ) fuel for maximum horsepower.
Has enough external adjustability for any altitude, temperature or engine modifications.
Float levels can be checked at a glance.

* fast and easy tuning

* increases horsepower

* improved fuel efficiency

* quicker throttle response

* billet aluminum construction

* delivers pre-atomized fuel to the engine

* has no moving parts or electronics to fail

* compensates for altitude and temperature

This device is an advanced fuel circuit that may be adjusted manually through its precision needle valve.

This device supplies 10% to 15% of overall fuel in a pre-atomized or vapor state.  It has its own fuel mixing chamber where air and fuel are properly mixed and per-atomized (vaporized).  Fuel is drawn into this chamber from the float bowl, then united and swirled at high speed with air from the air correction circuit, thus vaporizing the fuel.  This vaporized fuel is then inducted into the carburetor.  This fuel weighs only 10% of what raw fuel weighs.  The light weight of this fuel charge allows quick response to slight changes in engine fuel demand (engine load). You will have quicker throttle response, a broader power band, improved fuel efficiency, cooler running engine, longer plug life and excellent burn down protection.  The fuel induction is controlled by engine vacuum, air flow, and acoustic sound signal,.  The heavier your engine is loaded the more fuel  this device feeds.  When engine load decreases, so does this device's fuel flow.

You now have a demand feed fuel induction system that feeds fuel linear to engine load.

External jetting system ( Honda twin carburetor system )
# CA 002
$229.00







original70'sHDsmoothboresoriginal70'sHDsmoothboresoriginal70'sHDsmoothbores Original 70's HD smoothbores

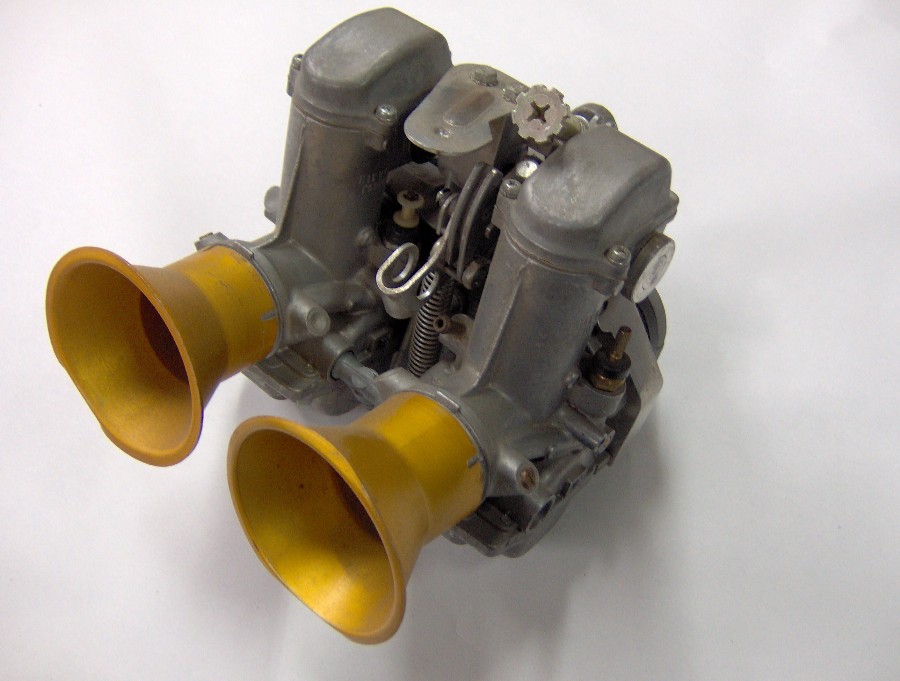

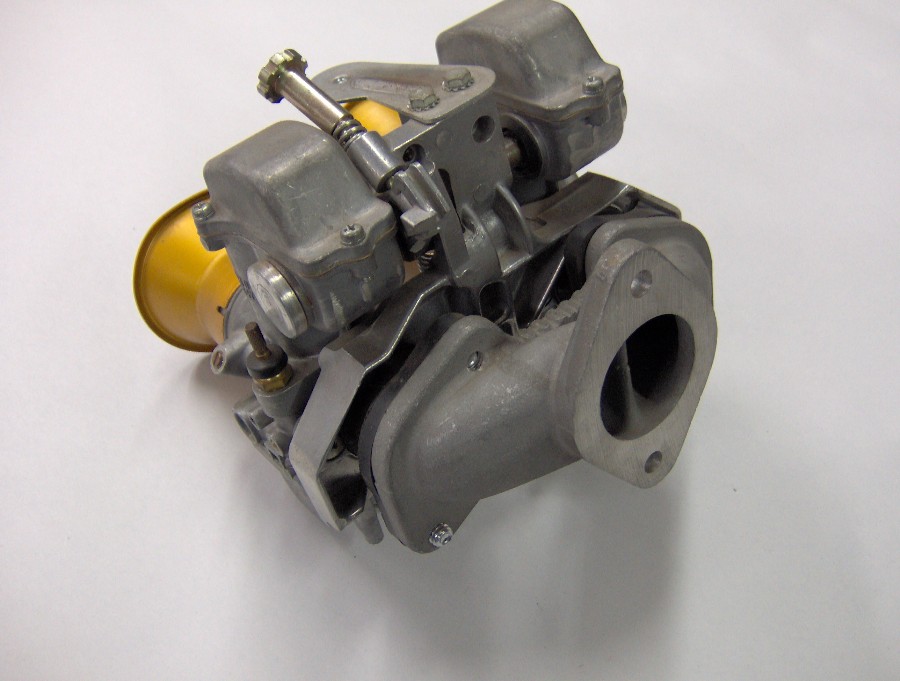

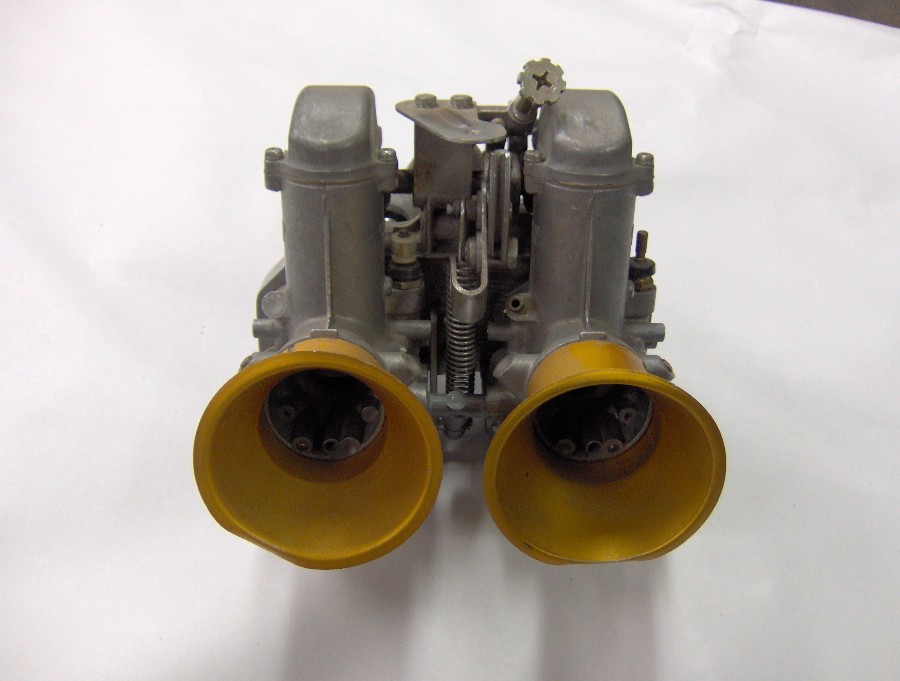

Check out these original 70's era.............. 29mm twin Mikuni smooth bore carb system.
New
New
New
The manifold was designed by
Jerry Branch
The kit was distributed by
Sudco
This kit was used heavily by
Arlen Ness in the cool 70's
Did we mention, they are New ?
$ 899.00 ( no discounts Arlen !!!!!!!!! )



singlefireignition singlefireignition

Single fire ignition
( from the old days)
This must be one of the first single fire ignitions ever made.
New
If you like different stuff from the 70's era, here you go.
Cool hey ?
$ 199.00


dualcaliperbrakesbycyclex        dualcaliperbrakesbycyclex Dual caliper brakes by Cycle X


Features:
No annoying caliper spacing.
Slide the caliper bracket on the spacer until centered with the disc. Lock the caliper bracket in place with the pinch bolt. ( all done)
( 4 ) 32mm pistons ( Italian made calipers)
American made caliper bracket and spacer.
Designed for 10 inch rotors.

Kit contains:
(2) calipers
Caliper bracket and spacer.


                                                                                                                      KIT $ 375.00





1inchdiametercyclexbroomstickhandlebars  These Cycle X Broomstick handle bars will give you that 60's,70's look.
                            1 inch dia.
                            32 inches wide
                            Chrome!!!!!!!!
                       $ 35.00        1 inch bars       # HB-773

                                                     OUT OF STOCK




                                       oneinchdiameterclubmanhandlebars    oneinchdiameterclubmanhandlebars   oneinchdiameterclubmanhandlebars   oneinchdiameterclubmanhandlebars   oneinchdiameterclubmanhandlebars   oneinchdiameterclubmanhandlebars

                                                         1 inch Clubman bars.
                     Do not bother surfing the internet for these 1 inch clubman handle bars.
                         We are the only distributor. Chrome or black satin powder coated.
                                         27.5" wide, 6.5" center, 4.75" rise.
                                           Black:  # HB-123           $ 49.00
                                          Chrome # HB-124           $ 49.00

Cycle X  version of an economy stimulus

The following exhaust systems are the cycle X way of stimulating the economy.
These systems were purchased in a shop buy-out.
Some were made 30 years ago, but all systems are new.
You will not be contributing to global warming because the manufacture has already contributed years ago.

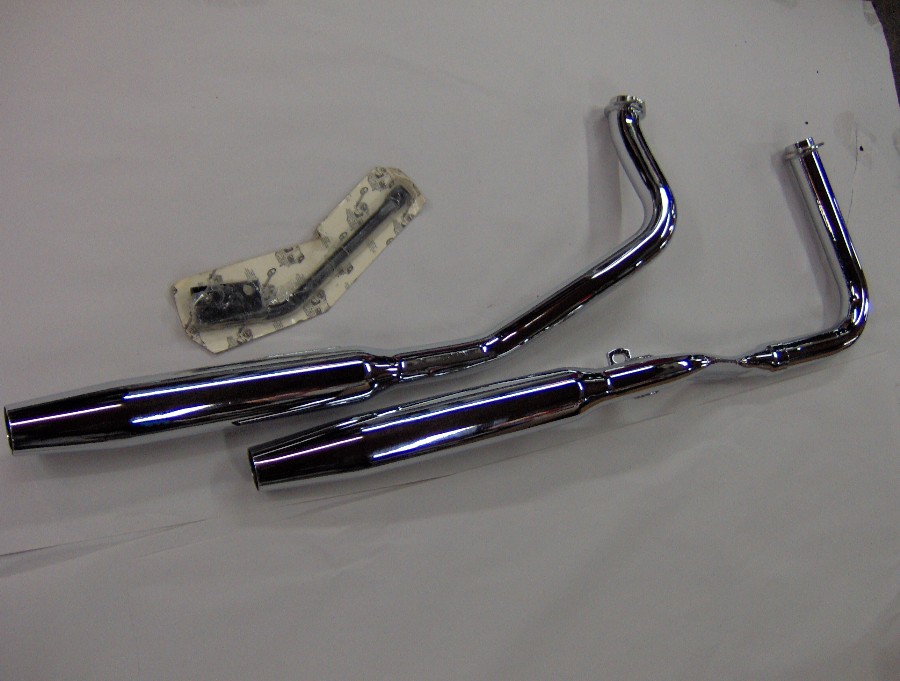

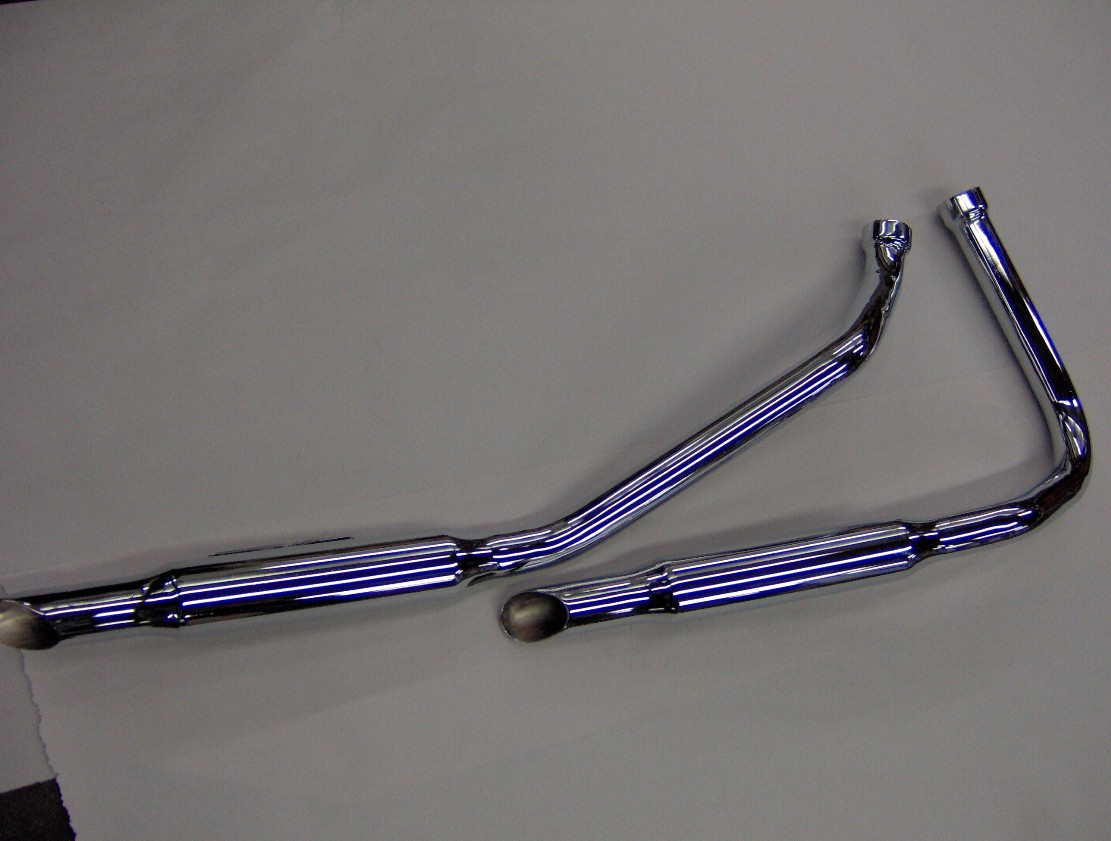

shovelheadexhaustpipes  Shovelhead pipes  by Cycleshack
New old stock  ( shop buy-out )
Sitting on the shelf for years, waiting for you.
$ 199.00



supertrappexhaustsystemsupertrappexhaustsystem


Supertrapp
New
Supertrapp exhaust system ( stainless steel )
Purchased in a shop buy-out
Fits  FXR and  FXRS  84-86
$ 349.oo


samson2-1fishtailexhaust  Samson
2-1  fishtail
Purchased in a shop buy-out.  ( new )
These system was one of the first exhaust Samson built ( maybe , anyway )
The newspaper in the box said 1990.
Anyway,
Box says:
2-1 taper w/fishtail rigid EVO.
$ 199.00


2into1forevoproject
2 into 1 for EVO project  bike
New
Maybe you could use this for a project
$ 99.00


cycleshackmpipes
Cycle Shack  "M" pipes
Cycle shack "M" pipes are some have a great sound and make power.
Purchased in a shop buy-out ..........  NEW
Box says:
Dyna ( all models )
$ 199.00

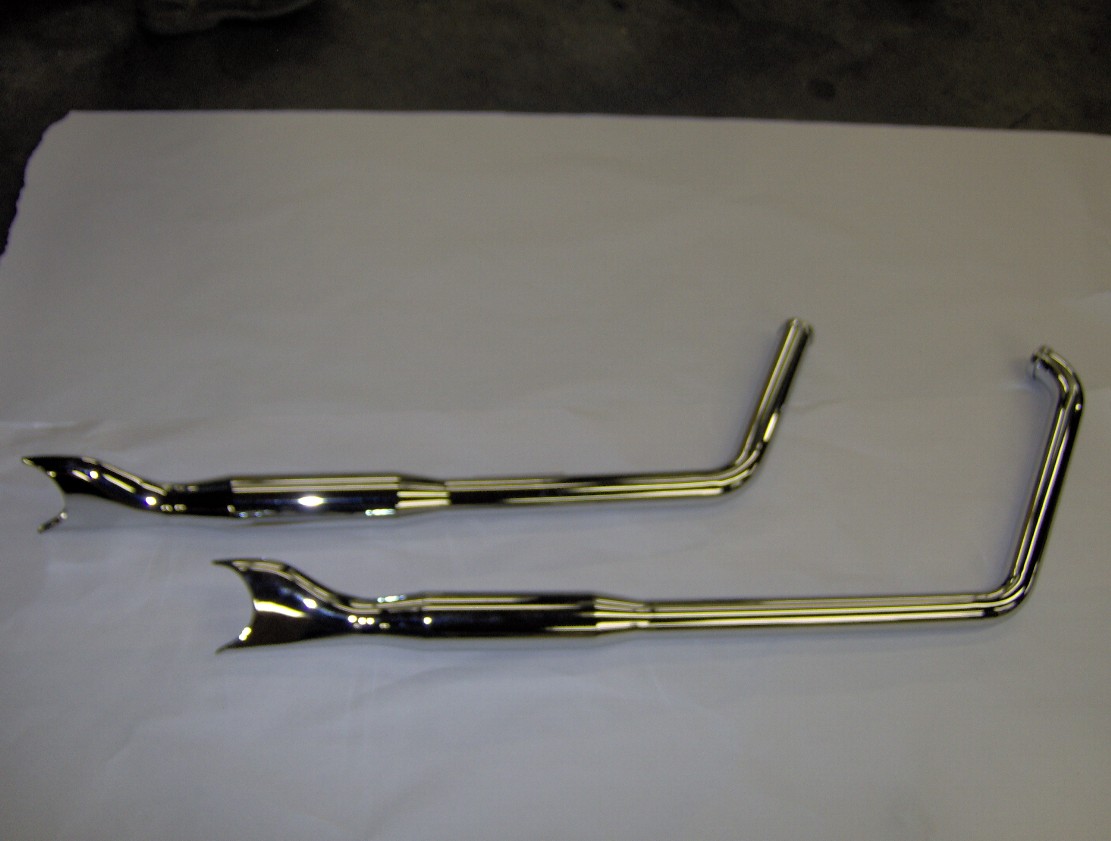

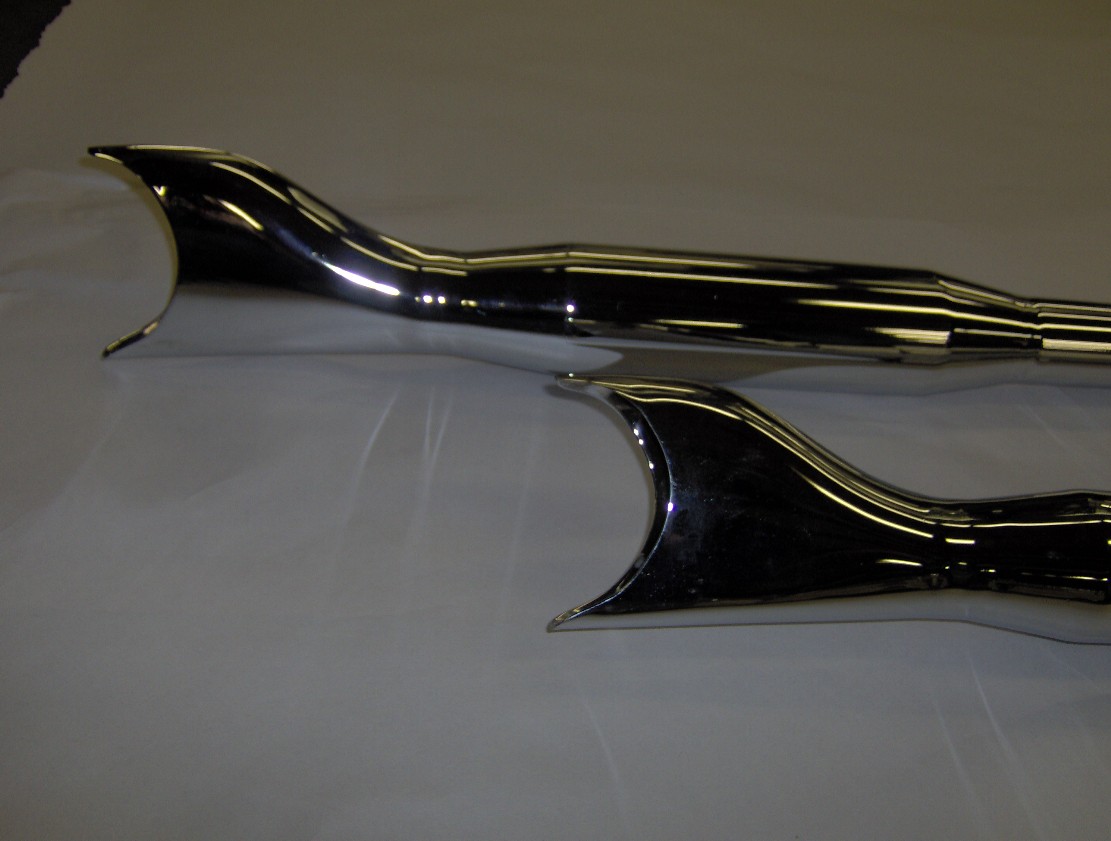

FXSTshotgunfishtailexhaust   FXSTshotgunfishtailexhaust FXST... Shotgun ... Fishtail
New
Purchased in a shop buy-out.
Like umm ?
$ 275.00


panheadexhaust   Panhead

  $ 169.00







alphabetshovelexhaustalphabetshovelexhaust Alphabet Shovel exhaust
These are a set of Alphabet exhaust for a Shovelhead. They are the same system used on my bike.
Let me guess, you have never heard of Alphabet headers. Joe alphabet was a major manufacture of exhaust system in the 70's.
I have heard many of Shovelhead systems in my days, but not as good as this exhaust system.
$275.00

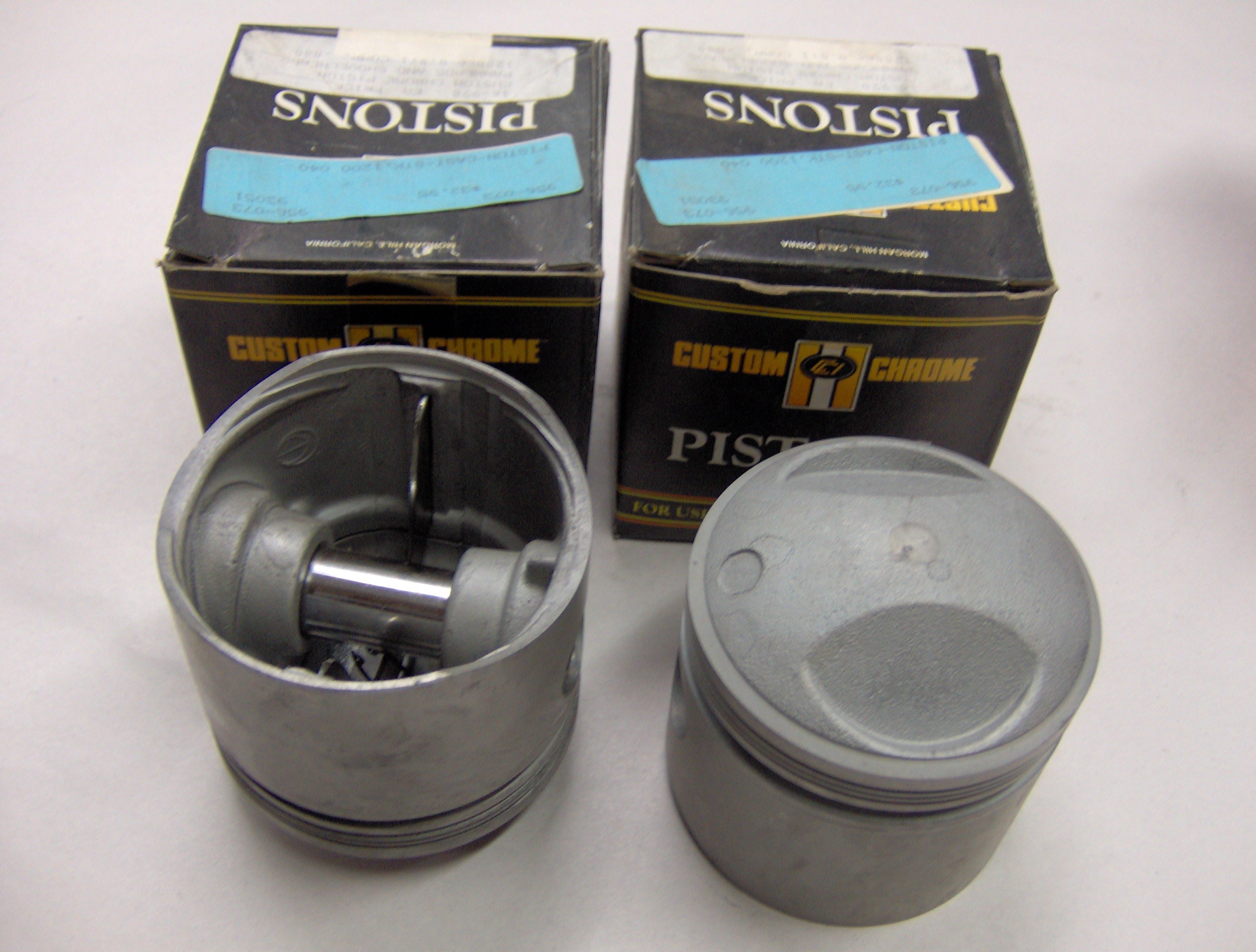

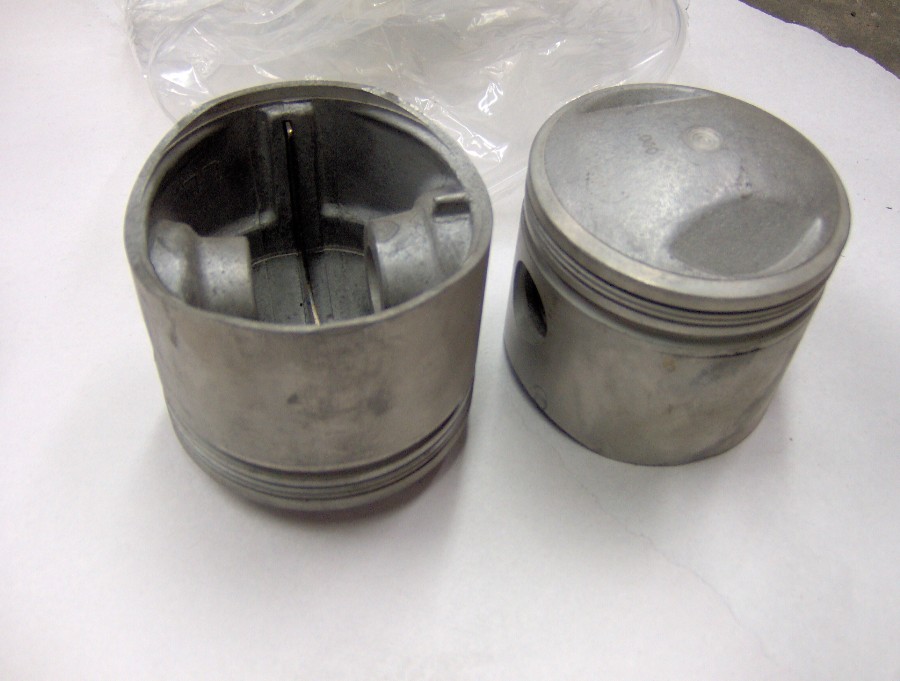

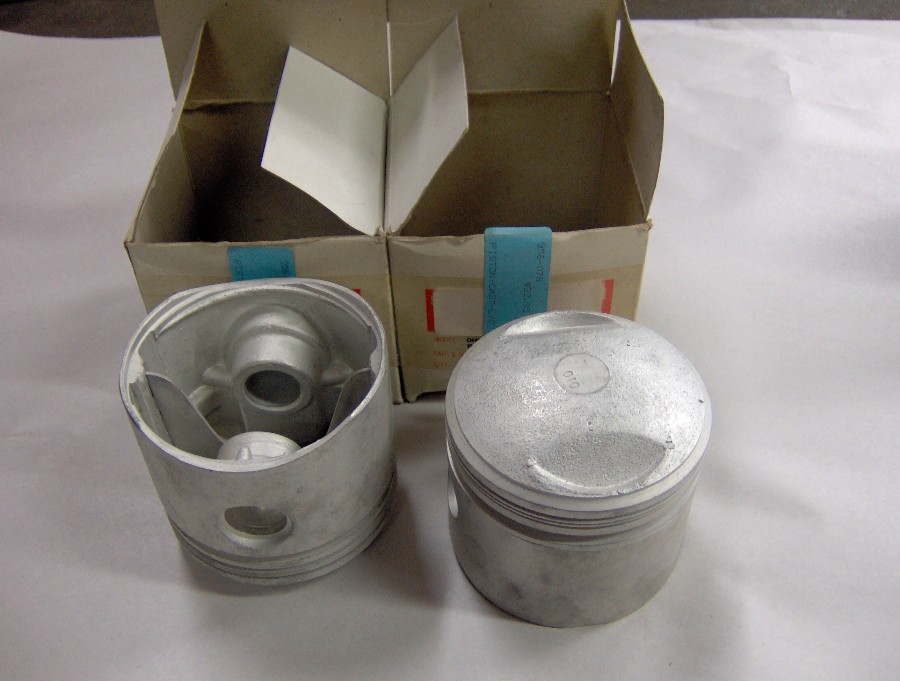

sportster pistons Sportster pistons  ( price buster )
These sportster (ironhead ) 1000cc pistons were purchased in a shop buy-out.
They are new!!!!!!!!! ( bad photo )
Pistons, rings and circlips.
For some reason the wrist pins are not in the boxes.
In stock:
050 over
060 over
070 over
080 over
$ 39.00 per set  "while supply lasts "

 sportster700pistons     Sportster 900 Pistons ( Price Buster )
These pistons were purchased in a shop buy-out. ( new, old stock )
Pistons only.
In stock:
010 over (2) sets
040 over (1) set
$ 29.00 per set




sportster900ccpistons   Sportster 900cc pistons  ( Price Buster )
Complete set........   Pistons, rings wrist pins and clips
090 over .........  Only one set in stock
$ 69.00





sportster900ccpistons dSportster 900cc pistons  ( Price Buster )

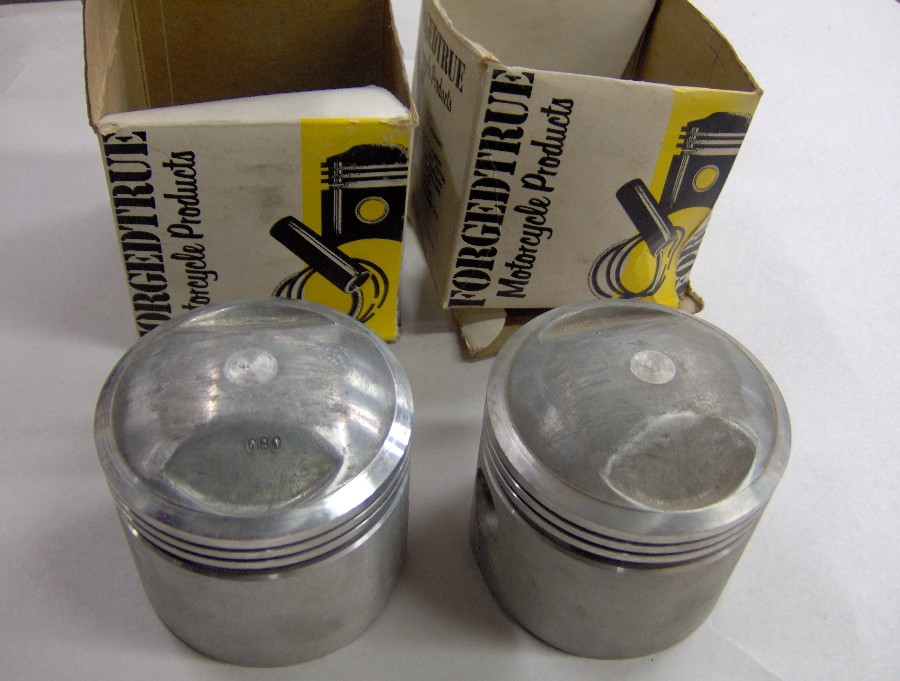

Forged true pistons.
These Forged True pistons were made in California many years ago
New, old stock.
Pistons only ( use Hastings rings )
In stock:
STD (1) set
080 over (1) set
$29.00 per set




bigtwin1200cc Big twin ( 1200cc)  Price buster
Low compression
010 over ( cast pistons)
Pistons only
$29.00 per set




bigtwin1200ccBig twin (1200cc)   Price buster
Forged true ( USA made)
080 over
Pistons and wrist pins ( use Hastings rings)
$29.00 per set



bigtwin1200ccBig twin (1200cc) Price buster

Low compression.
 040 Over.
Pistons and Wristpins only.
 $ 29.00 per set



bigtwin1200ccBig twin (1200cc)  Price buster

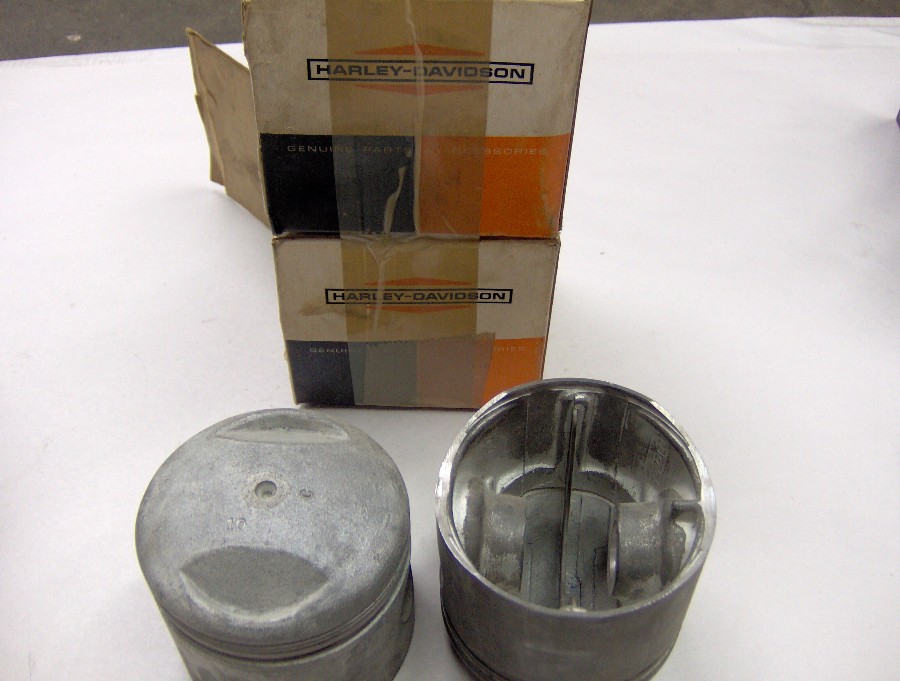

Original Harley Davidson piston sets.
Standard compression.
Pistons only
010 Over.
$ 29.00 per set

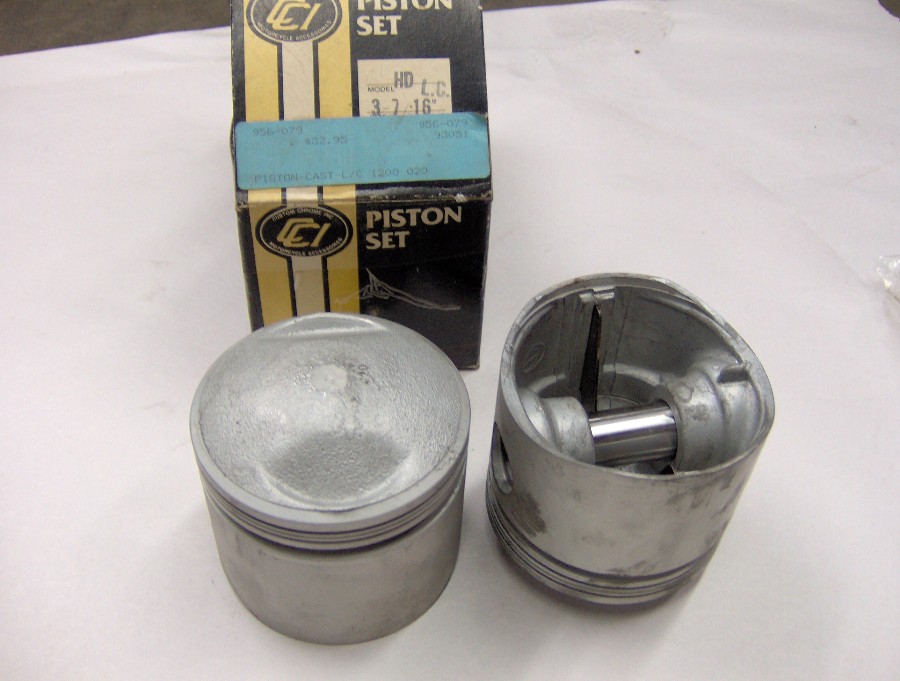

bigtwin1200ccBig twin (1200cc)  Price buster
Low compression.
020 over.
Pistons and wristpins only
$ 29.00 per set



bigtwin1200ccBig twin (1200cc)   Price buster
Low compression.
040 Over.
Pistons only
$ 29.00 per set.

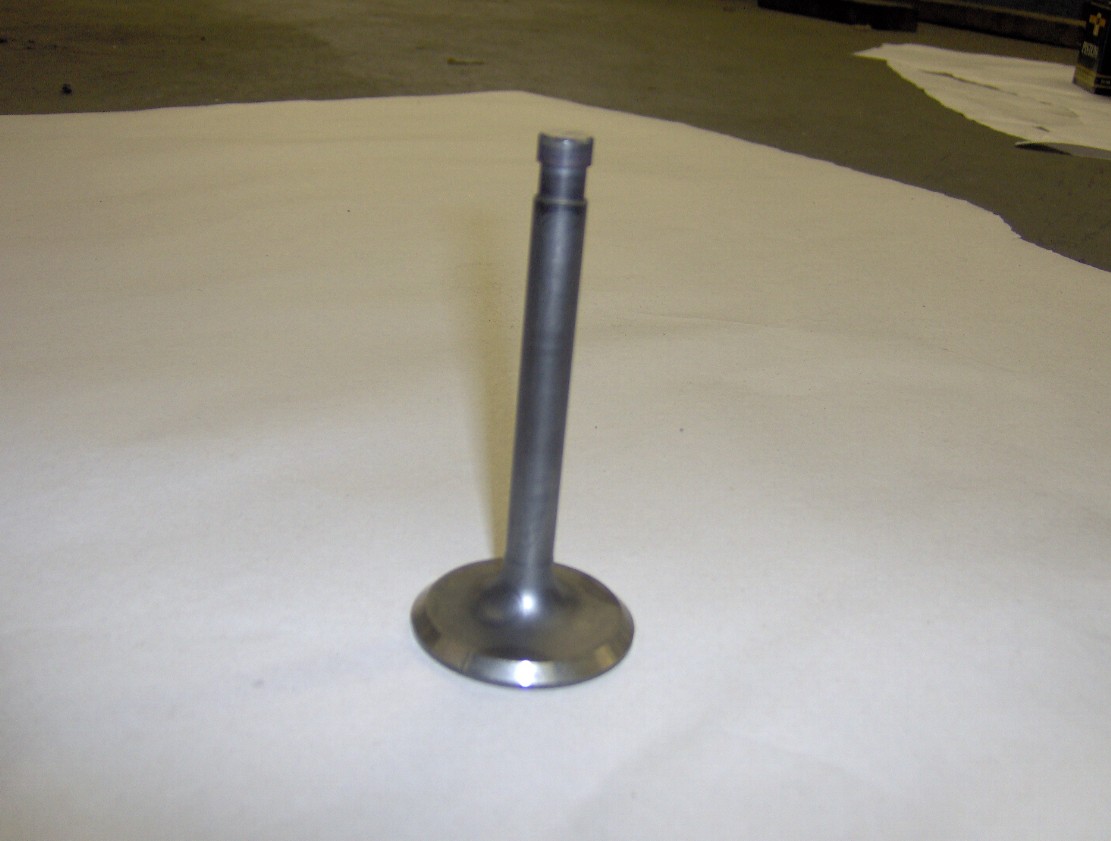

74cinitridedexhaustvalves  Nitrided exhaust valves ( 74ci)
Purchased in a buy-out.
We only have the exhaust valves.
$ 10.00 ea

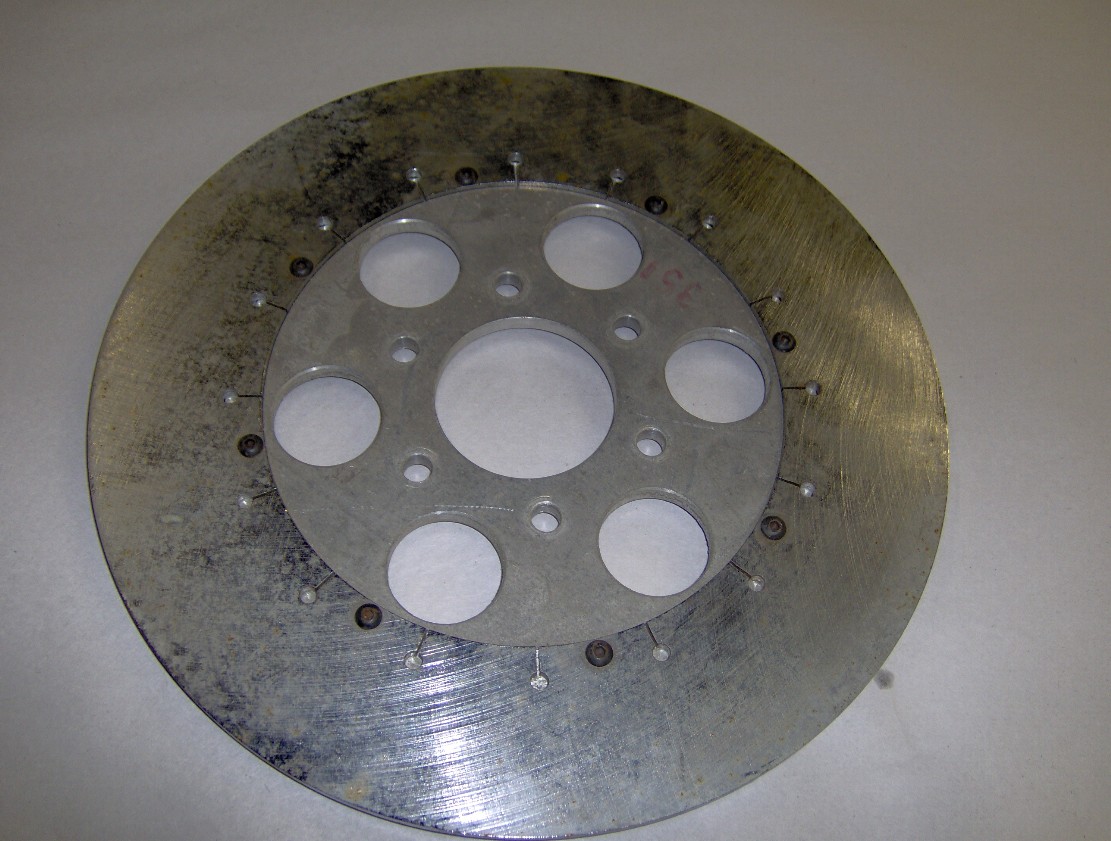

If you have an Invader mag wheel from the 70's, you might need this NEW rear disc some day.
We have these disc's in chrome and natural finish.
$ 125.00 ea

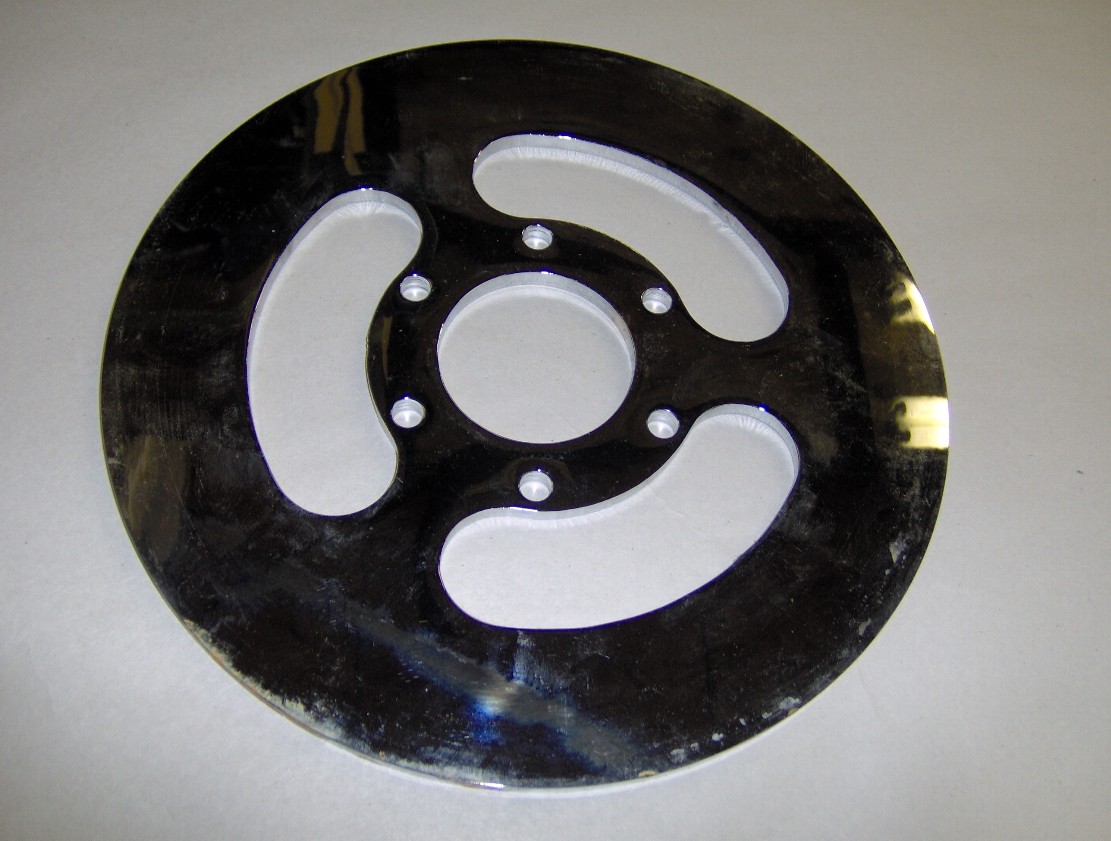

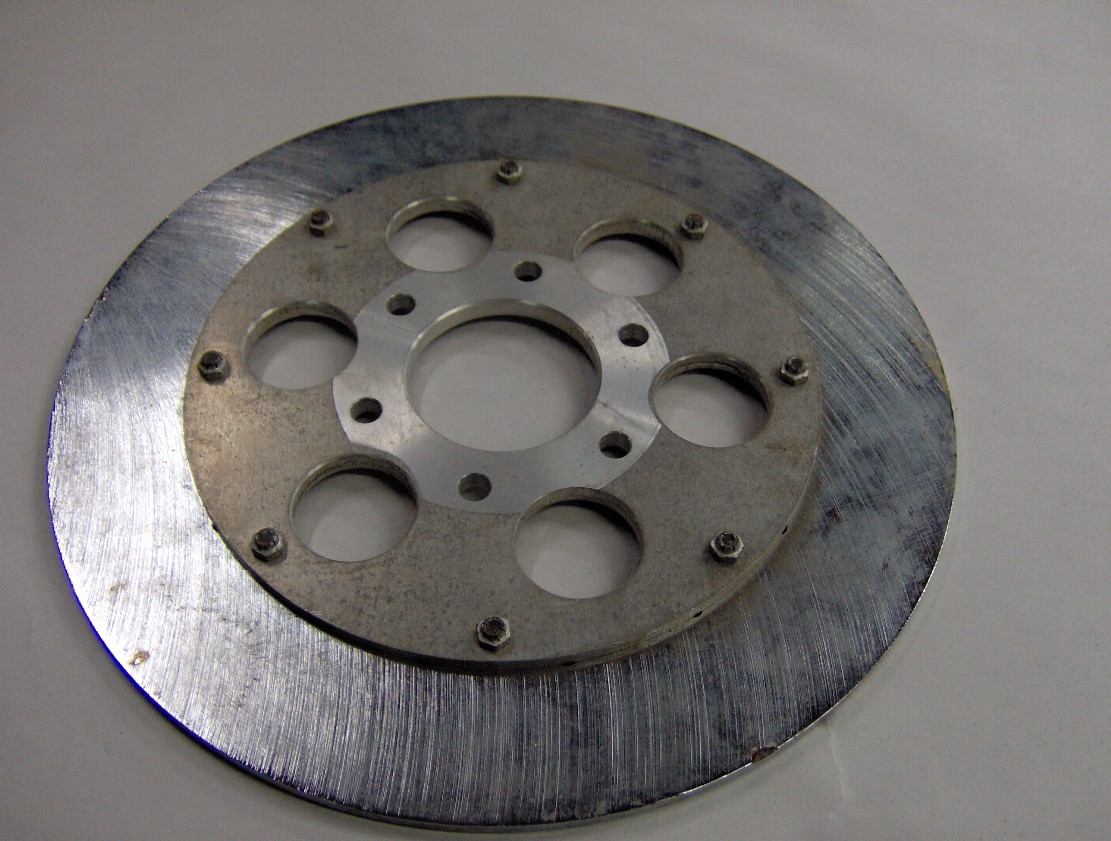

Once again............. New rear brake rotor for you Invader mag folks.
$125.00

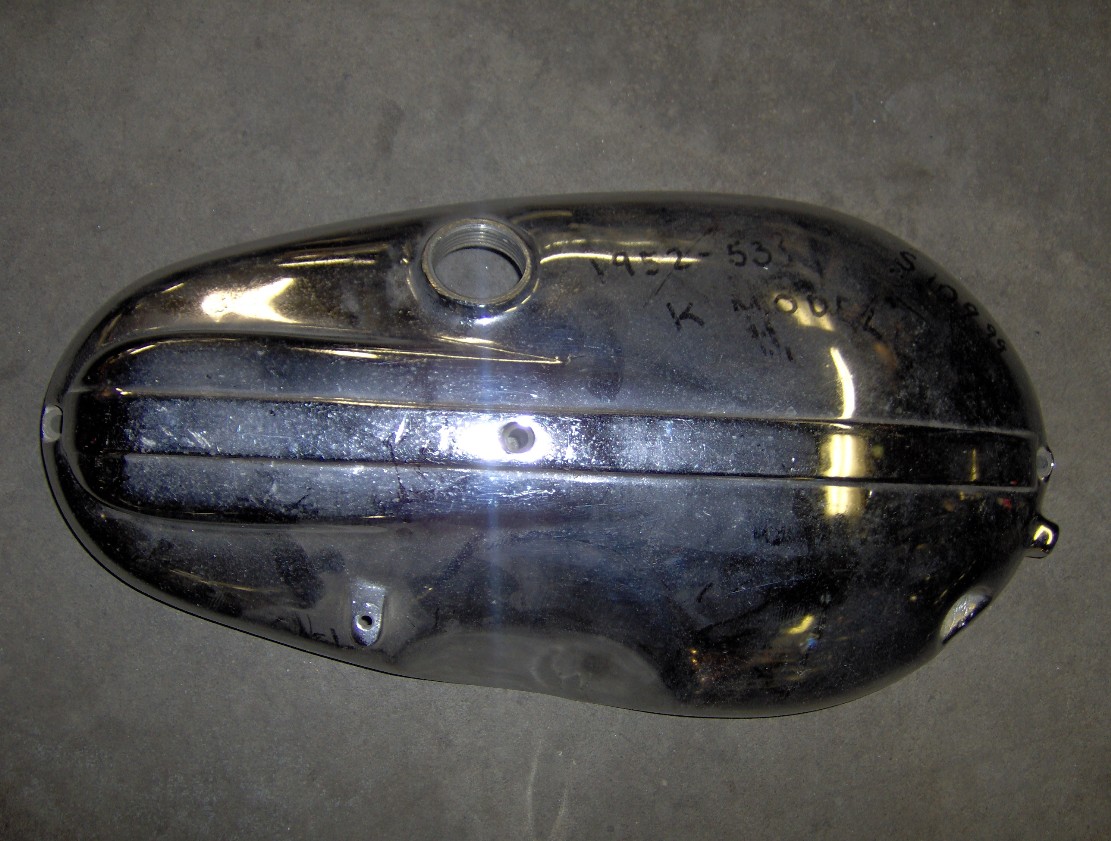

Um........... looks like 1952 or 53
$89.00











         Cycle X Retro Gas Tanks.

  This is one of our favorite gas tanks from the 70's.


3.3 gallons.
                                                                         Ribbed for that 60's, 70's look.
                                                                        Matching ribbed flush gas cap.
                                                                                   $ 169.00      # FL-010



Classic 60's, 70's mufflers.
18 1/2 inches long.
Fits 1 3/4 pipes.
Reducers are included to gradually step down to 1 1/2 pipes.
Brackets and clamps are included.
Left photo shows straight mufflers. Right photo shows upsweep.

$ 79.00 per pair
Straight # EX-4401                                       Upswept # EX-4402
      OUT OF STOCK

a small new tail light 1.JPG (234516 bytes)a small new tail light 2.JPG (248281 bytes) Micro tail light
This tail light has a 2 inch lens.
3 1/2 inches long.
Clear lens on the bottom for your license plate viewing
Brake and tail lighting.
Cool swivel bracket for mounting.
$ 32.95



a triangle head light.JPG (283118 bytes)Triangle Head light
These triangle head light are re-pop's of the old days. ( except better)
They are manufactured with Halogen bulb's so you can see the road.
# LG tri
$ 79.00
OUT OF STOCK!

minilite1.JPG (325144 bytes)     minilite2.JPG (294791 bytes)   minilite3.JPG (319933 bytes) Cycle X Mini Headlight:
These Cycle X mini headlights feature:
                                                                     Heavy duty construction.
                                                          Bottom mount.
                                                         3.5 lens diameter.
                                                         4.5 in length
                                                        60,55W Halogen bulb.
$ 49.00      #EX-9876




                                              NEW PRODUCT - VINTAGE, RETRO CHROME TAIL LIGHTS!

                                                                      vintage tailite 1.JPG (48150 bytes)            vintage tailite 2.JPG (50561 bytes)


                    We have never seen these tail lights in catalogs before. Very limited supply!
                                                                 $ 37.95                         # LG-098


                                      NEW  PRODUCT - VINTAGE, RETRO BLACK TAIL LIGHTS!

                                                    SMALL BLACK TAILLIGHT 1.JPG (207174 bytes)          SMALL BLACK TAILLIGHT 2.JPG (222028 bytes)
                             EXCLUSIVE CYCLE X PRODUCT! NO WHERE ELSE TO BE FOUND!





sparto front.JPG (205376 bytes) sparto side.JPG (199325 bytes) sparto back.JPG (201591 bytes) SPARTO TAIL LIGHT-------- Polished alloy:
                                                                  Tail lights with a attitude!
                                                                  Base 4 3/4 x 1 1/2. Length 5 3/4. Lens approx 1 3/4.
                                                                 $ 25.95         # LG-099






1 INCH CLAMP 1.JPG (206526 bytes)   1 INCH CLAMP SIDE.JPG (202561 bytes)  Mirror clamp for 1 inch handle bars:
                                             Another neat little item to clean up your handle bar area. This chrome mirror clamp will use HD style
                                             mirrors or drill and tap for the above cool mirrors.
                                              $ 12.95                            # HB-444

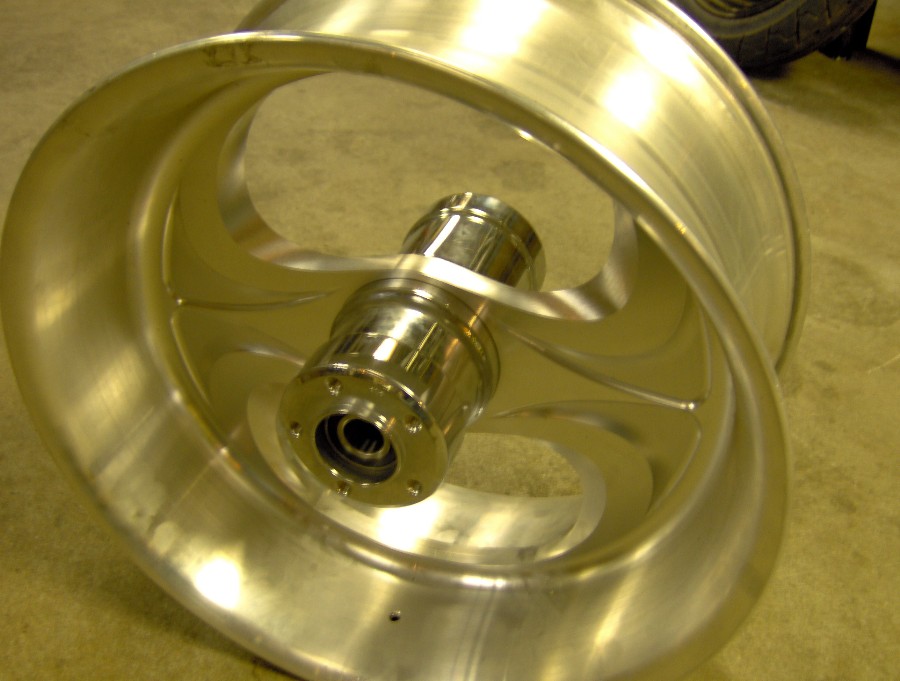

1 OCC mag 1.JPG (258983 bytes)
OCC  Battle axe mag wheel
We think this Mag wheel is one of OCC's coolest wheels
18 inch
8.5 wide
New
$899.00


1 jammer mag 11.JPG (248758 bytes)  Jammer mag wheel
Cool Jammer front wheel from the 70's era
16 inch
Single disc
Powder black, polished inner hubs
$ 499.00





1 jammer mag 12.JPG (249615 bytes)Jammer mag wheel
 Another Jammer wheel from olden days
Same as above but we used this mag on the rear.
Dual flange.
$ 499.00

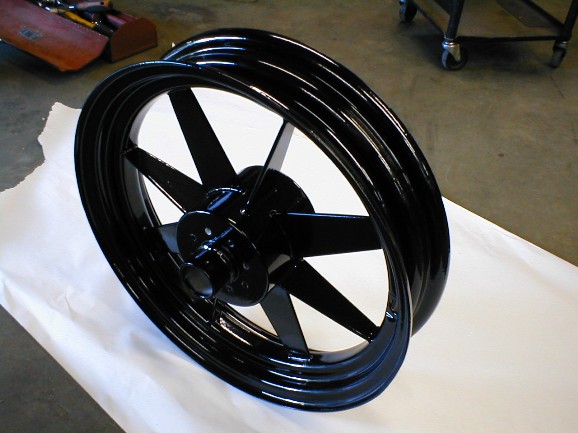

 thurs blk rim.JPG (67475 bytes)
  HARLEY SPORTSTER 16 INCH REAR MAG:
                                Drum style rear wheel (60-70's)
                          Satellite or blade style------Powder coated
                         $ 300.00             # WH-118






July rim.JPG (73544 bytes)  HARLEY 19 INCH FRONT INVADER RIM:

                 Satellite 19 inch invader mag for wide glide front ends.  ------------------    NEW!!!!
                       $ 399.00                     # WH-122



   thurs rim 5.JPG (74300 bytes)
HARLEY 19 INCH FRONT INVADER MAG AND DISC:
                               This mag has adaptors for wide glide front ends.
                         $ 399.00                # WH-119


A HD mudflaps.JPG (271595 bytes)  HD mud flaps for your pick-um-up-truck.
Had these mud flaps forever.
New ( kinda dirty)
From the 70's
Cool hey!!!!!!!!!
$125.00



a shovelhead turn outs.JPG (263335 bytes) 1 3/4 turn-outs  ( the 70's )
New, but old.
Turn-outs from the 70's. Kinda dirty.
$ 39.00 per set

VDO temp guage.JPG (255357 bytes)      VDO   voltmeter kit  (70's)
 Super rare, super cool, super new voltmeter kit by VDO
$ 125.00



VDO volt guage.JPG (263754 bytes)    VDO   oil Temperature kit (70's)
Oil temp.kit like above.
$125.00.
Note: We also have a oil pressure gauge ( looks the same )
$125.00

a S&S E.JPG (243725 bytes)  S&S  >>>    <<<
Brand new S&S E body only  ( you might need this someday )
$ 99.00



A S&S G.JPG (255495 bytes)  S&S  >>>    <<<
S&S G carburetor.
Pulled from a Stroker
$ 175.00



cafe plug and pump.JPG (307187 bytes)    Plug  &  Pump
Welcome to the 70's
Here is a gift for your cheap ass friend with his bald ass tires.
Plug & pump.
Remove your spark plug.
Screw in the Plug & pump adaptor into your spark plug hole.
Connect the hose to your tire, and pump it up  ( awesome )

Has adaptors for all spark plug sizes.
New in original package.
$ 39.95


Milw right arm.JPG (258507 bytes)   Check this out.
This invention never made it to market.
Combination knife, screw driver and wrench designed to mount to your bike.
The instructions show this clever invention mounted to forks and air filters.
Purchased in a shop buy-out.
$ 89.00





  metal end.JPG (274048 bytes)Build your own frame if your so smart !!!!!!!!!!
                     This frame tubing was purchased from the HD factory many years ago.
                      This is the same tubing used to make all the HD frames for years.
                      DOM seamless.
                      Available in 1 1/8, 1 1/4 and 1 1/2 diameters.

                       1 1/8 " $ 20.00 per 6 feet
                       1 1/4"  $ 25.00 per 6 feet
                      1 1/2 "  $ 30.00 per 6 feet





                                                                HOW TO ORDER:
You can either e-mail in your order or phone it in to us. We ship via UPS and US Priority Mail to the Lower 48 States. We will be happy to ship to Hawaii, Alaska and other countries via US Airmail.

We accept the following payments:
Money Order, , Cashiers Check, Personal Check, PayPal, Visa, Mastercard, American Express and Discover Card. You can get to PayPal at www.paypal.com . Get signed in and click on the SEND MONEY Tab at the top. Send it to our e-mail here at the shop cyclex@cyclexchange.net and fill in the other fields.  Or we would be happy to send you a Paypal Request Invoice. We will also ship to you COD thru UPS, with a extra $ 8.00 charge. Whether you mail in payment or do the PayPal thing, be sure to leave correct shipping address and Item name and number. We pride ourselves on being lightning quick with the shipping. We will quote you shipping charges, which always includes insurance. Call in your order today!!



How To Reach Us:

By Phone    # 715-356-7346

By Mail       Cycle Exchange
                   P.O. Box 275
                   Minocqua WI 54548

By E-Mail   cyclex@cyclexchange.net

Our PayPal address  cyclex@cyclexchange.net

Our physical address ( for items sent to us Fed Ex or UPS or if you'd like to drop in and say HI )
                    6246 Hwy 51 South
                    Hazelhurst WI 54531









 Hit Counter
