DIY CYLINDER & PISTON COMBOS

DO IT YOURSELF CYLINDER & PISTON COMBOS

CALL OR EMAIL TO ORDER THE FOLLOWING ITEMS BELOW

Descriptions Of Terminologies Explained.

Ceramic dome coatings:
Ceramic dome coatings repel unwanted heat.
Combined with combustion chamber and valve coatings will increase performance, longevity and dramatically reduce heat.

Armor glide skirt coatings:
Armor glide piston coatings are nice insurance when lubrication problems, tuning problems happen ... Also works together with oils "just-in-case"

Deluxe bore and hone:
Inspected, blasted, surfaced, bored and honed.

Oil feed "O" ring modification:
Top end oil feed "O" rings can move or shift from time to time.
We machine and install an inner dowel pin to keep them in place.

Milling or surfacing:
Milling or surfacing is done to insure your gasket area is happy and seals correctly.
Increasing compression option.
Adjusting deck height with pistons being used.

XC rings with Total seal 2nd ring:
Wiseco XC ring sets are still the engine builders favorite.
Total seal gapless 2nd rings are a common practice with high level engine builders.
There is plenty of literature and endorsements regarding 2nd ring upgrades.

XA rings:
Wiseco quality but thinner for potential power increases.

Top case boring:
Some larger big bore kits require upper case boring when bigger sleeves are being used.
Noted in the descriptions.

Uni-brow piston domes:
We playfully call this machining process uni-brow piston dome modifications.
Used to adjust valve pockets from staggered to a common pocket or enlarge.
Dome volume is also adjusted for desired compression ratios.

Compression ratio estimated:
Estimated ratio?
Here's why:
69-76 Honda cb750,s had a 22cc combustion chamber.
77-78 K models had a 24cc combustion chamber.
77-78 F Super sport models had a 28cc combustion chamber.
Chamber blending will have an effect.
Surfacing and gasket thickness will have an effect.

Lightly used. Low hour pistons.
Fully inspected and treated with race coatings.
Make no mistake ,these pistons are very nice and offer more options for compression ratios and valves sizes.
From our personal stash.
Fresh bore and hone.
New rings.
Attractive pricing.

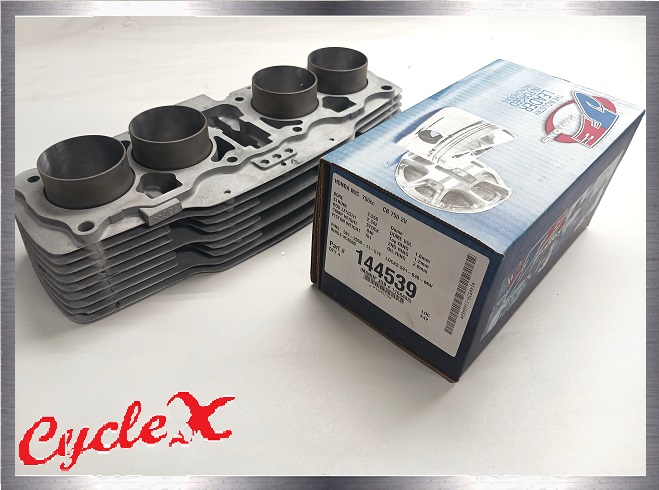

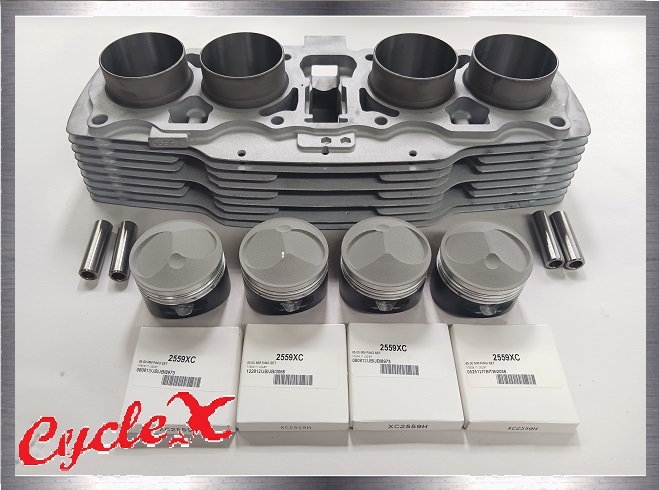

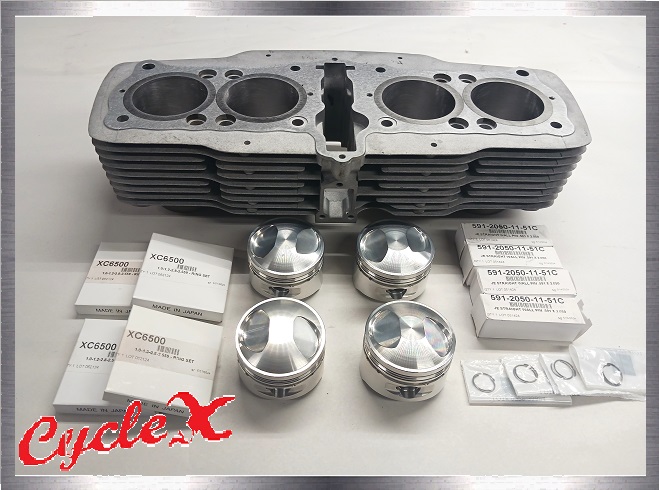

Honda cb750 sohc 836cc big-bore pistons and cylinder combo.

Here is a JE brand 836cc (65mm) 10.5 big-bore kit and cylinder combo up for sale.

Fits 69-78 Honda cb750 sohc models.

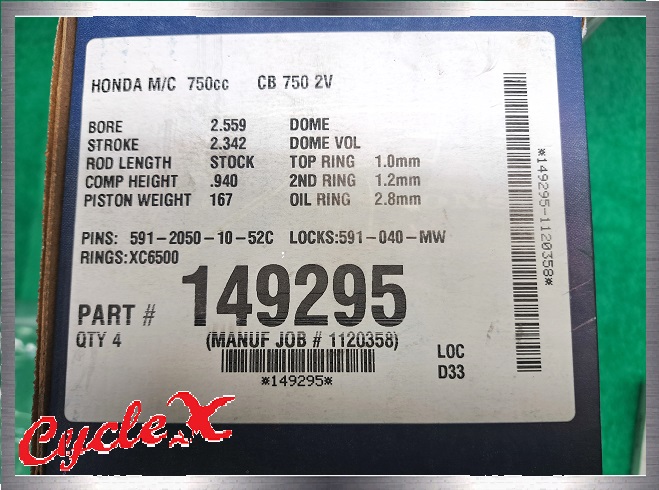

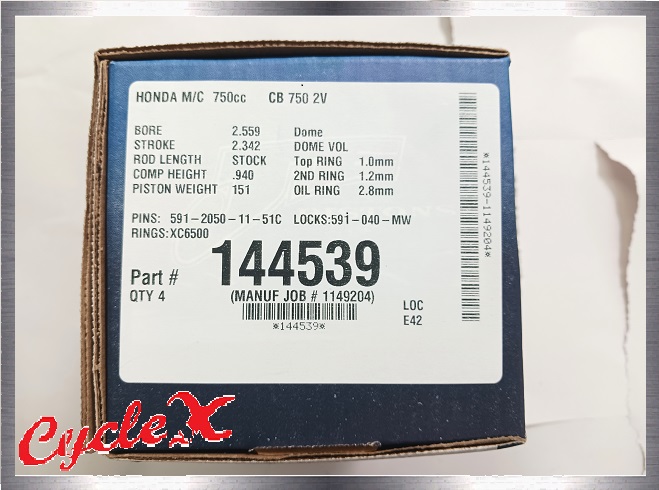

Pistons:

High quality JE brand pistons 10.5 compression ratio. (new)

Cylinder:

Good fins. Freshly blasted (ready for paint). Surfaced.

(6) 12mm long Heli-coils for added strength. Bored and honed. Nice.

# COMBO 100 $ 1138.00

Call or E-mail for ordering/availability.

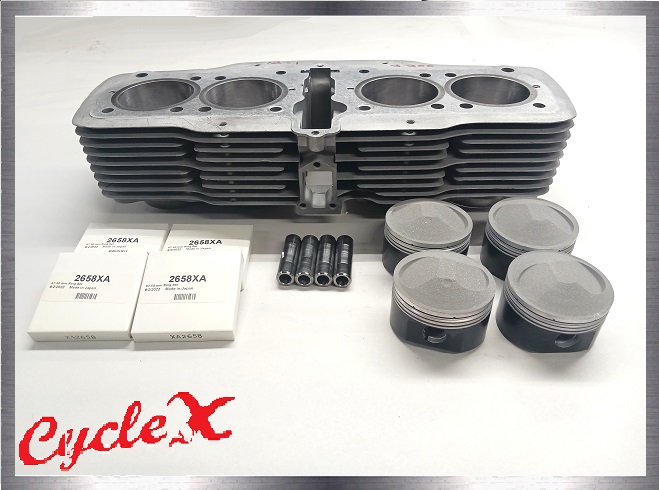

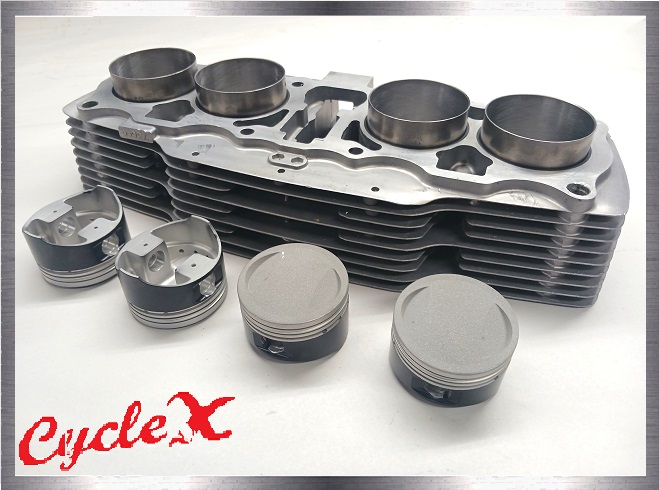

Honda cb750 sohc thru 1978 ..... 900cc piston and cylinder combo.

Here is a Honda cb750 sohc cylinder and piston combo freshly machined to a 900cc.

Parts:

Wiseco 67.5 piston kit with an advertised compression ratio of 10.25 to 1. (nice street or racing ratio)

Note:

The pistons have been run on our test stand for approx. 11 heat cycles before coatings were applied so technically, they can't be advertised as new.

The pistons were double coated with an armor glide skirt coating and a dome coating to repel unwanted heat.

Wiseco XC ring set, pins and circlips. Big-bore stepped cylinder sleeves.

The sleeves are stepped so upper-case boring is generally not needed. Cylinder with good fins as a core.

Machine work:

Remove stock sleeves. Blast cylinder for inspection. Surface to clean-up the bottom side of the cylinder.

Bore the cylinder for big-bore sleeves. Hone the cylinder to finished size. Heat and install big-bore sleeves.

Surface the top of the cylinder. Bore and hone to finished size.Machine "O" ring areas to original depth.

Sleeve "O" rings installed. (6) longer (12mm) heli-coils have been installed for added strength.

# COMBO 200 $ 1495.00

Call or E-mail for ordering/availability.

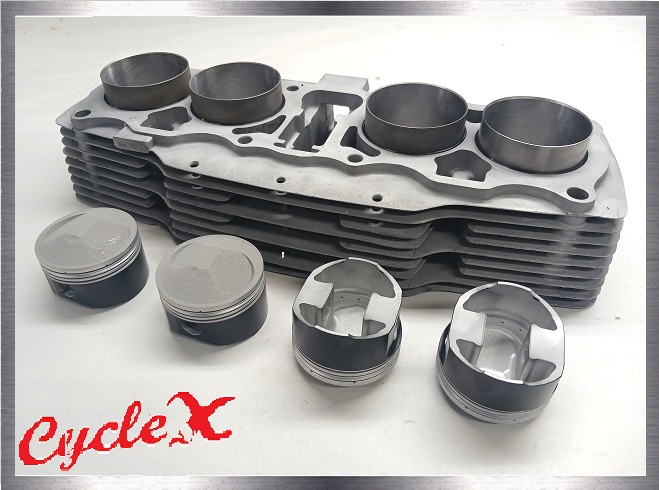

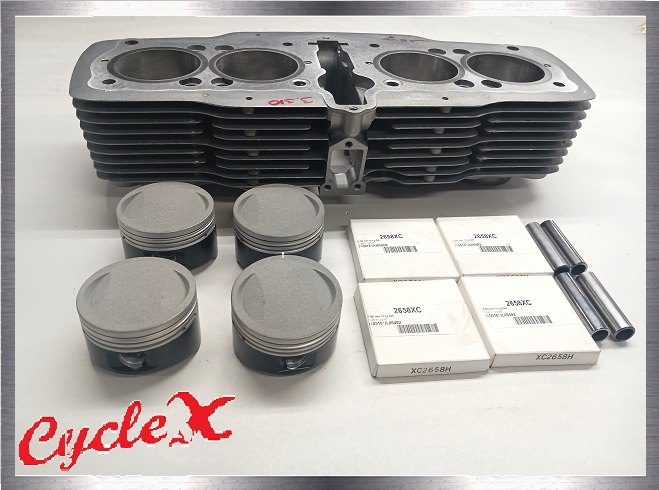

Honda cb750 sohc thru 1978 ..... 900cc piston and cylinder combo.

Here is a Honda cb750 sohc cylinder and piston combo freshly machined to a 900cc.
12 to 1 compression ratio.

Parts:

JE brand 67.5 piston kit that has been machined for maximum performance when used with a K model head and performance camshaft.

Also, Perfect compression ratio for the larger combustion chamber 77-78 "big valve" heads with a camshaft.

Note:

The pistons have been run on our test stand for approx. 11 heat cycles before coatings were applied so technically, they can't be advertised as new.

The pistons were double coated with an armor glide skirt coating and a dome coating to repel unwanted heat.

JE XA ring set, pins and circlips.

Big-bore stepped cylinder sleeves. The sleeves are stepped so upper-case boring is generally not needed.

Cylinder with good fins as a core.

Machine work:

Remove stock sleeves. Blast cylinder for inspection. Surface to clean-up the bottom side of the cylinder.

Bore the cylinder for big-bore sleeves. Hone the cylinder to finished size. Heat and install big-bore sleeves.

Surface the top of the cylinder. Bore and hone to finished size. Machine "O" ring areas to original depth.

Sleeve "O" rings installed. (6) longer (12mm) heli-coils have been installed for added strength.

# COMBO 300 $ 1495.00

Call or E-mail for ordering/availability.

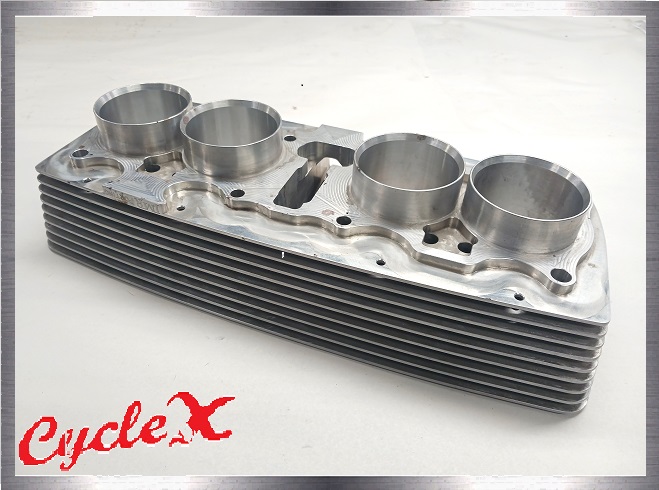

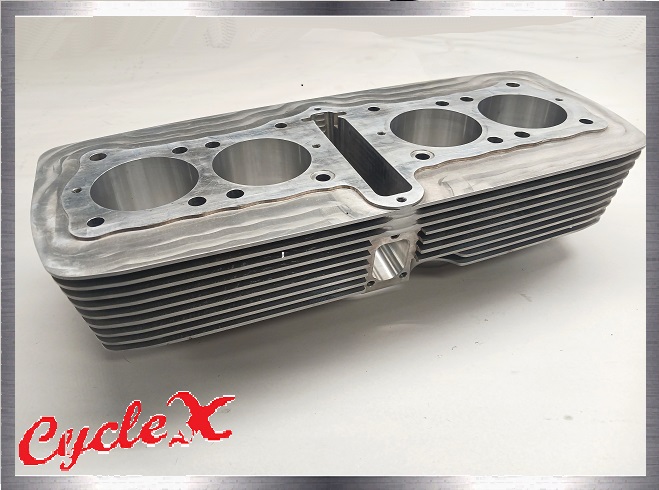

"New" Big-block cylinder.... Honda cb750 sohc

Features:

Over size cooling fins. Solid construction for going to maximum bore sizes.

The cylinders solid construction also aids in stabilizing the engine cases. The cylinder is machined to start at a 70mm bore size (970cc)

Note:

Designed to be Nikasil plated up to 72mm piston size. Can be sleeved for even larger bore sizes. Bare block.

# COMBO 400 $ 2900.00

Call or E-mail for ordering/availability. 2 Available

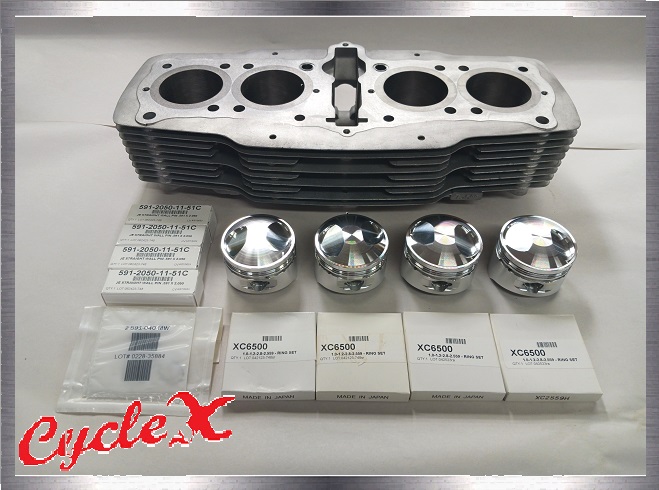

JE 65mm. 836cc 12.5 to 1 (Combo)
Ceramic dome coated.
Armor-glide skirt coated.
XC Wiseco rings with total seal "gapless" 2nd ring.
Great fins.
Deluxe bore and hone.
Good choice for 77-78 F2 super-sport or high performance K models.
Lightly used. Comes with wrist pins & circlips.

$1138.00 parts and labor

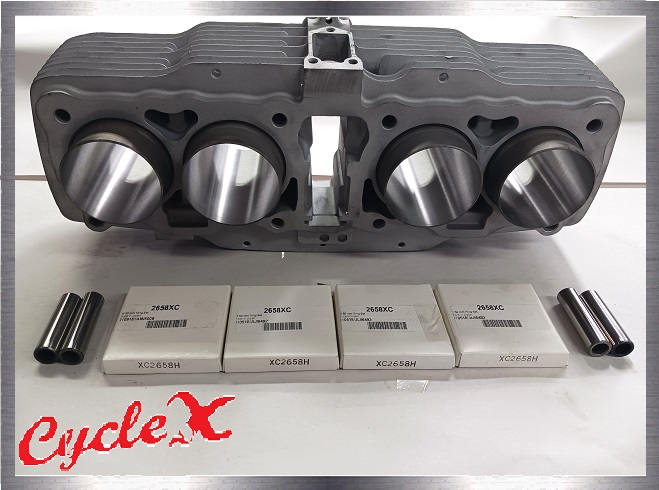

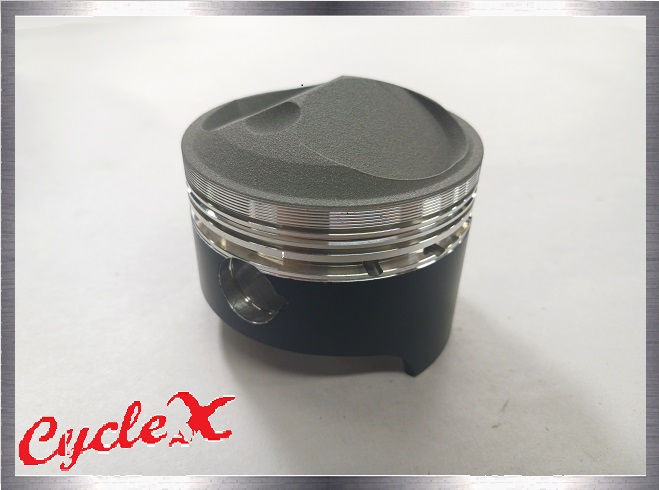

COMBO #500

Wiseco 67.5mm. 900cc 10.25 to 1 (Combo)
"New"
Armor glide skirt coated.
Wiseco XC rings. Comes with wrist pins & circlips.
Big-bore sleeves.

Cylinder:
Blasted.
Machined for big bore liners.
Surfaced, bored and honed.

Note:
Cylinder work will be done when the #400 kit is sold. The cylinder could be finished in 2 to 3 days.

$1489.00 parts and labor
COMBO #600

Wiseco 65mm 836cc 11 to 1 (Combo)
"New"
Uni-brow dome procedure.
Ceramic dome coated.
Armor glide skirt coated.
Wiseco XC rings with Total seal "gapless" 2nd ring.
Deluxe bore and hone. Comes with wrist pins & circlips.
Great fins.

$1138.00 parts and labor
COMBO #700 - SOLD, BUT CAN BE DUPLICATED

JE 65mm 836cc 10.5 to 1 (Combo)
Gently used.
Ceramic dome coated.
Aromor glide skirt coated.
XC rings. Comes with wrist pins & circlips.
Deluxe bore and hone.
Great fins.

$1138.00 parts and labor SOLD, CAN BE DUPLICATED

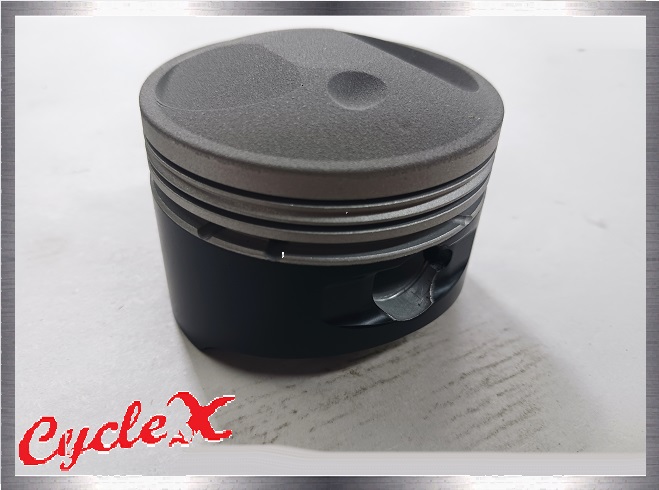

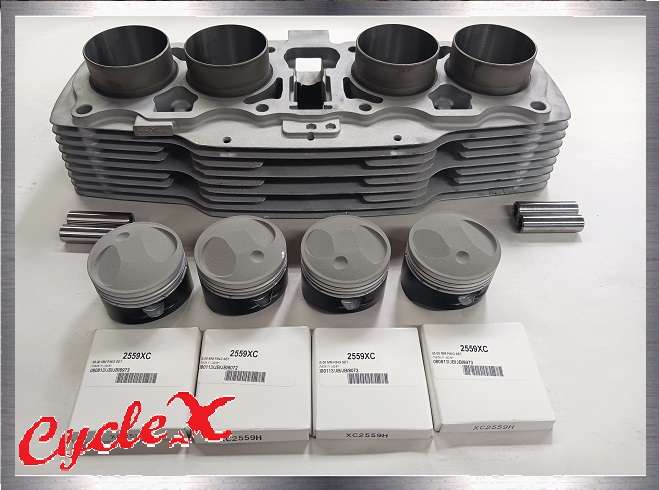

COMBO #800

JE 65mm 836cc 10.5 to 1
Gently used.
Ceramic dome coated.
Armor-glide skirt coated. Comes with wrist pins & circlips.
Wiseco XC rings with Total seal "gapless" 2nd ring.
Deluxe bore and hone.
Great fins.

$1138.00.00 Parts and labor Sold, Can Be Duplicated
COMBO #900

Wiseco. CycleX 12.5 to 1 Race piston and cylinder combo (1mm over)
Used by many racers worldwide.
New.
Piston details are on the piston section of the website.
Deluxe bored and honed.
Oil feed "O" ring modification.

$1350.00 parts and labor
COMBO #1000 - SOLD, BUT CAN BE DUPLICATED

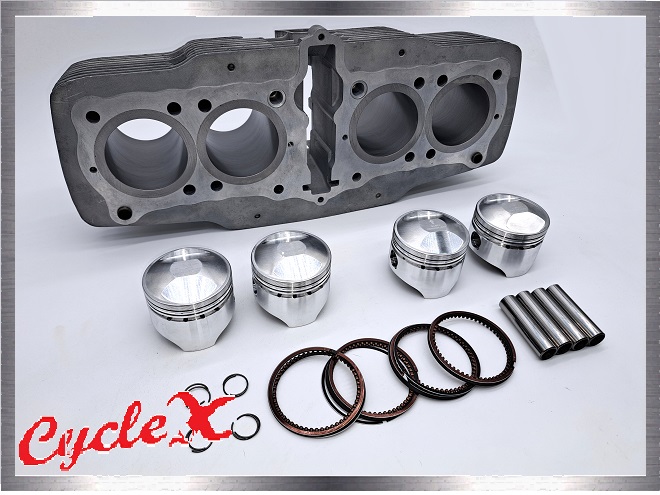

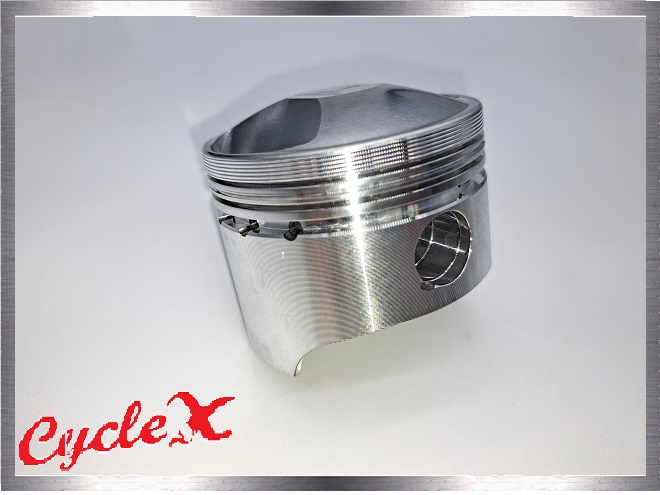

CycleX 811cc piston kits. The perfect medium size big bore kits. "NEW"

Some people think that boring a Honda cb750 cylinder to 65mm (836cc) makes the sleeves a bit thin... sometimes we think that also.
Introducing the CycleX, Wiseco 64mm (811cc) medium big bore kits.
Still retains nice cylinder wall thickness.
155 grams (bare weight)
Generous valve pocket relief for larger camshafts.
10.25 compression ratio.
New.
Great piston kit!!!

So,
Cylinder has perfect fins.
Blasted, surfaced, heli-coiled, feed "O" ring modification, bored and honed.

CycleX piston and cylinder combo kit.

$1225.00 parts and labor

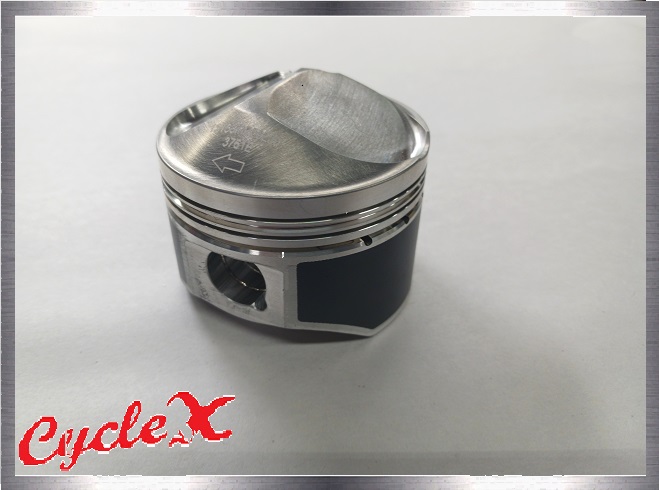

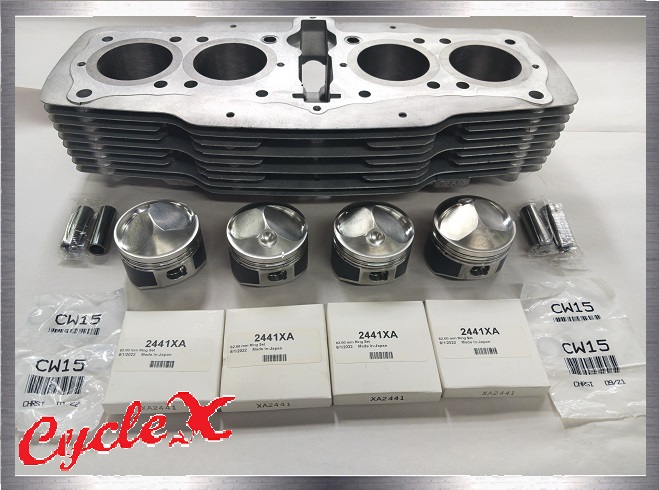

COMBO #1100

61MM Standard bore go-fast kit. (piston and cylinder combo)
This kit was developed for smaller 60mm bore Hondas with mild camshafts in mind.
Modified valve pockets for camshafts.
New.
Proper compression increases to work camshafts. (required to get the full benefits of most camshafts)
Ceramic dome coated.
Armor glide skirt coated.
Great kit!
Deluxe bore and hone.
Oil feed "O" ring modification.
Ready to go!
COMBO #1200 - SOLD, CAN BE DUPLICATED
CALL FOR PRICE AND AVAILABILITY

JE 65mm 836cc 10.5 to 1 (piston and cylinder combo)

New.
XC rings, wrist pins & circlips.
Deluxe bore and hone.
Great cylinder fins.
Ready to go!

$1138.00 parts and labor

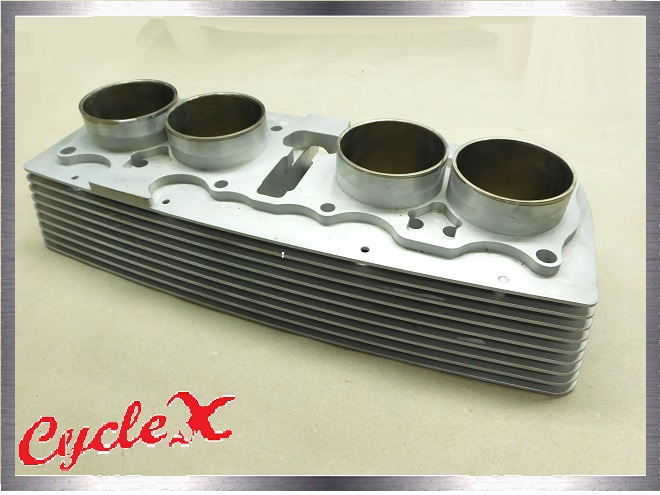

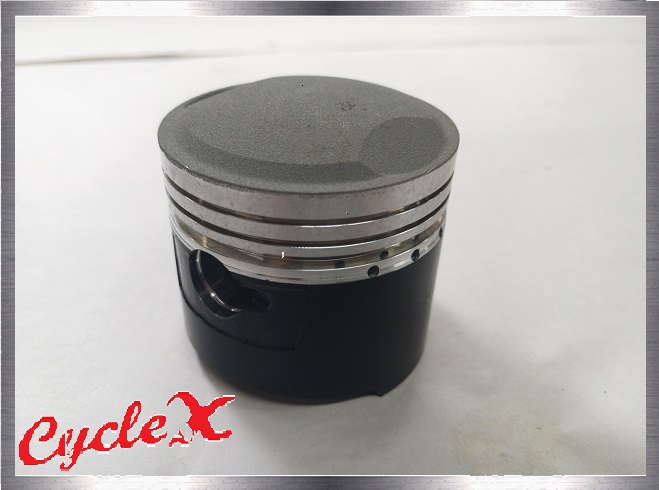

Combo # 1300

CycleX ultimate piston and cylinder combo

Note:
Many people believe the stock cylinder sleeves get to thin when boring to 65mm ..... These "ultimate" cylinders are the best procedures ever done on a Honda cb750 cylinder ..... Heres why!

Includes:
JE brand 12.5 compression ratio piston set.
65mm 836cc with XC rings.
Ceramic dome coatings to repel unwanted heat.
Armor-glide coated piston skirts.

Note:
Many people believe the stock cylinder sleeves get to thin when boring to 65mm ..... These "ultimate" cylinders are the best procedures ever done on a Honda cb750 cylinder ..... Heres why!

We machine special cylinder sleeves to the proper length depending on the piston choice ..... some performance pistons are nearly .400 shorter than stock.

Also,
We were able to gain .080 of cylinder wall thickness with our sleeves.
The cylinder sleeves have the perfect outside diameter and do not "break-through" to atmosphere between 1&2 and 3&4 cylinders when boring the block.

We start with a prefered early cylinder.
The stock cylinder sleeves are removed.
The cylinder is blasted and checked for flaws.
The cylinder is surfaced on the bottom.
The cylinder block is bored and honed to accept the performance sleeves.
The "O" ring grooves are re-machined on the bottom side.
The cylinder block is heated and the special sleeves are installed.
The cylinder block top is then surfaced.
The newly installed sleeves are bored and honed to the selected pistons.
(6) 12mm long Heli-coils are installed for strength.
The oil feed "O" ring modification is completed to keep the "O" rings from "walking"
Whew! That was alot of work.
The perfect 836cc cylinder!

Note:
Engine top case needs boring for the ultimate cylinder.
$1800.00 parts and labor. Call or email.

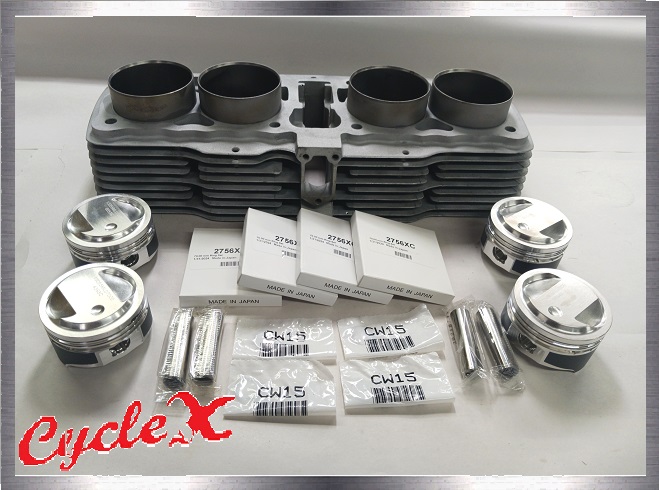

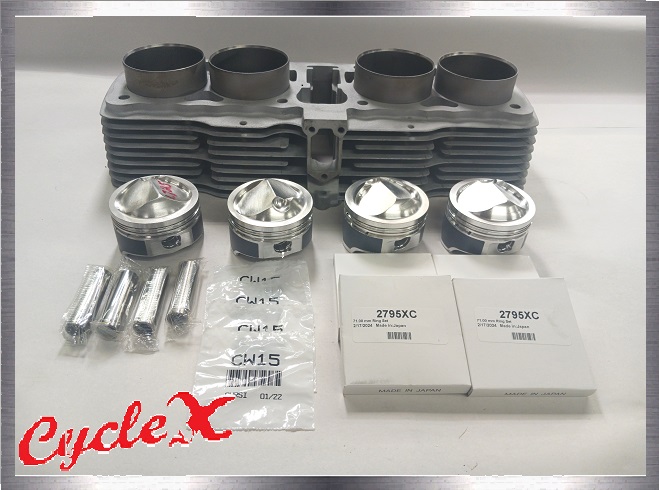

Combo # 1400

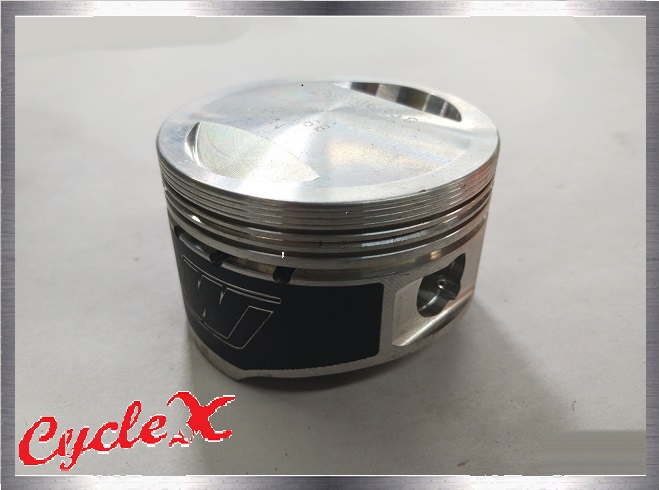

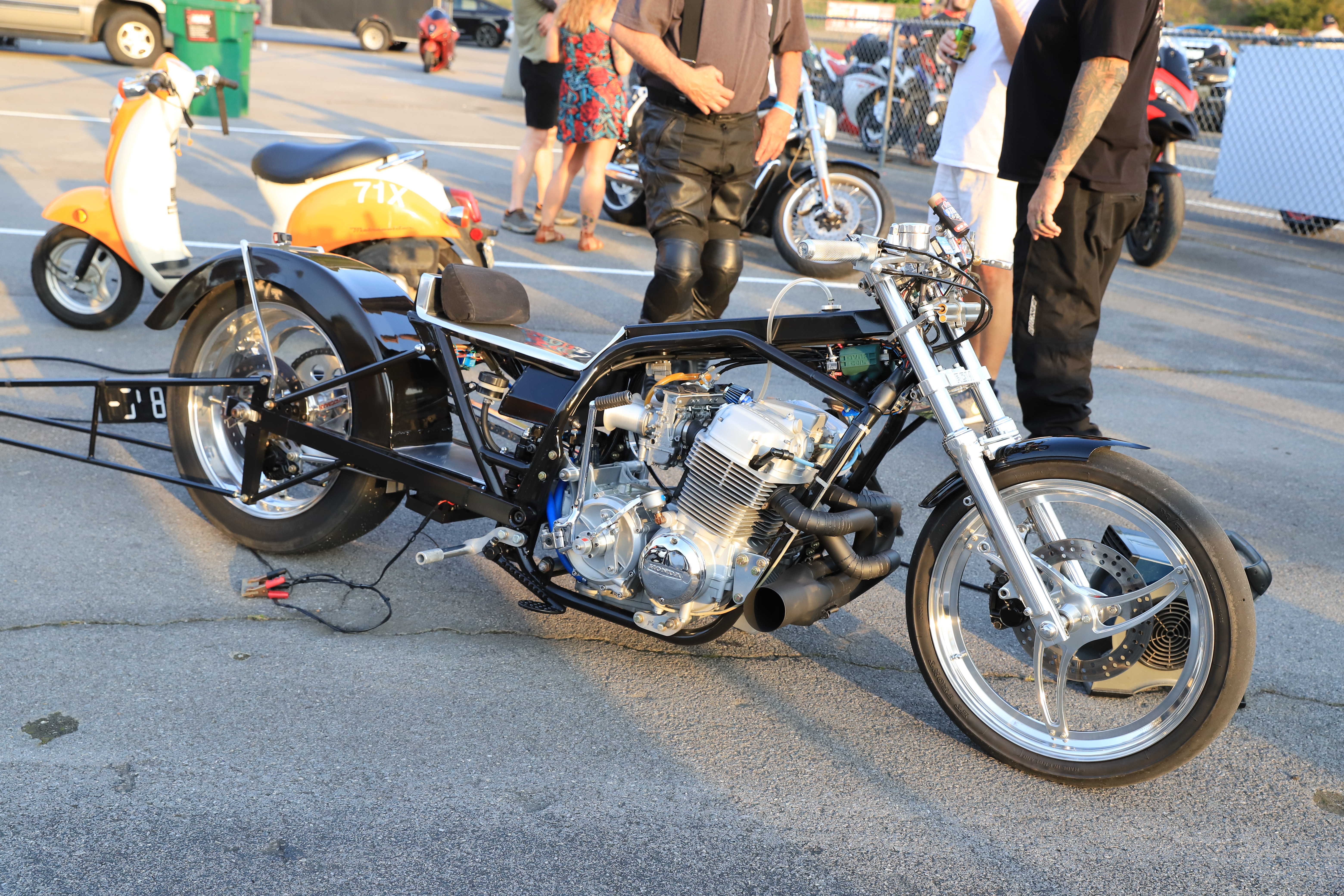

Quickest current Honda cb750 drag bike uses the CycleX 71mm piston kit.

This "small motor" 997cc drag bike recently turned a 10.15 on a un-prepped track during a test session.
In case your wondering ..... no power adders (Nitrous etc) all motor.

Pistons:
Wiseco CycleX 71mm High dome.
Clearance 0.00190
Comp. Ht. .09255
2795 XC rings.
Armor glide skirt coated.
New.

Cylinder:
Inspected.
Blasted.
Stock sleeves removed.
Surfaced base area.
Bored and honed for larger sleeves.
Machined for new sleeve "O" rings
Sleeves installed.
Surfaced head gasket area.
Bored and honed.
Hard blocked between 1&2 and 3&4 cylinders.
Oil feed "O" ring modification.
(6) 6mm 12mm long Heli coils

$ 1900.00 parts and labor

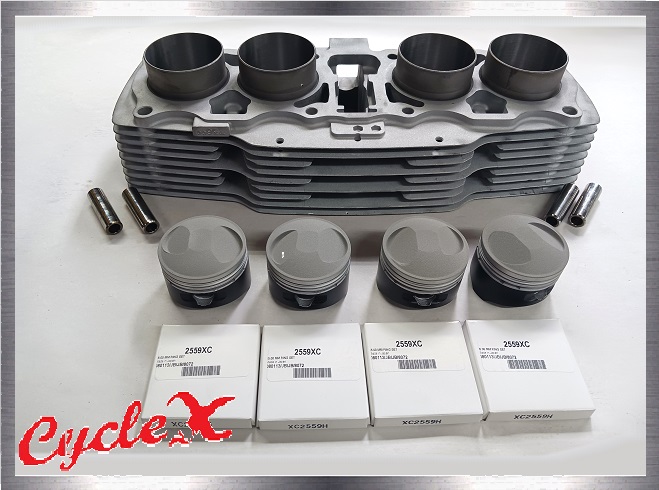

Combo # 1500

Wiseco CycleX 70mm 970cc piston and cylinder combo.

These 970cc piston designs are celebrating a 15 year birthday.
Proven performance.

Pistons:
Wiseco/CycleX 70mm 970cc pistons.
Armor-glide coated skirts.
Clearance: 0.00190
Comp. Ht: 0.9255
2756XC rings.
New.

Sleeves:
The highest level in quality.

Cylinder:
Inspected.
Blasted.
Stock sleeves removed.
Surfaced base area.
Bored and honed for larger sleeves.
Machined for new sleeve "O" rings
Sleeves installed.
Surfaced head gasket area.
Bored and honed.
Hard blocked between 1&2 and 3&4 cylinders.
Oil feed "O" ring modification.
(6) 6mm 12mm long Heli coils

$1499.00 parts and labor

Combo # 1600

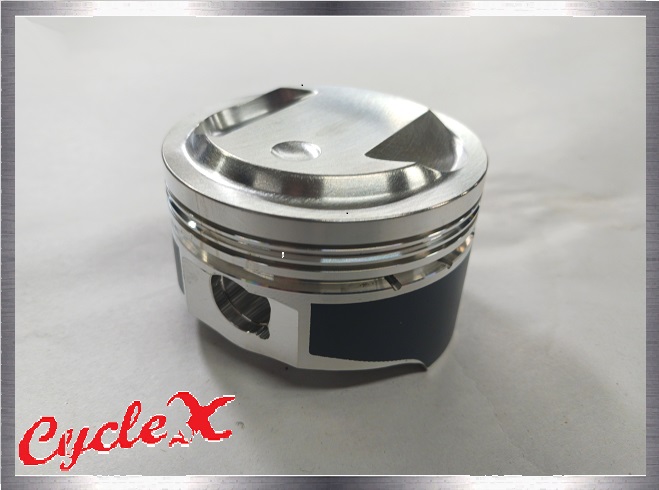

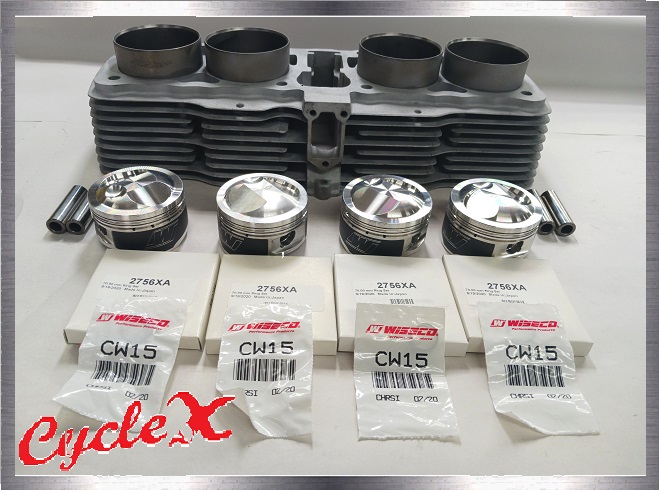

Max performance 1060cc 70mm Stroker piston and cylinder combo.
There have been many attempts and theory's on building stroker motors ..... shorter connecting rods and spacer plates under the cylinder to name a couple of things.
These Wiseco/CycleX stroker pistons are the correct way to do it ..... relocate the wrist pin hole up-wards.

Pistons:
CycleX cb750 F/K BB Stroker 2.756
Clear: 0.00200
Comp. Ht 0.8074
2756XA rings.
New.
69mm or 70mm crankshafts.
Expert machining and assembly required.

Cylinder:
Inspected.
Blasted.
Stock sleeves removed.
Surfaced base area.
Bored and honed for larger sleeves.
Machined for new sleeve "O" rings.
Modified sleeves.
Sleeves installed.
Surfaced head gasket area.
Bored and honed.
Hard blocked between 1&2 and 3&4 cylinders.
Oil feed "O" ring modification.
(6) 6mm 12mm long Heli coils

CALL FOR PRICE AND AVAILABILTY

Combo # 1700

Wiseco 836cc 65mm piston and cylinder combo.
These 10.25 to 1 piston kits have been around for decades.
New.
We are offering these pistons with a deluxe bored and honed cylinder for your go-faster Honda cb.

$1138.00 parts and labor.

Combo # 1800 - SOLD, BUT CAN BE DUPLICATED

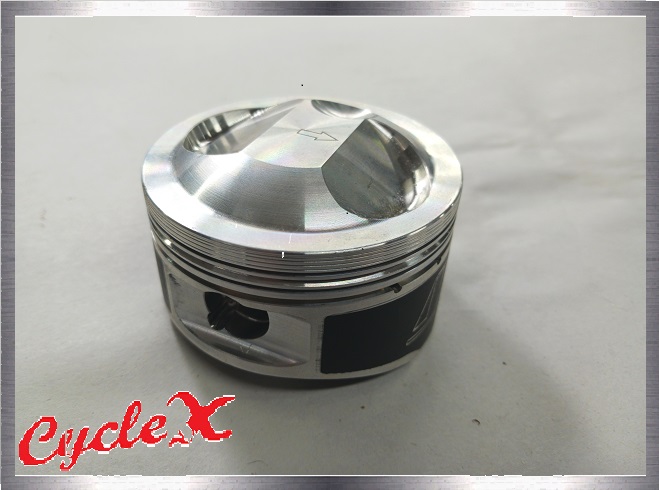

The perfect "small bore" performance piston and cylinder combo.
1mm over pistons with valve pocket modifications' for larger camshafts.
Speaking of camshafts .... we have determined the perfect compression increase to work with camshafts.
Dependable, big power increase and pump fuel friendly.

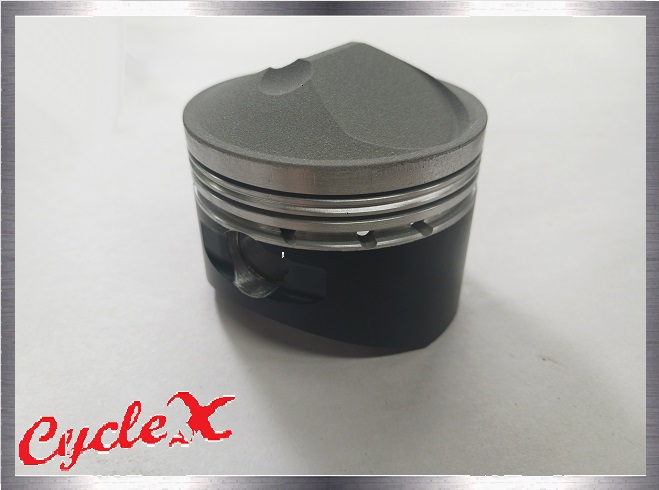

Ceramic dome coating to repel unwanted heat.
Armor glide skirt coated .... just in case!

Perfect finned cylinder with our deluxe bore and hone procedure.

Great kit!!!

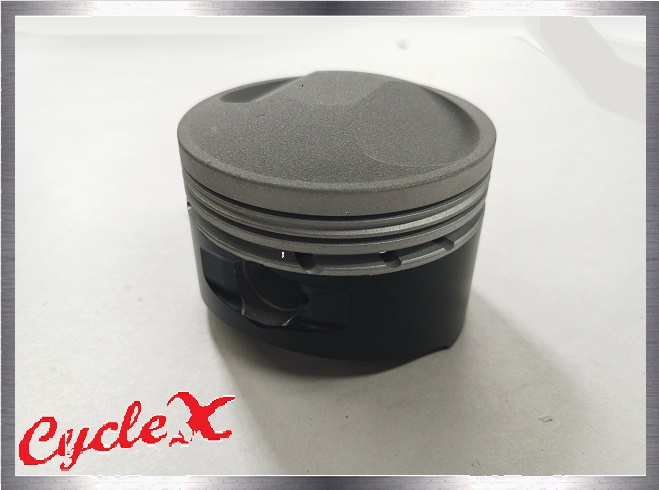

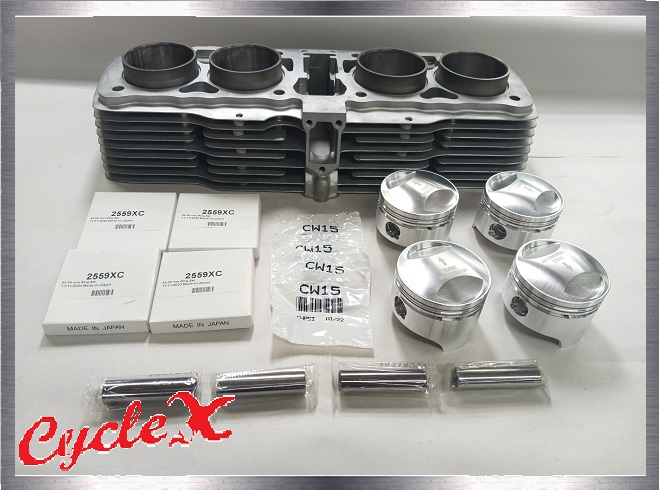

C Combo # 1900 CALL FOR PRICE AND AVAILABLILTY

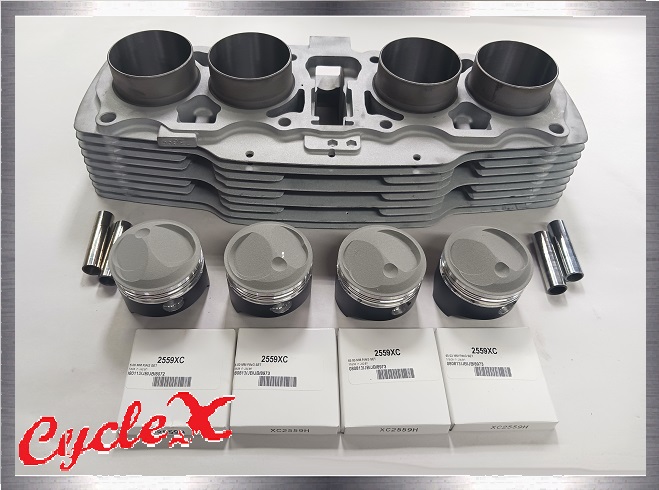

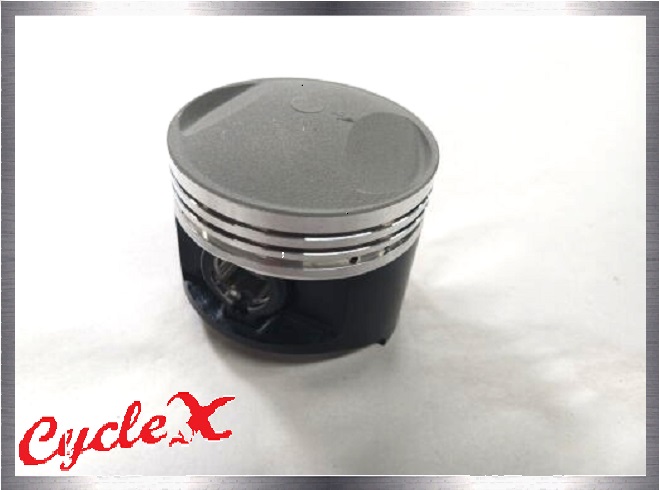

Honda cb750 plated big-block cylinder with MTC pistons

Kit includes:
71mm MTC alcoa forged pistons (10.5 to 1)
Wiseco rings #2795XC
Wrist pins sized for buttons.

Solid "big finned" cylinder for street or competition.
Pistons sized and fitted.
Cylinder plating by Miiennium.
All new!

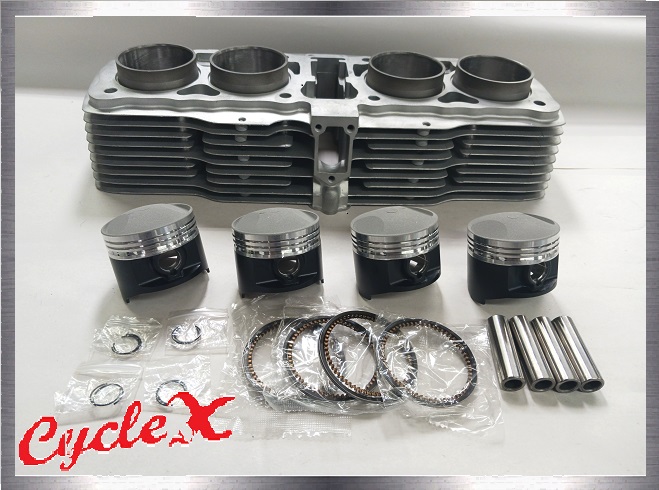

# COMBO 2000 $3800.00

HOME	Engine Parts	Machine Work & Services	Exhaust	Carb Systems
Mufflers and Accessories	Refurbished Heads & Cylinders	Frame, Fork Tubes, & Rear Shocks	Electrical & Ignition	Chain & Sprocket
Levers & Cables	Oil Related	Trikes/Trike Frames	Wheels & Accessories	Chrome & Chrome Exchange
Sales Page	Honda CB 500 / 550 Products	DOHC Products	Harley Twin Carb System & Stuff	Speedos & Tachs
Tech Tips	Our Customers	Instructions	Cycle X Drag Bike	Cycle X Racing

A 3.99% customer service charge is applied to all phone orders.

If ordering via phone, please also provide the part # of any products you are interested in for faster and more accurate service.

If you encounter a (rare) broken button as you're trying to add parts to your cart (going to PayPal summary instead of your cart or not opening PayPal at all) or anything else of concern, please call us to report it. We'll try to have it fixed for your convenience within the next 5-10 minutes. Afterwards, refresh the page and try again.

It is the sole and exclusive responsibility of the purchaser to determine the suitability of any part, product or work for his or her use.
The purchaser shall assume all legal, personal injury risk and liability and all other obligations, duties and risks therewith. There is no warranty on High Performance products.

Click to go back to our home page

Cycle X Global Headquarters

6246 US Hwy 51 South

Hazelhurst, WI 54531

Phone: 715-356-7346

Email: hotrodcyclex@gmail.com
